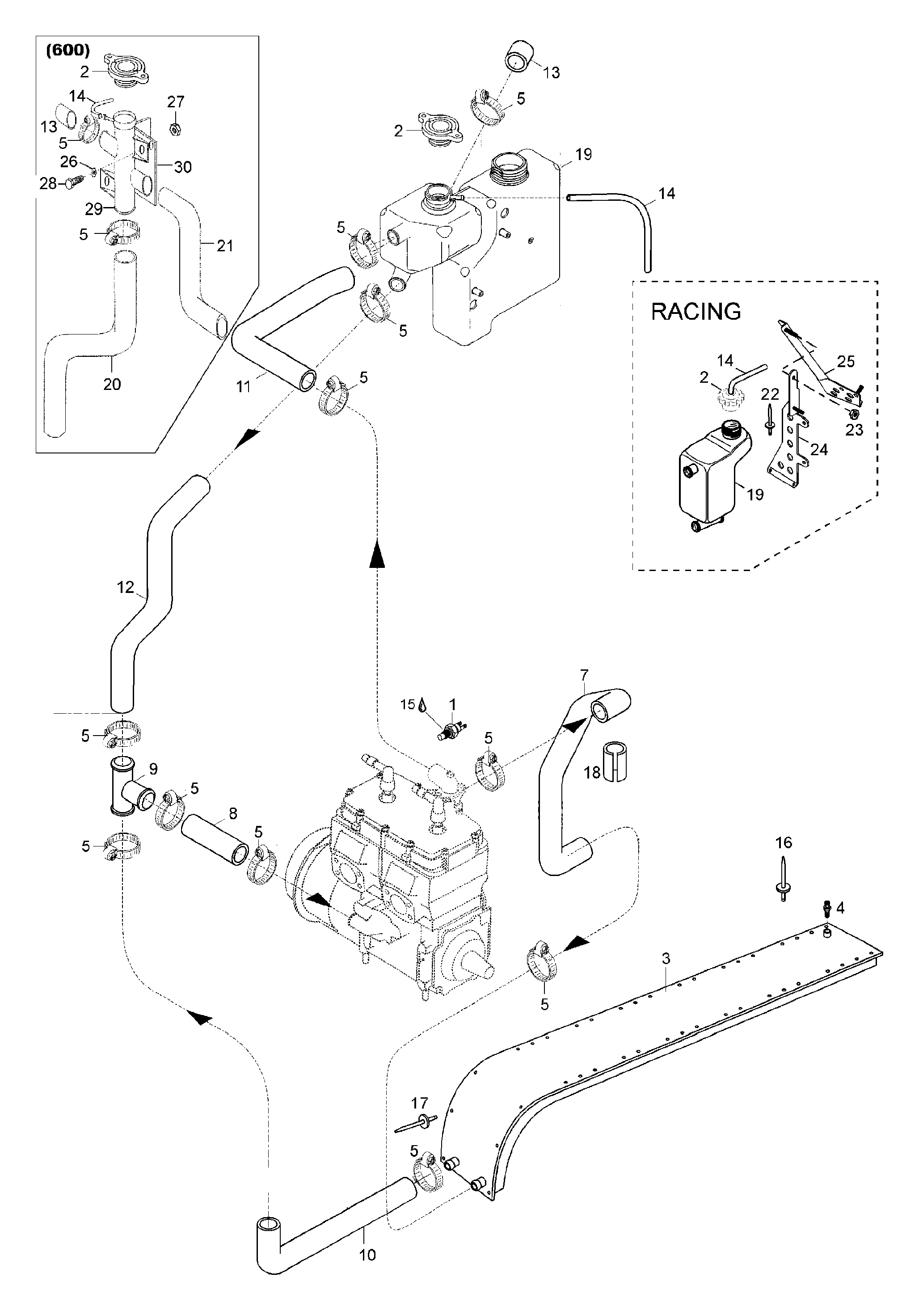

01- Radiator, Hoses для BRP Lynx Rave Big Pipe X - 2000
-
№АртикулНазвание
-
1512047000 Sender temperatureSender temperature
-
2414684700 Cap pressureCap pressure
-
35240977 RadiatorRadiator
-
4414989800 Airing screwAiring screw
-
527003 Hose clampHose clamp
-
75244467 Radiator Outlet HoseRadiator Outlet Hose
-
85441471 HoseHose
-
9414619900 “T”fitting“T”fitting
-
105341186 HoseHose
-
115443708 HoseHose
-
125343706 HoseHose
-
135441703 Hose plugHose plug
-
1439038 Overflow hose 9.5/6.5Overflow hose 9.5/6.5
-
15413702300 Loctite 592, 50mlLoctite 592, 50ml
-
1636083 RivetRivet
-
1736489 RivetRivet
-
19519000014 Coolant/oil-tankCoolant/oil-tank
