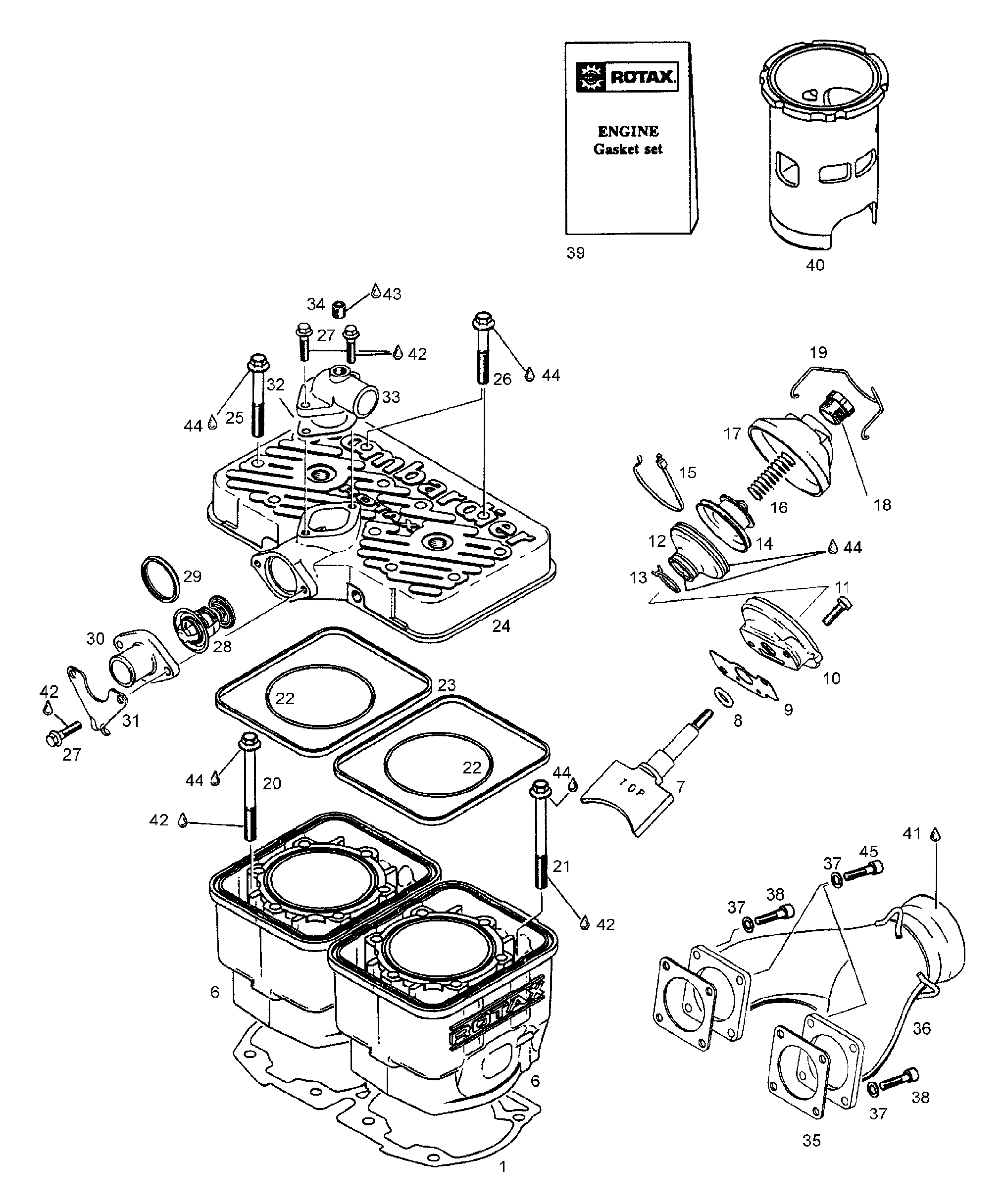

01- Cylinder для BRP Lynx Rave Big Pipe X - 2000
-
№АртикулНазвание
-
1420931230 Double gasket, 0.3 mmDouble gasket, 0.3 mm
-
1420931231 Double gasket, 0.4 mmDouble gasket, 0.4 mm
-
1420931233 Double gasket, 0.5 mmDouble gasket, 0.5 mm
-
1420931232 Double gasket, 0.6 mmDouble gasket, 0.6 mm
-
1420931236 Double gasket, 0.7 mmDouble gasket, 0.7 mm
-
1420931234 Double gasket, 0.8 mmDouble gasket, 0.8 mm
-
6420923700 Cylinder with sleeve assCylinder with sleeve ass
-
7420854320 Exhaust valveExhaust valve
-
8420430110 O-ringO-ring
-
9420230256 GasketGasket
-
10420253275 Valve rod housingValve rod housing
-
11420241236 Allen screw M6x16Allen screw M6x16
-
12420260721 BellowsBellows
-
13420838190 Clamp, 21 mmClamp, 21 mm
-
14420854447 Exhaust valve pistonExhaust valve piston
-
15420251920 ClampClamp
-
16420239948 Compression springCompression spring
-
17420911551 Valve coverValve cover
-
18420241220 Adjustment screwAdjustment screw
-
19420838082 Spring clipSpring clip
-
20420940126 Screw M8x100Screw M8x100
-
21420941511 Screw M8x105Screw M8x105
-
22420931220 O-ringO-ring
-
23420850040 Rubber ringRubber ring
-
24420913545 CylinderheadCylinderhead
-
25420841306 Screw M8x65Screw M8x65
-
26420941621 Screw M8x56.5Screw M8x56.5
-
27420940566 Screw M6x20Screw M6x20
-
28420922515 Thermostat 42 degr.Thermostat 42 degr.
-
29420931270 GasketGasket
-
30420922025 Outlet socketOutlet socket
-
31420851347 Support plateSupport plate
-
32420850336 Gasket 1.0mmGasket 1.0mm
-
33420922062 Outlet socketOutlet socket
-
34420240480 Plug screwPlug screw
-
35420850552 GasketGasket
-
36420973982 Exhaust manifoldExhaust manifold
-
3720052 Lock washerLock washer
-
3840276 Allen screw M6x25Allen screw M6x25
-
39420997802 Gasket setGasket set
-
40420923201 Spare cylinder sleeveSpare cylinder sleeve
-
41420297434 Loctite 15378Loctite 15378
-
42420899785 Loctite 221/viol.Loctite 221/viol.
-
43420899784 Loctite 574/orangeLoctite 574/orange
-
4540031 Screw M6x25Screw M6x25
