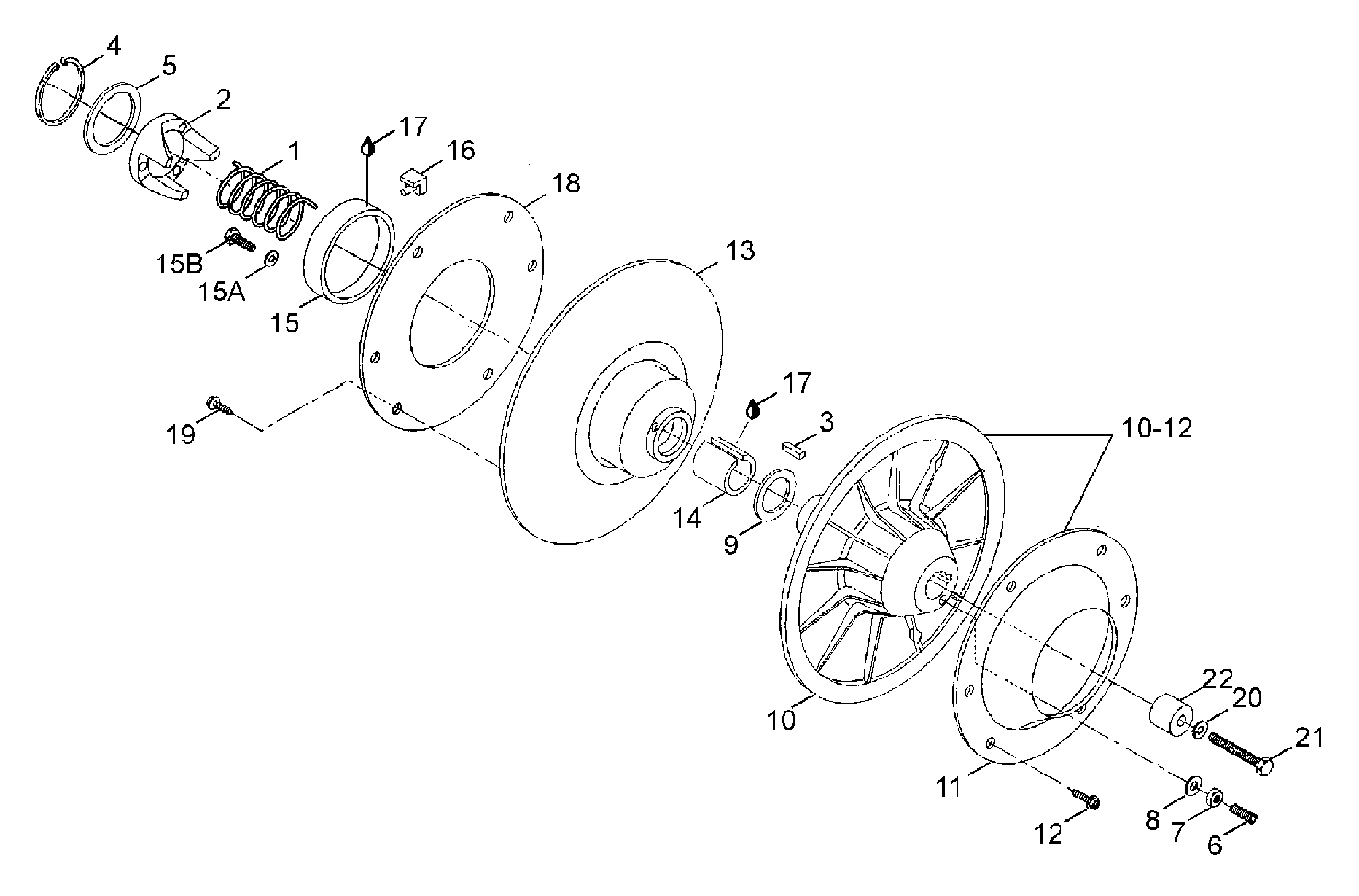

05- Driven Pulley для BRP Lynx Rave Big Pipe X - 2000
-
№АртикулНазвание
-
1414558900 Spring, beigeSpring, beige
-
2417126343 Cam 50 degr.Cam 50 degr.
-
3414820800 KeyKey
-
4371903100 CirclipCirclip
-
5504141800 WasherWasher
-
6206263044 ScrewScrew
-
7232061414 NutNut
-
8420245370 WasherWasher
-
9504141900 Thrust washerThrust washer
-
10504142200 Fixed half pulley assy. Includes items 10 thru 12Fixed half pulley assy. Includes items 10 thru 12
-
10504141600 Fixed half pulleyFixed half pulley
-
11504142000 CupCup
-
12210251180 Hex. tapping screwHex. tapping screw
-
13504143200 Sliding pulley assy. Includes items 13 thru 18Sliding pulley assy. Includes items 13 thru 18
-
14415011200 BushingBushing
-
15860423000 Bushing garlock kit. Includes items 15 thru 15BBushing garlock kit. Includes items 15 thru 15B
-
15414876600 Bushing garlockBushing garlock
-
15a399910000 WasherWasher
-
15b732600022 Self tapping screwSelf tapping screw
-
16414918000 Cam slide shoeCam slide shoe
-
17413703100 Loctite 609 10ccLoctite 609 10cc
-
18504142100 RingRing
-
19210251180 Hex. tapping screwHex. tapping screw
-
2020014 WasherWasher
-
2140009 Screw M8x50Screw M8x50
-
225441472 SpacerSpacer
