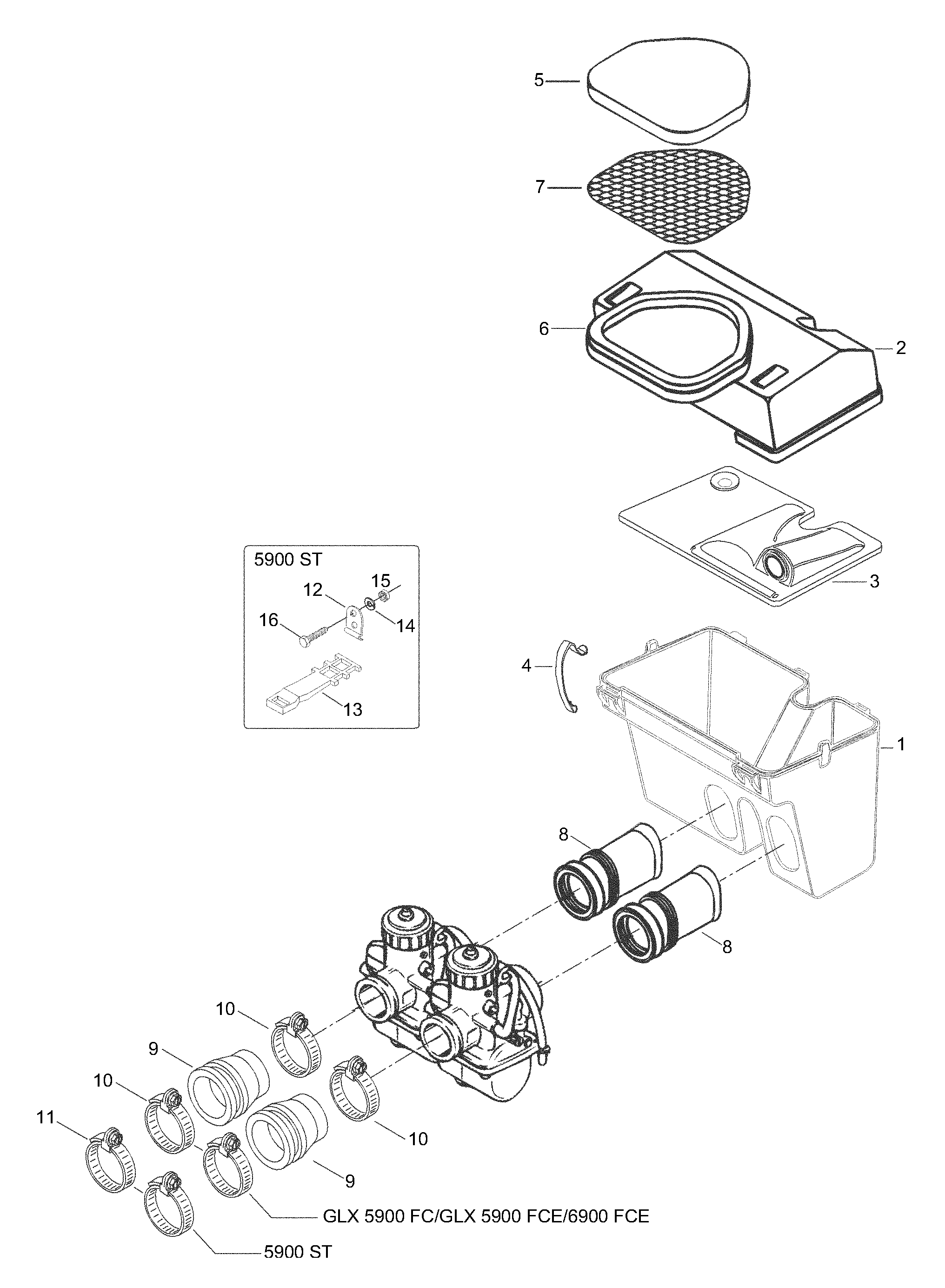

01- Air Silencer для BRP Lynx 5900 FC - 2001
-
№АртикулНазвание
-
15142751 Bottom of airboxBottom of airbox
-
25142786 Cover for airboxCover for airbox
-
35344795 Pipe platePipe plate
-
45442836 Locking springLocking spring
-
55342958 FilterFilter
-
65342959 Sealing foamSealing foam
-
75342960 Support grillSupport grill
-
85142626 Fastening rubberFastening rubber
-
95342627 Fastening rubberFastening rubber
-
10414532700 ClampClamp
