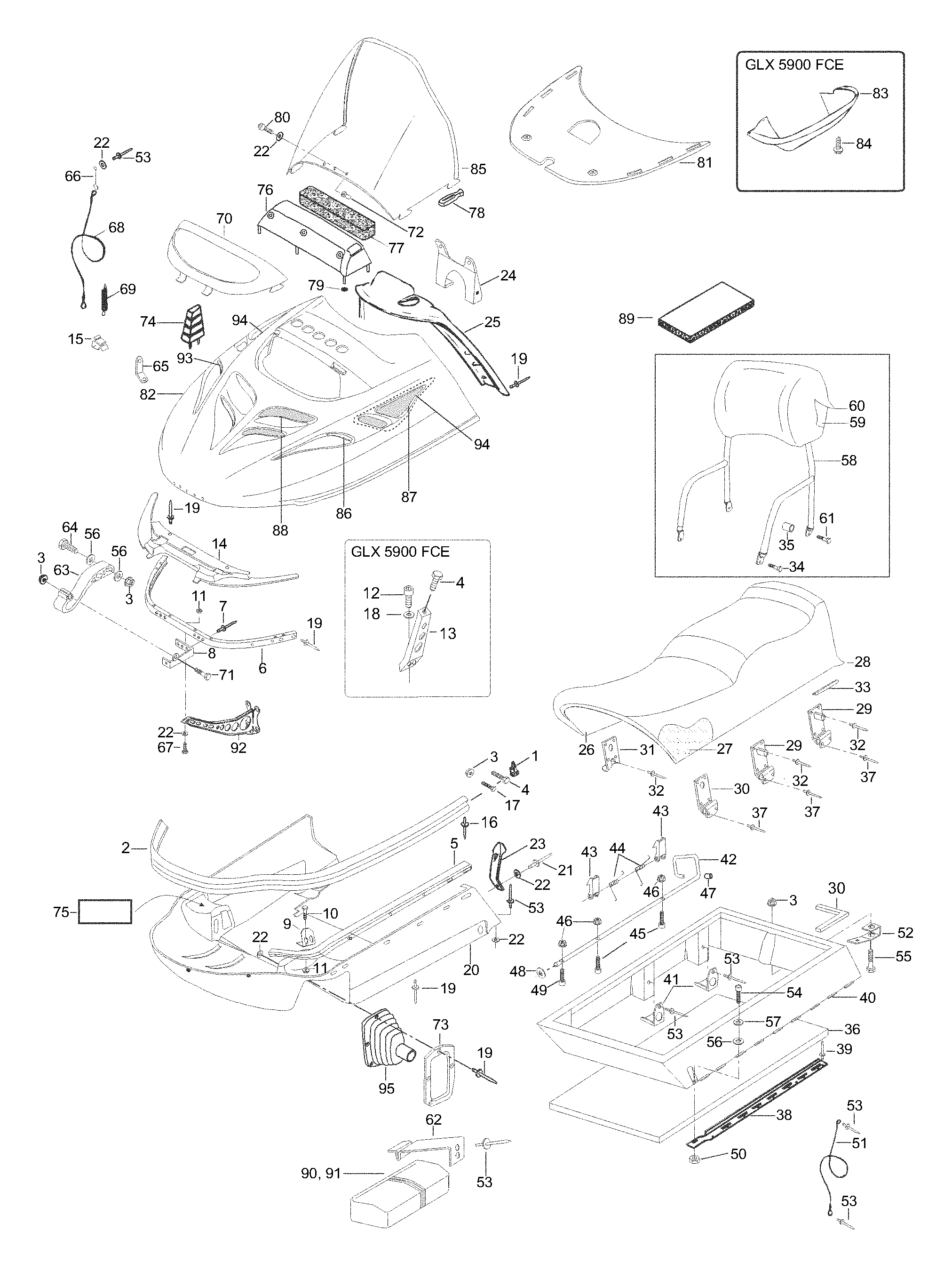

09- Hood для BRP Lynx 5900 FC - 2001
-
№АртикулНазвание
-
1549096L Plug L.H.Plug L.H.
-
1549096R Plug R.H.Plug R.H.
-
25242798 BumperBumper
-
333200 Nut M6Nut M6
-
440078 Screw M6x22Screw M6x22
-
55242803 Guide side L.H.Guide side L.H.
-
55242804 Guide side R.H.Guide side R.H.
-
65142799 Front supportFront support
-
736489 RivetRivet
-
85342234 Hinge, R.H.Hinge, R.H.
-
85342345 Hinge, L.H.Hinge, L.H.
-
95443217 Guide shortGuide short
-
1040247 Screw M5x16Screw M5x16
-
1133062 Nut M5Nut M5
-
1240332 Allen screw M6x16Allen screw M6x16
-
135342509 Support for bumperSupport for bumper
-
145142623 Protector for hingeProtector for hinge
-
15414227300 ClipClip
-
1636003 RivetRivet
-
1740031 Screw M6x25Screw M6x25
-
1820052 WasherWasher
-
1936036 RivetRivet
-
205144049 Pan bottomPan bottom
-
2136009 Rivet, blackRivet, black
-
2220008 WasherWasher
-
235342952 Fastening rubberFastening rubber
-
245343120 SupportSupport
-
255344648 Rear hoodRear hood
-
26519394 Bottom of seatBottom of seat
-
275244982 Seat foamSeat foam
-
285244983 CoverCover
-
29549874 Hinge for set ass’yHinge for set ass’y
-
305440581 Hinge for set ass’yHinge for set ass’y
-
31549732 Lock plate weld.Lock plate weld.
-
3236043 RivetRivet
-
335440059 SealSeal
-
3440305 Allen screw M8x20Allen screw M8x20
-
355440665 SleeveSleeve
-
365344621 FoamFoam
-
3736489 RivetRivet
-
385144029 Clip plate R.H.Clip plate R.H.
-
385144028 Clip plate L.H.Clip plate L.H.
-
3936083 RivetRivet
-
405142066 Seat boxSeat box
-
415443661 SupportSupport
-
425344987 Locking rodLocking rod
-
435443664 Lock camLock cam
-
445444439 SpringSpring
-
4540146 Allen screw M4x20Allen screw M4x20
-
4633008 Nut elastic M4Nut elastic M4
-
4728019 PlugPlug
-
4820004 WasherWasher
-
4940144 Allen screw M4x16Allen screw M4x16
-
5033066 Nut M6Nut M6
-
51546777 Retainer cableRetainer cable
-
525444464 Retainer cable lugRetainer cable lug
-
5336005 RivetRivet
-
5440052 Allen screw M6x20Allen screw M6x20
-
5540149 Locking screw M6x3Locking screw M6x3
-
5620009 WasherWasher
-
5720052 SpringwasherSpringwasher
-
585245664 BackrestBackrest
-
59539399 Backrest FoamBackrest Foam
-
605340917 CoverCover
-
6140135 Allen screw M8x30Allen screw M8x30
-
625344443 Toolkit supportToolkit support
-
635343075 HingeHinge
-
6440193 Screw M6x50Screw M6x50
-
655443123 Spring plateSpring plate
-
665446948 BracketBracket
-
685346947 Retainer cableRetainer cable
-
695442675 SpringSpring
-
705246396 Headlamp CoverHeadlamp Cover
-
7140084 Screw M6x45Screw M6x45
-
7228055 Well-nutWell-nut
-
745443136 Wind screen supportWind screen support
-
755443578 Heat protectorHeat protector
-
765142624 Cover intakeCover intake
-
775343135 FilterFilter
-
78570023800 RubberRubber
-
7936084 Locking plateLocking plate
-
8040156 Screw M5x20Screw M5x20
-
815246742 Tween-DeckTween-Deck
-
825146515 RIM-hood pre assyRIM-hood pre assy
-
835146986 Cooling channelCooling channel
-
84414644300 Dart-windshieldDart-windshield
-
855246743 WindshieldWindshield
-
865242672 R.H. lower grillR.H. lower grill
-
865342673 L.H. lower grillL.H. lower grill
-
875242671 R.H. upper grillR.H. upper grill
-
875242670 Upper side grill L.H.Upper side grill L.H.
-
885142669 Grill middleGrill middle
-
89414631900 Foam acousticFoam acoustic
-
905445401 Tool Bag Ass’yTool Bag Ass’y
-
91572036310 Tool bagTool bag
