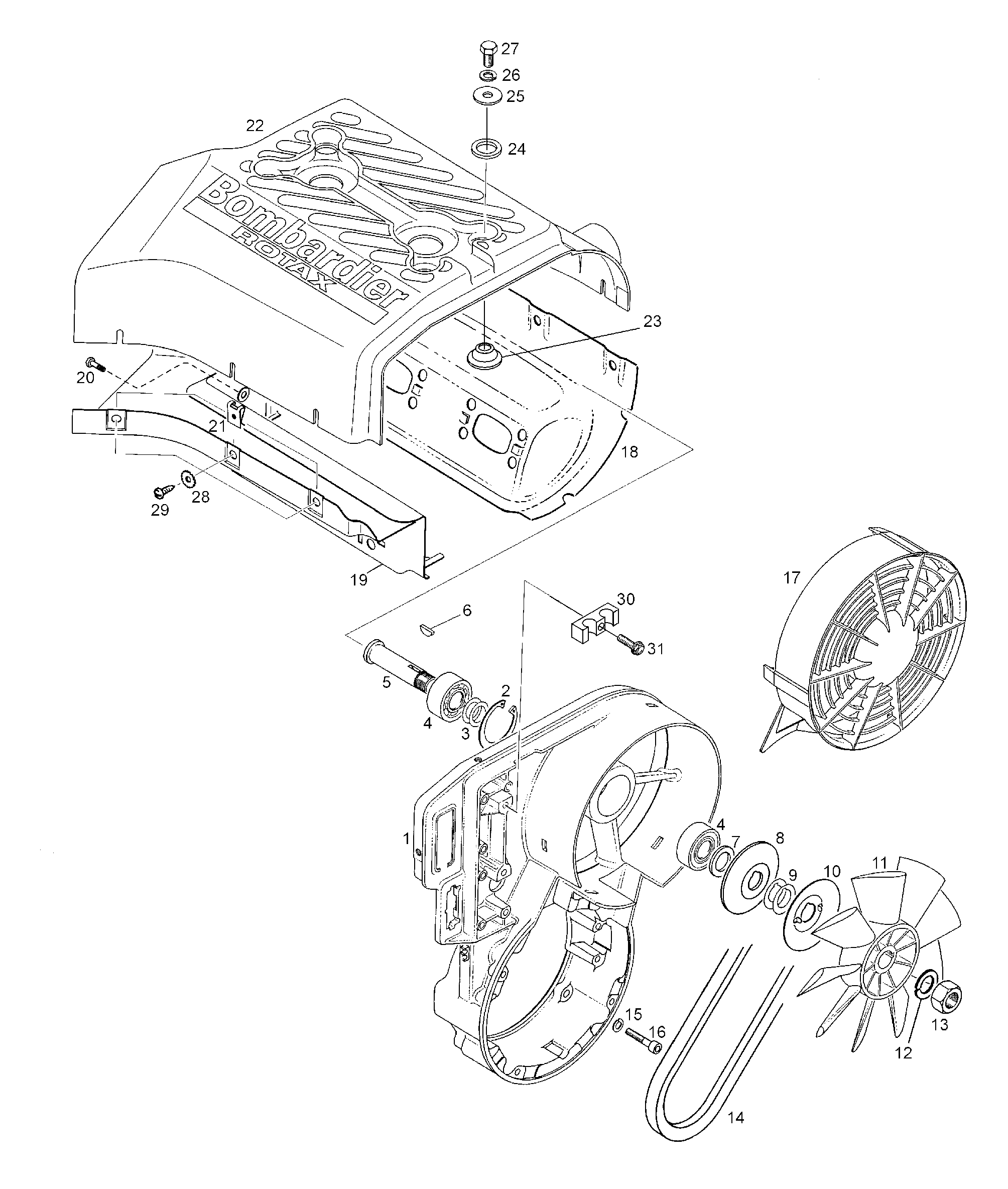

01- Fan Housing для BRP Lynx 5900 FC - 2001
-
№АртикулНазвание
-
1420912204 Fan housingFan housing
-
2420945880 Locking ringLocking ring
-
3420244585 ShimShim
-
4405406100 Ball Bearing 6203Ball Bearing 6203
-
5420937940 Fan shaftFan shaft
-
6420246015 Woodruff keyWoodruff key
-
7420827650 Distance sleeveDistance sleeve
-
8420980496 Pulley halfPulley half
-
9420827080 Shim 0.5 mmShim 0.5 mm
-
9420827082 Shim 0.2 mmShim 0.2 mm
-
10420980523 Protection washerProtection washer
-
11420866292 FanFan
-
12420945756 Lock washerLock washer
-
13420942285 Nut M16Nut M16
-
14414630800 V-beltV-belt
-
15420945751 Lock washerLock washer
-
16420840880 Allen screw M6x30Allen screw M6x30
-
17420975695 Fan coverFan cover
-
18420810543 Cylinder cowl(exhauCylinder cowl(exhau
-
19420810546 Cylinder cowl (intakeCylinder cowl (intake
-
20420240385 Screw M6x12Screw M6x12
-
21417300005 Spring nutSpring nut
-
22420811295 Cylinder cowl (upper)Cylinder cowl (upper)
-
23420827817 Cup washerCup washer
-
24420960865 Rubber washerRubber washer
-
25420227935 WasherWasher
-
26420945752 Spring washerSpring washer
-
2740035 Screw M8x16Screw M8x16
-
28420926180 WasherWasher
-
29420841495 ScrewScrew
-
30420860940 Cabel keeperCabel keeper
-
31420941250 Screw M6x20Screw M6x20
