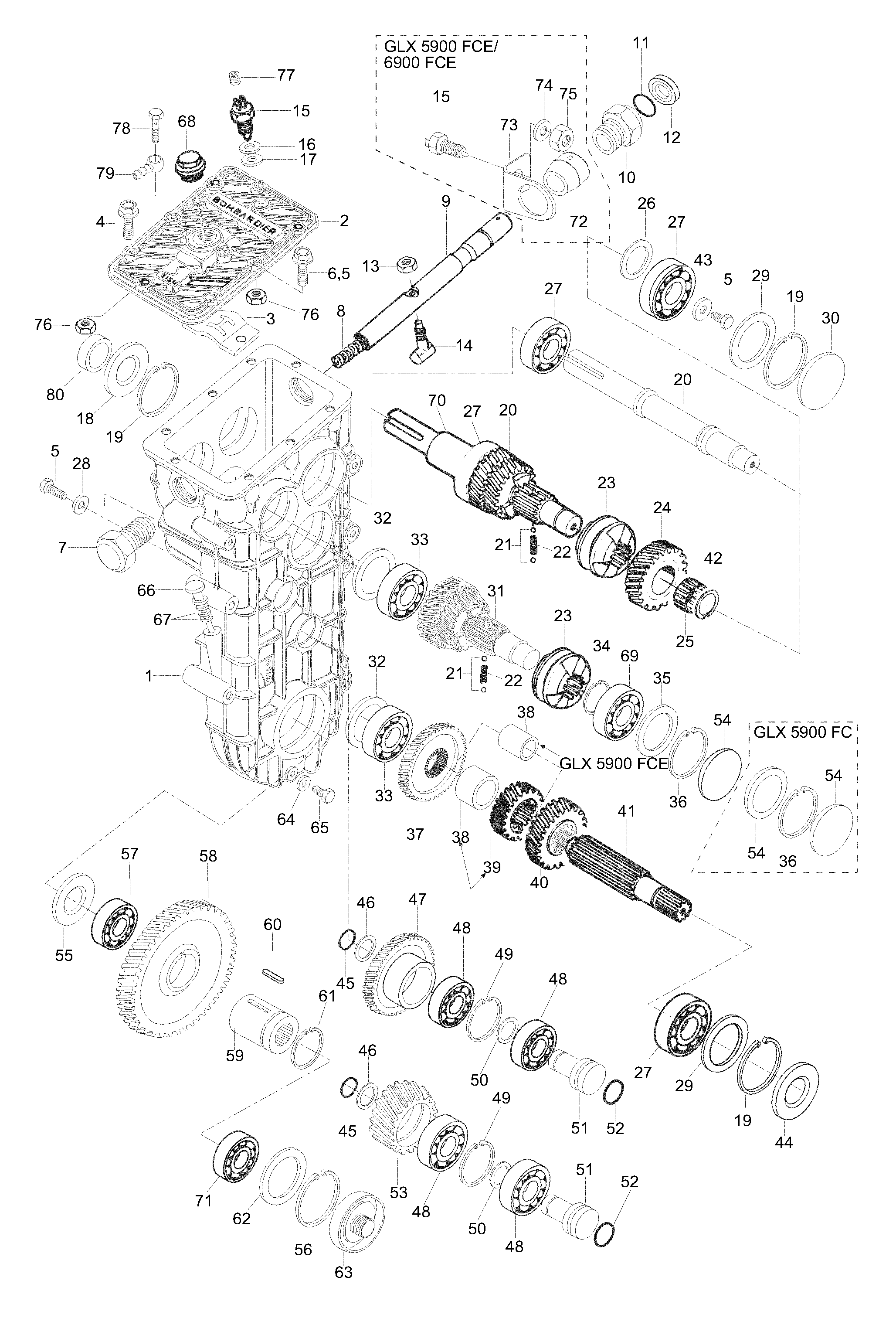

05- Gearbox для BRP Lynx 5900 FC - 2001
-
№АртикулНазвание
-
870156074 Transmission assyTransmission assy
-
1875156138 HousingHousing
-
2875156043 CoverCover
-
3875156111 H-schemeH-scheme
-
4537001402 ScrewScrew
-
540036 ScrewScrew
-
640337 ScrewScrew
-
7875156076 PluggPlugg
-
8875156078 SpringSpring
-
9875156072 ShaftShaft
-
10875156077 SleeveSleeve
-
11614601523 O-ringO-ring
-
12614102031 Shaft sealShaft seal
-
13510611002 NutNut
-
14875156073 PinPin
-
15654100225 SwitchSwitch
-
16640025012S Sealing washerSealing washer
-
17500451202 Spring washerSpring washer
-
18614103562 Shaft sealShaft seal
-
19617330062 Lock ringLock ring
-
20875156063 Variator shaft assyVariator shaft assy
-
21616810064 BallBall
-
22875156105 SpringSpring
-
23875156005 Clutch wheelClutch wheel
-
24875156052 Gear Z=27Gear Z=27
-
25611002529 Needle bearingNeedle bearing
-
26616092542 Axial washerAxial washer
-
27610063050 BearingBearing
-
28875156099 WasherWasher
-
29617395065 Adjustment shimAdjustment shim
-
30614100062 PlugPlug
-
31875156068 Reverse shaftReverse shaft
-
32875152953 PlugPlug
-
33610063044G BearingBearing
-
34617450028 Lock ringLock ring
-
35617394252 Shim 0.3 mmShim 0.3 mm
-
36617330052G Lock ringLock ring
-
37875156054 Gear Z=34Gear Z=34
-
38875156087 SleeveSleeve
-
40875156051 Gear Z=29Gear Z=29
-
41875156069 ShaftShaft
-
42617450025 Lock ringLock ring
-
43875156112 WasherWasher
-
44614102562 Shaft sealShaft seal
-
45614601224 O-ringO-ring
-
46875156094 RingRing
-
47875156050 Gear Z=28Gear Z=28
-
48610063035 BearingBearing
-
49617330047 Lock ringLock ring
-
50875147205 RingRing
-
51875147204 ShaftShaft
-
52614602431 O-ringO-ring
-
53875156049 Gear Z=31Gear Z=31
-
54614100052 PlugPlug
-
552652101 Shaft sealShaft seal
-
56617330068 Lock ringLock ring
-
576008 BearingBearing
-
58875156048 Gear Z=55Gear Z=55
-
59875136962 ShaftShaft
-
60603345070 KeyKey
-
61617300040 Lock ringLock ring
-
62617395568 Adjustment shimAdjustment shim
-
63875156104 PlugPlug
-
64615580812 Seal ringSeal ring
-
65528801342 PlugPlug
-
66875156097 DipstickDipstick
-
67614600725 O-ringO-ring
-
68875156098 PlugPlug
-
69610063040 BearingBearing
-
70875156089 SleeveSleeve
-
71610060084 BearingBearing
-
725446699 SleeveSleeve
-
735346698 BracketBracket
-
7420016 Spring washerSpring washer
-
7533021 Nut M12Nut M12
-
77504611202 PlugPlug
