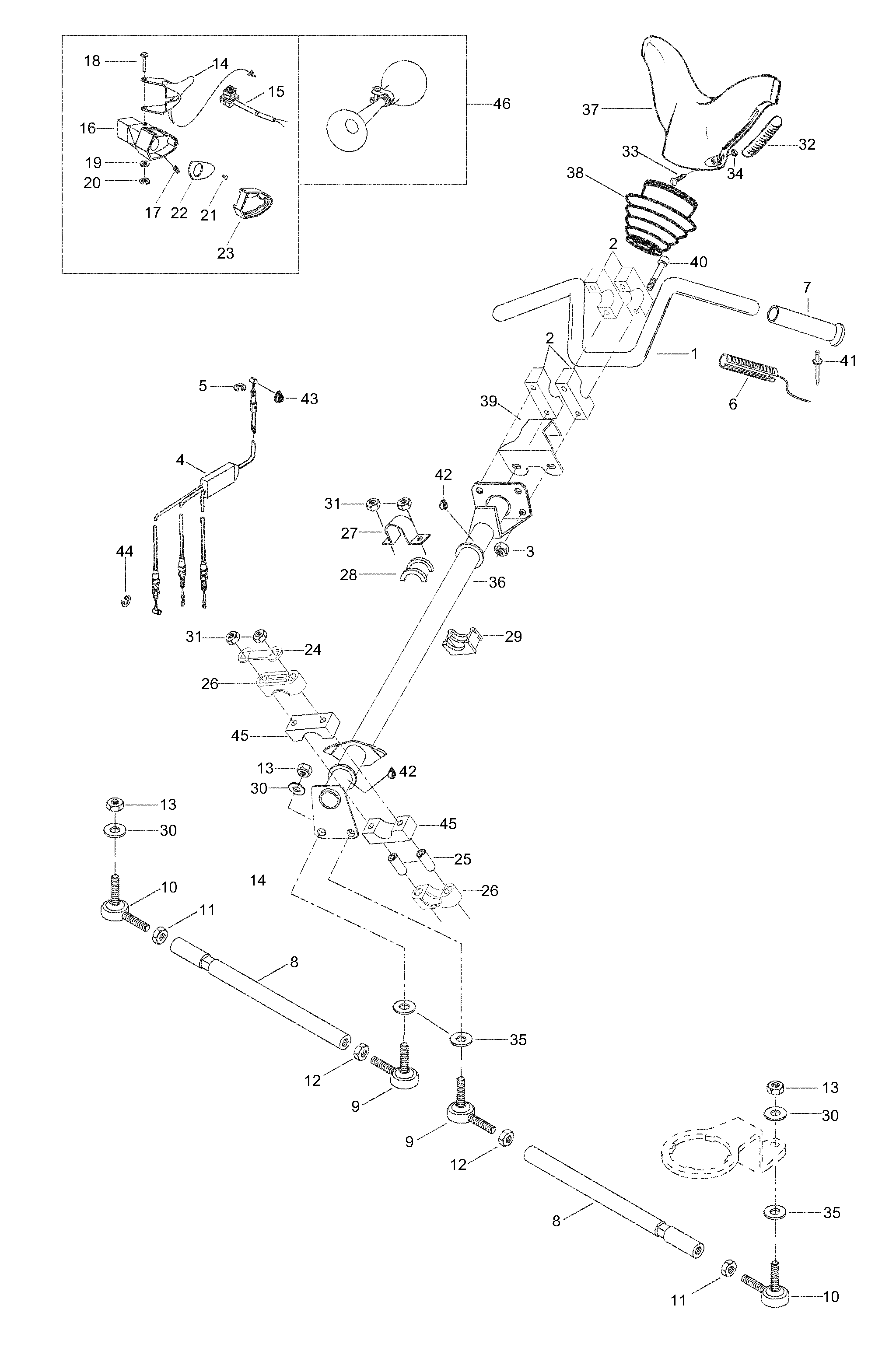

07- Steering для BRP Lynx 5900 FC - 2001
-
№АртикулНазвание
-
1529751 Steering handle barSteering handle bar
-
2548448 FasteningFastening
-
333011 Nut elastic M8Nut elastic M8
-
45244975 Gas wireGas wire
-
531038 Lock ringLock ring
-
6544345 Heating grip kitHeating grip kit
-
75340464 HandleHandle
-
8548983 vansterTie rod L.H.vansterTie rod L.H.
-
85441066 Tie rod R.H.Tie rod R.H.
-
9414768100 L.H. Ball jointL.H. Ball joint
-
10414768000 R.H. Ball joint, rightR.H. Ball joint, right
-
1133019 Nut M10 R.H.Nut M10 R.H.
-
1233017 Nut M10 L.H.Nut M10 L.H.
-
1333023 Nut elastic M10Nut elastic M10
-
145442276 Heated handleHeated handle
-
15414612700 Kill switchKill switch
-
16512059334 Throttle housingThrottle housing
-
17414440800 Screw M8x10Screw M8x10
-
18414438700 PinPin
-
19414438900 WasherWasher
-
20414439000 CirclipCirclip
-
21414473200 ScrewScrew
-
22572099400 PlatePlate
-
23572044600 Throttle adaptorThrottle adaptor
-
275343381 Retaining supportRetaining support
-
28572064500 Bearing halfBearing half
-
29572064400 Bearing halfBearing half
-
3020015 Spring washerSpring washer
-
3133201 Nut elastic M8Nut elastic M8
-
32572023900 KeyKey
-
3340156 Screw M5x20Screw M5x20
-
3433062 Nut M5Nut M5
-
365244297 Steering paleSteering pale
-
37572023800 PadPad
-
395444196 SupportSupport
-
4040286 Allen screw M8x45Allen screw M8x45
-
42413711500 Synthetic greaseSynthetic grease
-
43293550004 Dielectric grease, 15Dielectric grease, 15
-
4431035 CirclipCirclip
-
455343947 Lower Bushning AssLower Bushning Ass
-
4621003 Condor HornCondor Horn
