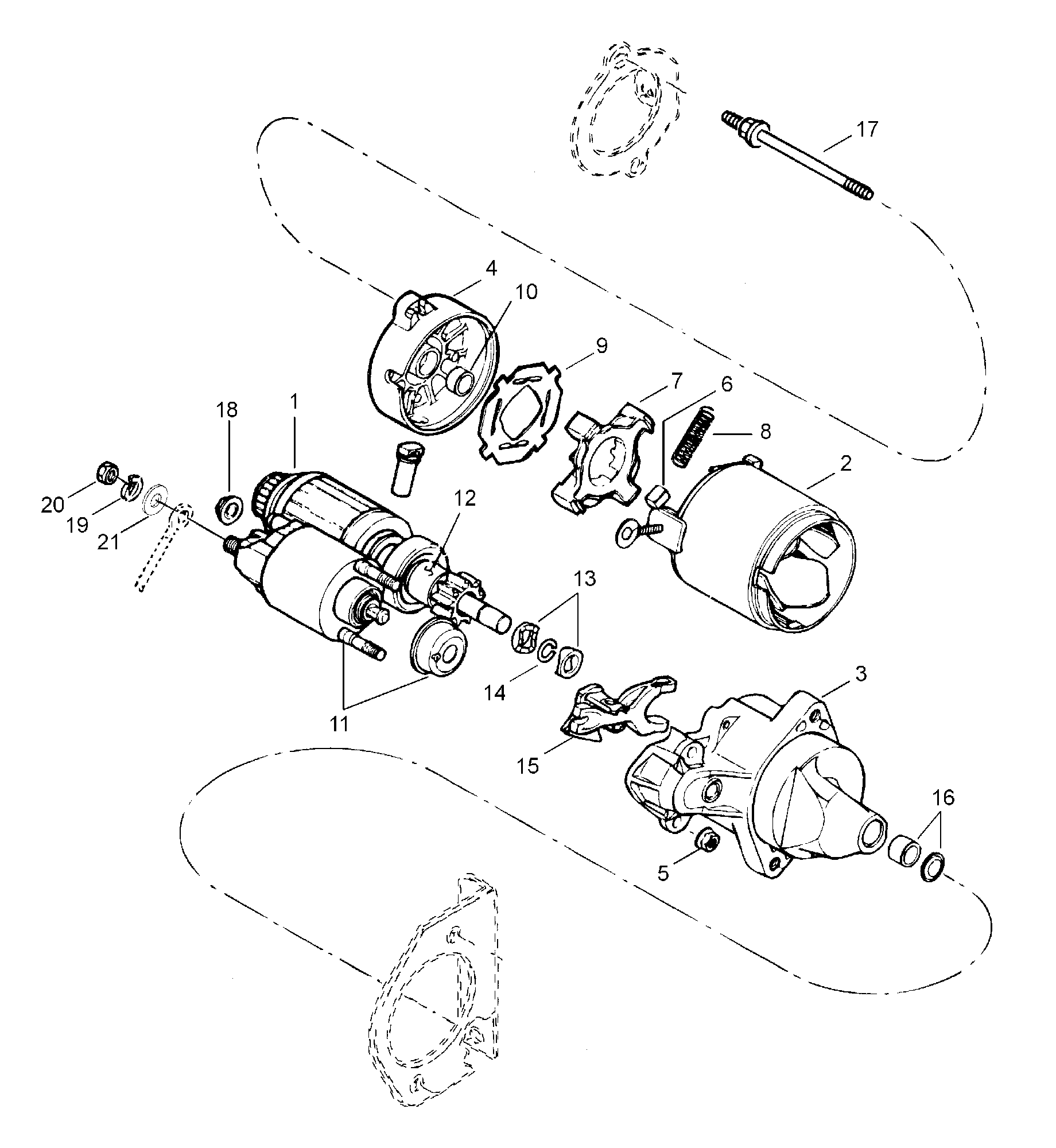

10- Electric Starter для BRP Lynx 5900 FC - 2001
-
№АртикулНазвание
-
1410212400 Electric starter. Includes items 1 thru 18Electric starter. Includes items 1 thru 18
-
1410210200 RotorRotor
-
2410209500 Housing starterHousing starter
-
3410210800 HousingHousing
-
5410211200 NutNut
-
6410209600 BrushBrush
-
7410209700 Brush holderBrush holder
-
8410209800 SpringSpring
-
9410209900 InsulatorInsulator
-
10410210100 Bushing brassBushing brass
-
11410210300 Switch assySwitch assy
-
12410210400 ClutchClutch
-
13410212500 Toothed nutToothed nut
-
14410212600 CirclipCirclip
-
15410210700 LeverLever
-
16410210900 Bushing brassBushing brass
-
17410212000 BoltBolt
-
18420242206 NutNut
-
19420945752 Lock washerLock washer
-
2033003 Nut M8Nut M8
-
2120004 WasherWasher
