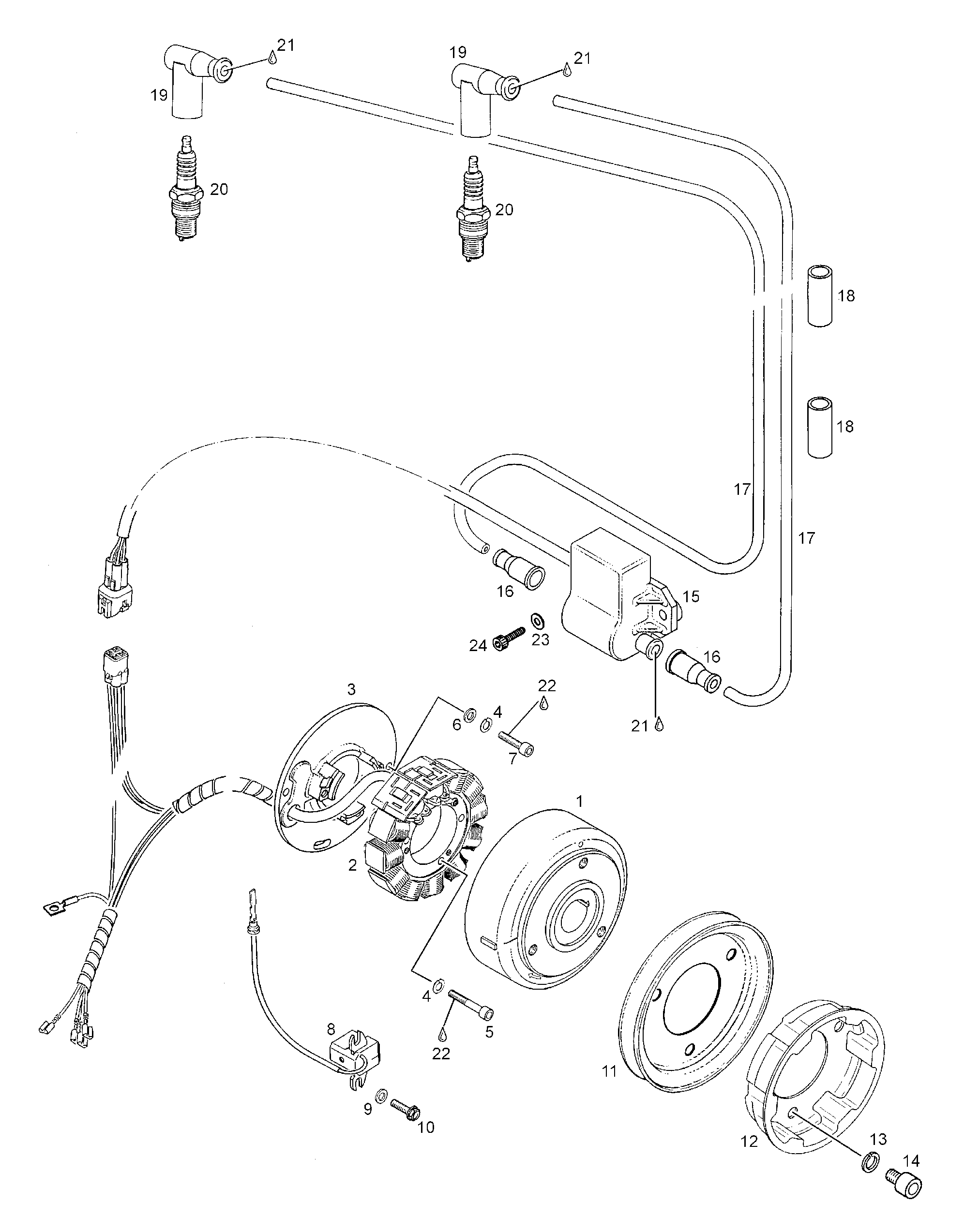

03- Fly Wheel для BRP Lynx 5900 FC - 2001
-
№АртикулНазвание
-
1420886256 Magneto 12V/240W. Includes items 1 thru 5Magneto 12V/240W. Includes items 1 thru 5
-
1420996824 Magneto flywheelMagneto flywheel
-
2420886605 Stator assy. Includes items 2 thru 5Stator assy. Includes items 2 thru 5
-
3420886605 Stator plateStator plate
-
420013 Spring washerSpring washer
-
5420940880 Allen screw M5x30Allen screw M5x30
-
6420927571 WasherWasher
-
7420840515 Allen screw M5x18Allen screw M5x18
-
8420965763 Pick up assyPick up assy
-
920002 WasherWasher
-
10420941925 Screw M5x16Screw M5x16
-
11420980486 V-belt pulleyV-belt pulley
-
12420852414 Starting pulleyStarting pulley
-
13420845311 Spring washerSpring washer
-
14420841521 Allen screw M8x12Allen screw M8x12
-
15420965757 Amplifier-box. Includes items 15 thru 19Amplifier-box. Includes items 15 thru 19
-
16420960550 Protection capProtection cap
-
17420965529 Spark plug cableSpark plug cable
-
18420830962 Protection hoseProtection hose
-
19278000237 Spark plug protectorSpark plug protector
-
20414961100 Spark plug BR9ESSpark plug BR9ES
-
22420899785 Loctite 221, violettLoctite 221, violett
-
2320003 WasherWasher
-
2440030 Screw M6x20Screw M6x20
