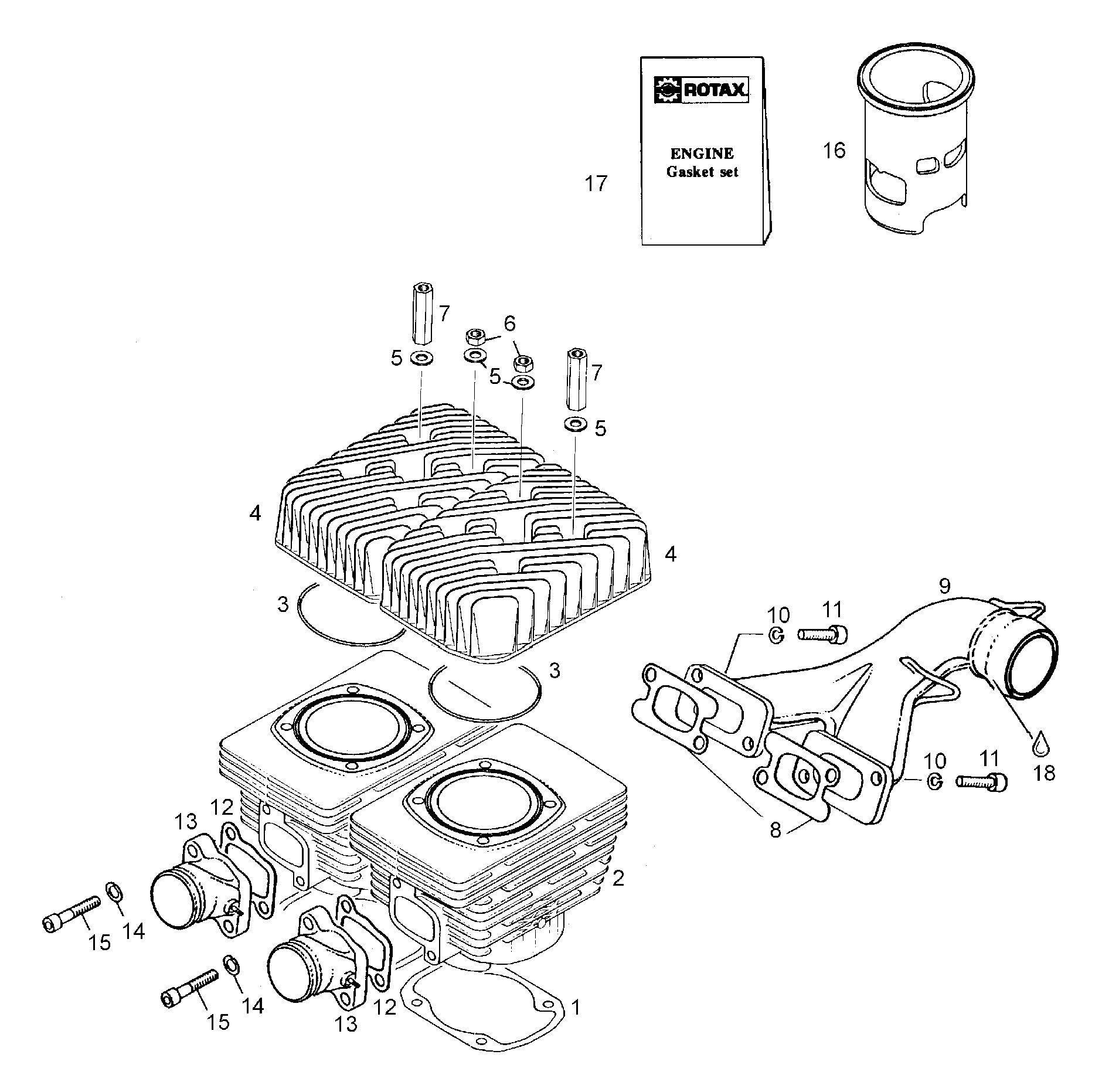

01- Cylinder для BRP Lynx 5900 FC - 2001
-
№АртикулНазвание
-
1420831858 Gasket 0.4 mmGasket 0.4 mm
-
2420923417 Cylinder with sleeveCylinder with sleeve
-
3420850540 O-ringO-ring
-
4420923590 Cylinder headCylinder head
-
520004 WasherWasher
-
6420242206 Nut M8Nut M8
-
7420842203 Distance nut M8x47Distance nut M8x47
-
8420831849 Gasket 1.0 mmGasket 1.0 mm
-
9420973512 Branch-YBranch-Y
-
1020014 Lock washerLock washer
-
1140135 Allen screw M8x30Allen screw M8x30
-
12420831866 Intake gasketIntake gasket
-
13420867741 Intake manifoldIntake manifold
-
1420014 Lock washerLock washer
-
1540131 Screw M8x40Screw M8x40
-
16420823658 Spare cylinder sleevSpare cylinder sleev
-
17420994238 Gasket setGasket set
-
18420297434 Loctite, 50mlLoctite, 50ml
