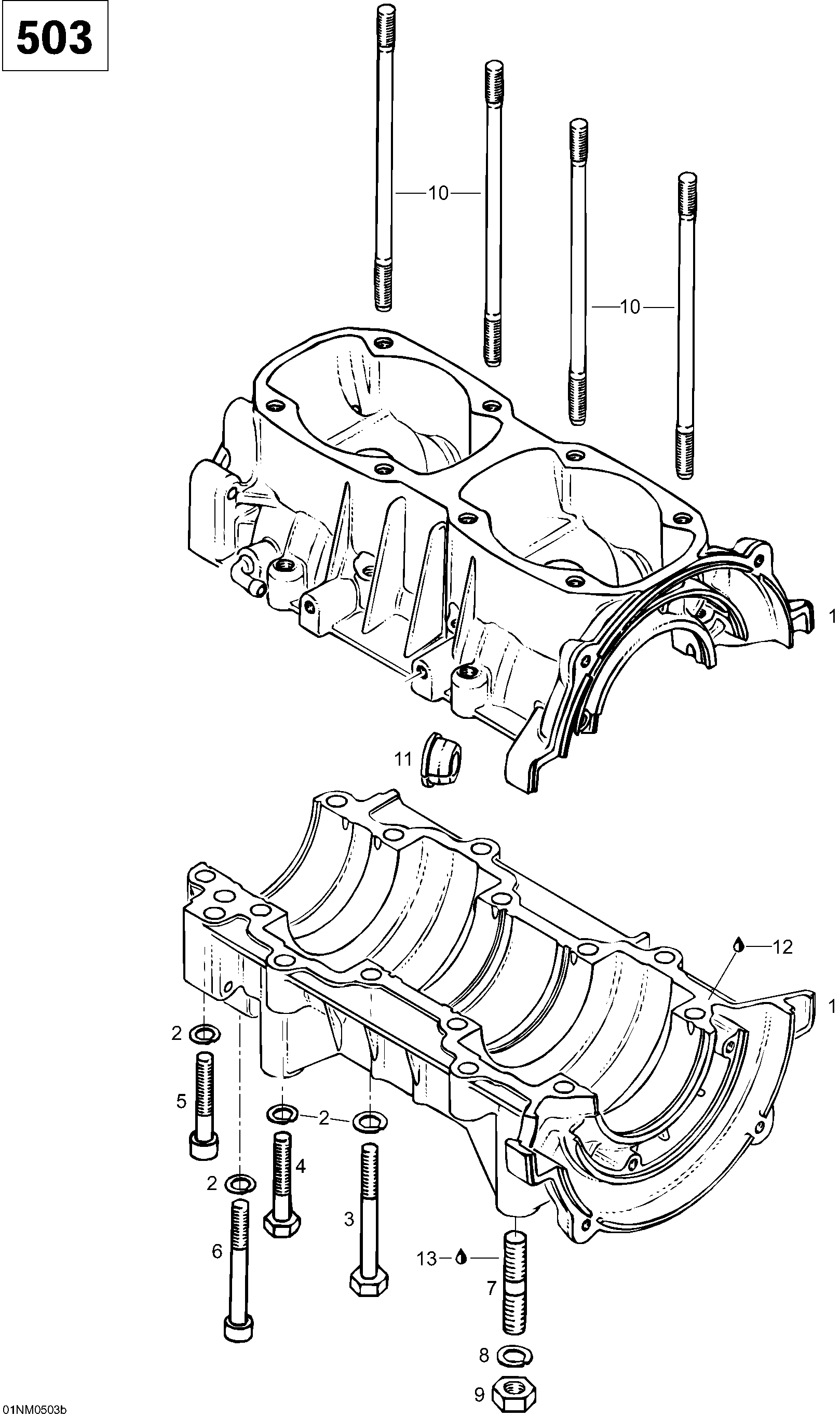

01- Crankcase, 503 для BRP Lynx Lynx 5900FCE - 2005
-
№АртикулНазвание
-
1420888493 Crankcase assy. Includes 1 to 6Crankcase assy. Includes 1 to 6
-
220014 Spring washerSpring washer
-
3420841201 Screw M8 x 70Screw M8 x 70
-
4420940631 Screw M8 x 45Screw M8 x 45
-
5420841561 Allen screw M8 x 45Allen screw M8 x 45
-
6420841841 Allen screw M8 x 65Allen screw M8 x 65
-
7420940704 Stud M10Stud M10
-
8420945753 Lock washerLock washer
-
933004 Nut M10Nut M10
-
10420840556 Stud M8Stud M8
-
11420860962 Cable grommetCable grommet
-
12420899784 Loctite 574 orangeLoctite 574 orange
-
13420899785 Loctite 221 violetLoctite 221 violet
-
-300050303 Short block engineShort block engine
