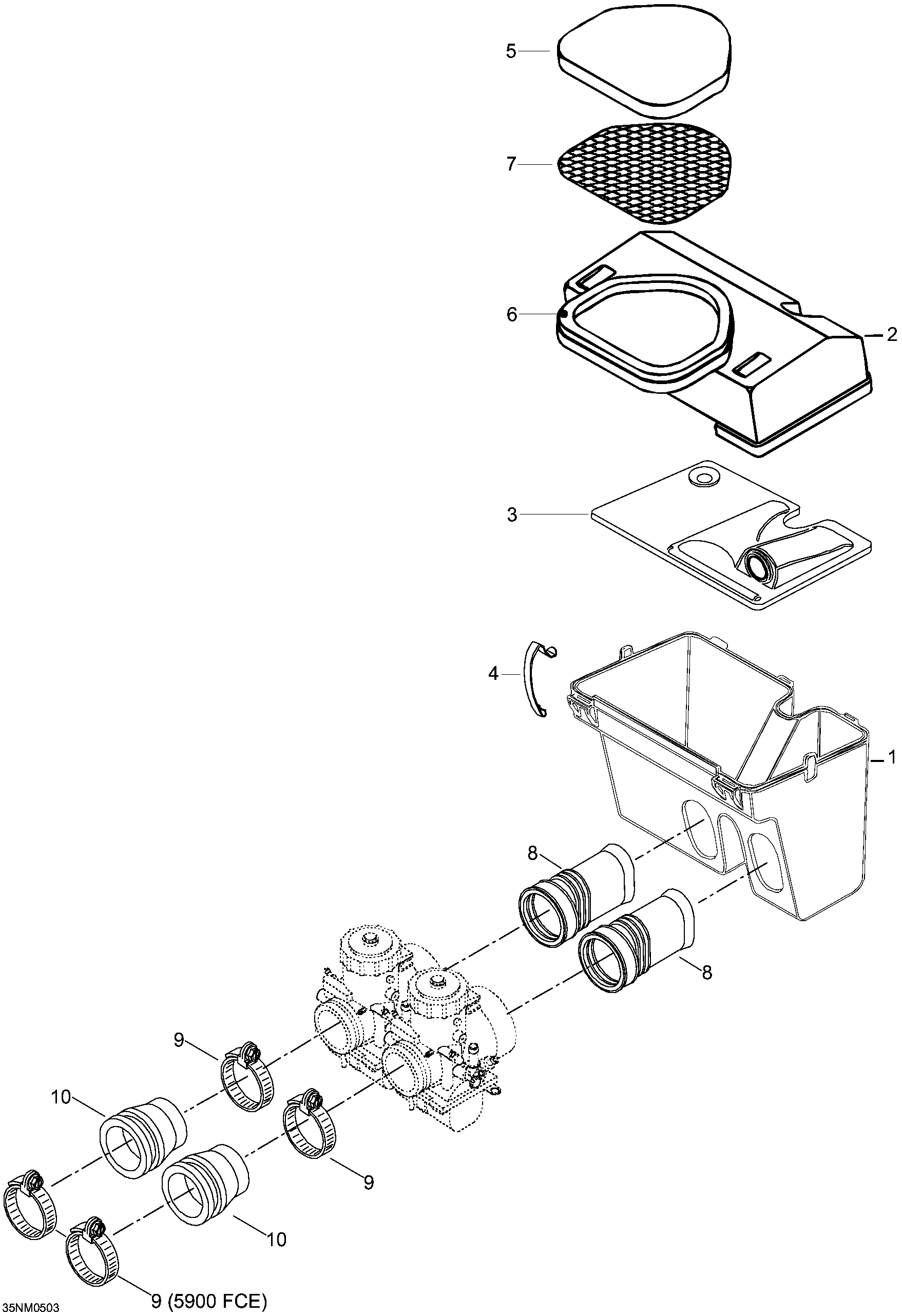

02- Air Intake System, 5900FCE для BRP Lynx Lynx 5900FCE - 2005
-
№АртикулНазвание
-
15142751 Bottom of airboxBottom of airbox
-
25142786 Cover for airboxCover for airbox
-
35344795 Pipe platePipe plate
-
45442836 Locking springLocking spring
-
55342958 FilterFilter
-
65342959 Sealing foamSealing foam
-
75342960 Support grillSupport grill
-
85142626 Fastening rubberFastening rubber
-
9414532700 Clamp. 5900FCEClamp. 5900FCE
-
105342627 Fastening rubber. 5900FCEFastening rubber. 5900FCE
