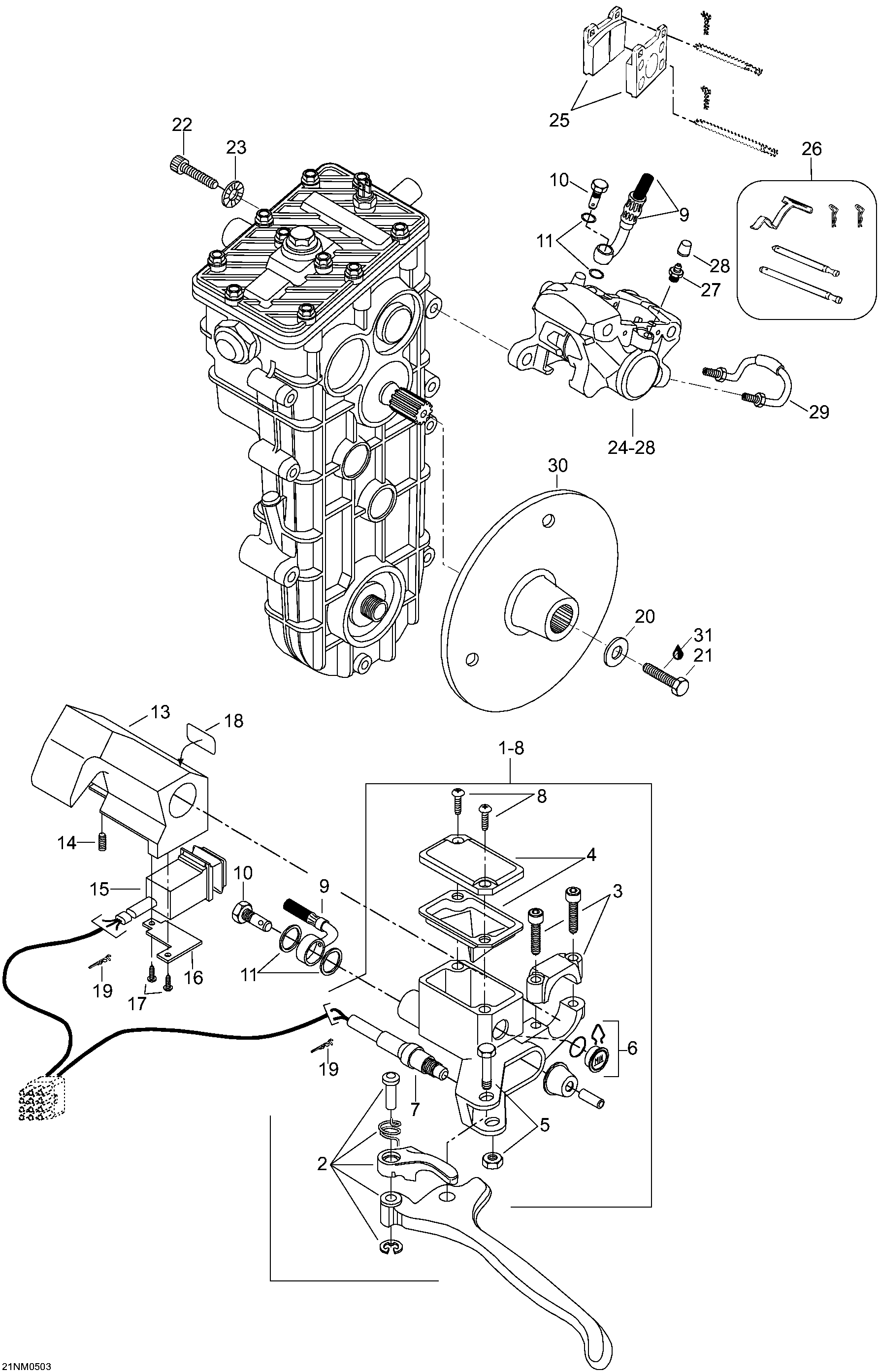

06- Brake, 5900FCE для BRP Lynx Lynx 5900FCE - 2005
-
№АртикулНазвание
-
1507032322 Master cylinder. Includes 1 to 8Master cylinder. Includes 1 to 8
-
2507032268 Short brake leverShort brake lever
-
3415029800 Clamp assyClamp assy
-
4415029900 CoverCover
-
5415030000 Pin assyPin assy
-
6414990600 WindowWindow
-
7507032334 Microswitch assyMicroswitch assy
-
8216141260 ScrewScrew
-
9507032219 Brake lineBrake line
-
10414920500 BoltBolt
-
11414920600 WasherWasher
-
12515175492 Light switch housing assy. Includes 12 to 18Light switch housing assy. Includes 12 to 18
-
13572079500 HousingHousing
-
14414440800 Set screwSet screw
-
15515175371 SwitchSwitch
-
16517283800 Housing-plateHousing-plate
-
17414473200 ScrewScrew
-
18415025500 Switch decalSwitch decal
-
1942603 ConnectorConnector
-
20546336 WasherWasher
-
2140336 Hex. screw M8 x 20Hex. screw M8 x 20
-
2240277 Socket head screw M10 x 65Socket head screw M10 x 65
-
2320068 Lock washerLock washer
-
24507032412 Jarrukaliberi Brembo 20.3500.12. Includes 24 to 28Jarrukaliberi Brembo 20.3500.12. Includes 24 to 28
-
25415084600 Brake lining kitBrake lining kit
-
26414990700 Kit (pins, retainers, spring)Kit (pins, retainers, spring)
-
27414989800 Screw-bleederScrew-bleeder
-
28414989700 BootBoot
-
29414989900 TubeTube
-
30605350507 Brake disk assy. 5900FCEBrake disk assy. 5900FCE
-
31293800060 Loctite 243, 10mlLoctite 243, 10ml
