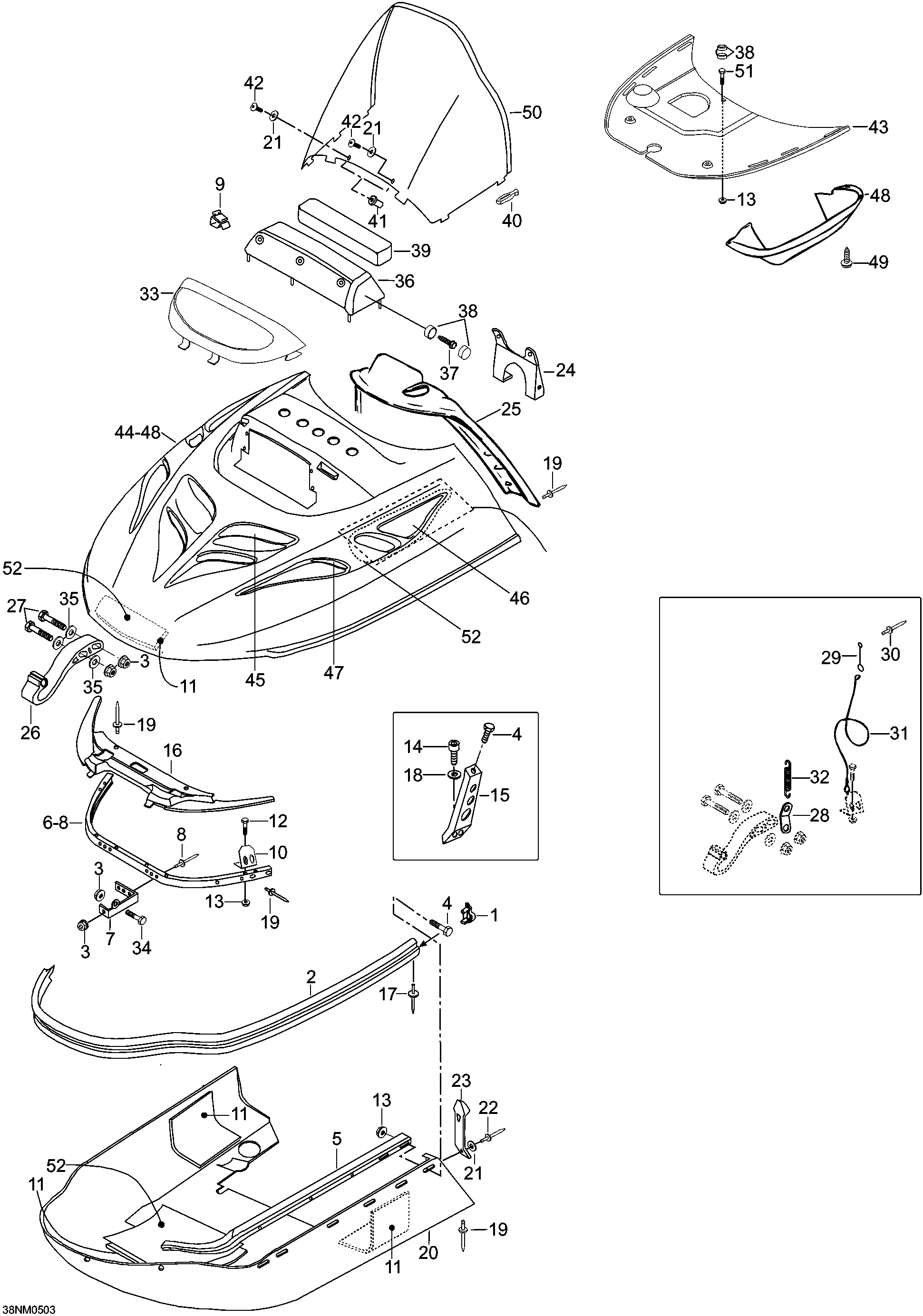

09- Hood, 5900FCE для BRP Lynx Lynx 5900FCE - 2005
-
№АртикулНазвание
-
1549096R Plug R.H.Plug R.H.
-
1549096L Plug L.H.Plug L.H.
-
25242798 BumperBumper
-
333200 Elastic flanged nut M6Elastic flanged nut M6
-
440078 Screw M6 x 22Screw M6 x 22
-
55242804 Guide side R.H.Guide side R.H.
-
55242803 Guide side L.H.Guide side L.H.
-
65246120 Front support assy. Includes 6 to 8Front support assy. Includes 6 to 8
-
75342234 Hinge R.H.Hinge R.H.
-
75342345 Hinge L.H.Hinge L.H.
-
836083 RivetRivet
-
9414227300 ClipClip
-
105443217 Guide, shortGuide, short
-
11414631900 Screw M5 x 16Screw M5 x 16
-
1240247 Elastic flanged nut M5Elastic flanged nut M5
-
1333062 Foam acousticFoam acoustic
-
1440332 Socket head screw M6 x 16Socket head screw M6 x 16
-
155342509 Support for bumperSupport for bumper
-
165148319 Protector for hingeProtector for hinge
-
1736097 RivetRivet
-
1820052 Lock washer 6mmLock washer 6mm
-
1936036 RivetRivet
-
20605152311 Bottom pan. 5900FCEBottom pan. 5900FCE
-
2120008 RivetRivet
-
2236009 Hood latch. 5900FCEHood latch. 5900FCE
-
235342952 Support. 5900FCESupport. 5900FCE
-
245347795 Rear hoodRear hood
-
25605148419 Hinge weldedHinge welded
-
265343075 Screw M6 x 50Screw M6 x 50
-
2740193 Spring plateSpring plate
-
285443123 Cable keeperCable keeper
-
29605449395 RivetRivet
-
3036005 WasherWasher
-
315346947 Retainer cableRetainer cable
-
325442675 SpringSpring
-
335246396 Lamp moldingLamp molding
-
3440084 Screw M6 x 45Screw M6 x 45
-
3520009 Washer 6mmWasher 6mm
-
36605149010 Intake coverIntake cover
-
3740901 Plastofast screw 5 x 20Plastofast screw 5 x 20
-
38282000 Nut protectorNut protector
-
39605349056 FilterFilter
-
40570023800 LatchLatch
-
4128055 Well-nutWell-nut
-
4240156 Screw M5 x 20Screw M5 x 20
-
435246742 Middle deckMiddle deck
-
44605148642 Hood pre ass'y, Nautical Blue. 5900FCE, Includes 44 to 48Hood pre ass'y, Nautical Blue. 5900FCE, Includes 44 to 48
-
455142669 Grill, middleGrill, middle
-
465242670 L.H. upper grillL.H. upper grill
-
465242671 R.H. upper grillR.H. upper grill
-
475242672 R.H. lower grillR.H. lower grill
-
475342673 L.H. lower grillL.H. lower grill
-
485146986 Cooling channelCooling channel
-
49414644300 Dart-windshieldDart-windshield
-
505147892 WindscreenWindscreen
-
5140179 Screw M5 x 25Screw M5 x 25
-
5244001 Reflective sheet (1000mm x 1000mm)Reflective sheet (1000mm x 1000mm)
