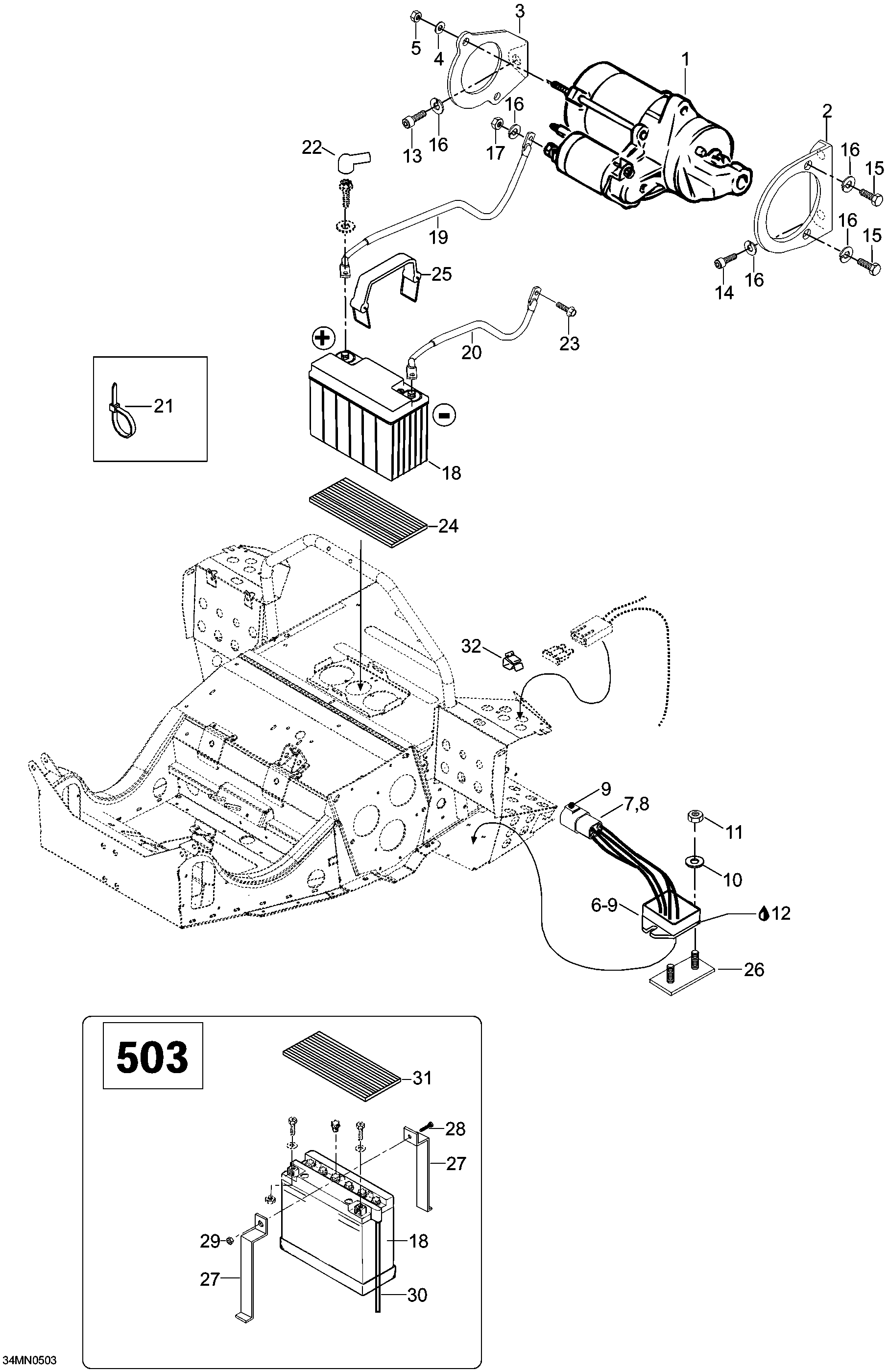

10- Battery And Starter, 5900FCE для BRP Lynx Lynx 5900FCE - 2005
-
№АртикулНазвание
-
1410212400 StarterStarter
-
2420951415 Starter bracketStarter bracket
-
3420951426 Starter bracket MAGStarter bracket MAG
-
420008 Washer 5mmWasher 5mm
-
533009 Elastic stop nut M5Elastic stop nut M5
-
6515175656 Rectifier assy. Includes 6 to 9Rectifier assy. Includes 6 to 9
-
7278001477 Connector housingConnector housing
-
8515175568 Male terminalMale terminal
-
9278001478 WedgeWedge
-
1020009 Washer 6mmWasher 6mm
-
1133010 Elastic stop nut M6Elastic stop nut M6
-
12413707500 Lithium-greaseLithium-grease
-
1340066 Socket head screw M8 x 16Socket head screw M8 x 16
-
1440305 Socket head screw M8 x 20Socket head screw M8 x 20
-
1540036 Hex. screw M8 x 20Hex. screw M8 x 20
-
1620014 Lock washer 8mmLock washer 8mm
-
1733003 Nut M8Nut M8
-
18515175642 Battery. 5900FCEBattery. 5900FCE
-
19605349434 Battery wireBattery wire
-
20549887 Ground wireGround wire
-
2127026 Tie-rapTie-rap
-
22570151000 Cap protectionCap protection
-
2340327 Hex. screw M6 x 12Hex. screw M6 x 12
-
24605350237 Rubber. 5900FCERubber. 5900FCE
-
25515175475 Battery strap. 5900FCEBattery strap. 5900FCE
-
265448286 Averse Plate AssyAverse Plate Assy
-
32414227300 ClipClip
