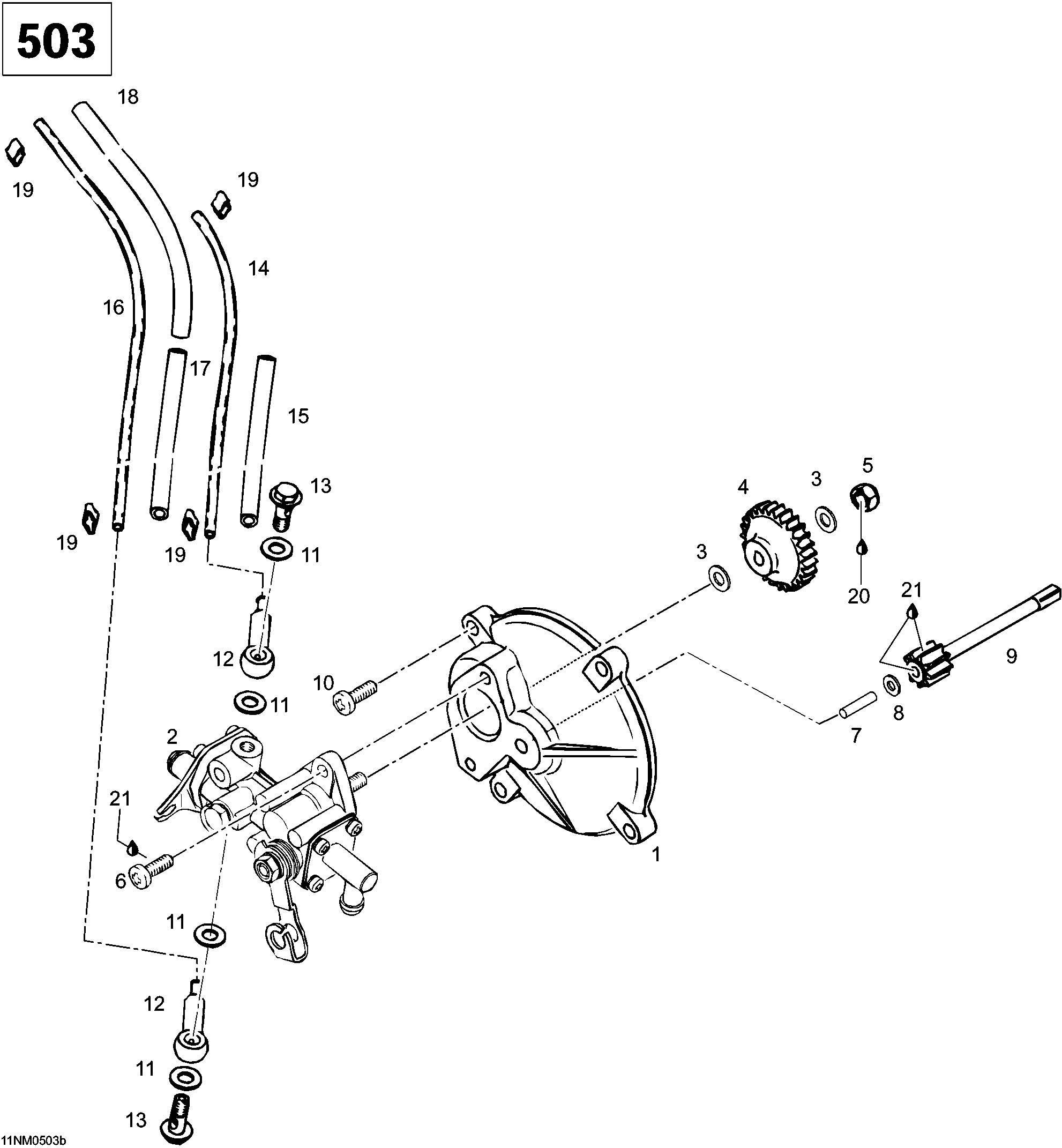

01- Oil Pump, 503 для BRP Lynx Lynx 5900FCE - 2005
-
№АртикулНазвание
-
1420910160 Pump mounting flangePump mounting flange
-
2420887998 Oil pump ass'yOil pump ass'y
-
3420927945 Washer 6.2 mmWasher 6.2 mm
-
4420935930 Oil pump gear (27 tooth)Oil pump gear (27 tooth)
-
5232561414 Elastic stop nut M6Elastic stop nut M6
-
6420841971 Self tapping screw M 5.5 x 16Self tapping screw M 5.5 x 16
-
7420832260 Needle pin B 4 x 17.8Needle pin B 4 x 17.8
-
8420244073 Washer 4.3 mmWasher 4.3 mm
-
9420935970 Gear (9-tooth)Gear (9-tooth)
-
10420841976 Self tapping screw M5.5 x 20Self tapping screw M5.5 x 20
-
11420227500 Gasket ringGasket ring
-
12420956010 Check valve ass'yCheck valve ass'y
-
13420241830 Banjo boltBanjo bolt
-
14420660491 MAG side oil line 270 mmMAG side oil line 270 mm
-
15420960750 Isolation line 90 mm (MAG)Isolation line 90 mm (MAG)
-
16420660427 PTO side oil line 420 mmPTO side oil line 420 mm
-
17420960728 Isolation line 120 mm (PTO)Isolation line 120 mm (PTO)
-
18420960729 Isolation line 150 mm (PTO)Isolation line 150 mm (PTO)
-
19420853840 ClampClamp
-
20413707000 Loctite 243, 10 mlLoctite 243, 10 ml
-
21420660493 Molykote 111Molykote 111
