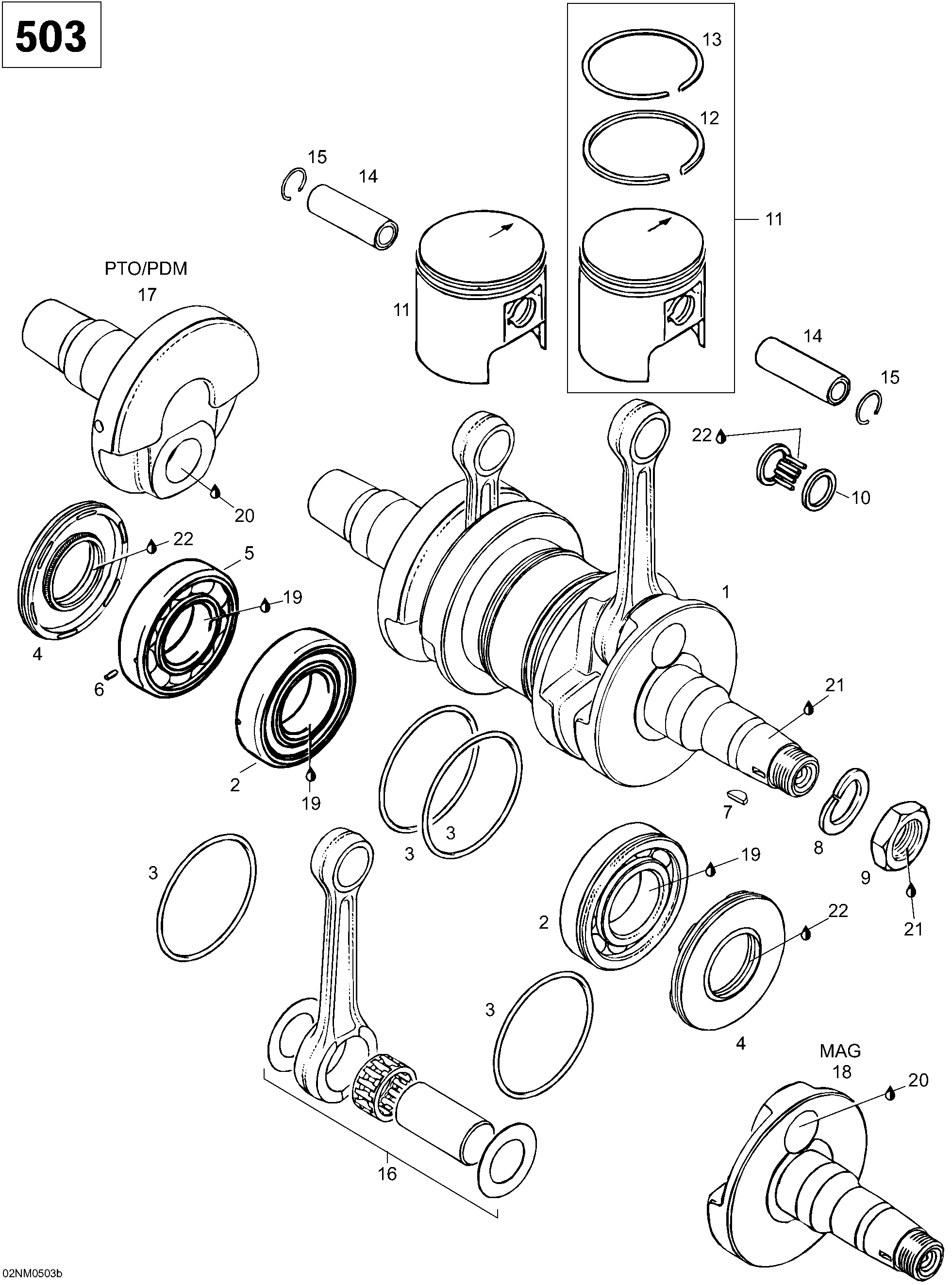

01- Crankshaft and Pistons, 503 для BRP Lynx Lynx 5900FCE - 2005

№

Артикул

Название
1

420888391 Crankshaft assy. Includes 1 to 7

Crankshaft assy. Includes 1 to 7

102 810 ₽
2

420832570 Ball bearing 6207

Ball bearing 6207

4 050 ₽
3

420250165 O-ring

O-ring

0 ₽
4

420831952 Oil seal

Oil seal

11 550 ₽
5

420832574 Ball bearing 6207. Includes 5 to 6

Ball bearing 6207. Includes 5 to 6

15 440 ₽
6

420929972 Drive pin

Drive pin

280 ₽
7

420246055 Woodruff key

Woodruff key

230 ₽
8

420945759 Lock washer

Lock washer

660 ₽
9

420842230 Nut M22

Nut M22

0 ₽
10

420832320 Cagel. needle bearing

Cagel. needle bearing

10 710 ₽
11

420890070 Piston assy 71.92 mm. Includes 11 to 13

Piston assy 71.92 mm. Includes 11 to 13

15 900 ₽
11

420890071 Piston assy 72.17 mm. Includes 11 to 13

Piston assy 72.17 mm. Includes 11 to 13

15 900 ₽
11

420890072 Piston assy 72.42 mm. Includes 11 to 13

Piston assy 72.42 mm. Includes 11 to 13

14 530 ₽
12

420915850 Piston ring 72.00 mm

Piston ring 72.00 mm

2 370 ₽
12

420915851 Piston ring 72.25 mm

Piston ring 72.25 mm

3 280 ₽
12

420915852 Piston ring 72.50 mm

Piston ring 72.50 mm

3 600 ₽
13

420815200 Piston ring 72.00 mm

Piston ring 72.00 mm

4 830 ₽
13

420815201 Piston ring 72.25 mm

Piston ring 72.25 mm

4 670 ₽
13

420815202 Piston ring 72.50 mm

Piston ring 72.50 mm

5 270 ₽
14

420916186 Piston pin

Piston pin

9 000 ₽
15

420945735 Circlip

Circlip

1 610 ₽
16

420888394 Crankshaft repair kit

Crankshaft repair kit

29 670 ₽
17

420818244 Crankshaft P.T.O.-side

Crankshaft P.T.O.-side

20 390 ₽
18

420819020 Crankshaft MAG.-side

Crankshaft MAG.-side

23 810 ₽
19

420297434 Loctite, 50ml

Loctite, 50ml

0 ₽
20

420897341 Loctite 14486, 10cc

Loctite 14486, 10cc

0 ₽
21

420899785 Loctite 221 violet

Loctite 221 violet

0 ₽
22

413707000 Multi purpose grease

Multi purpose grease

7 550 ₽
