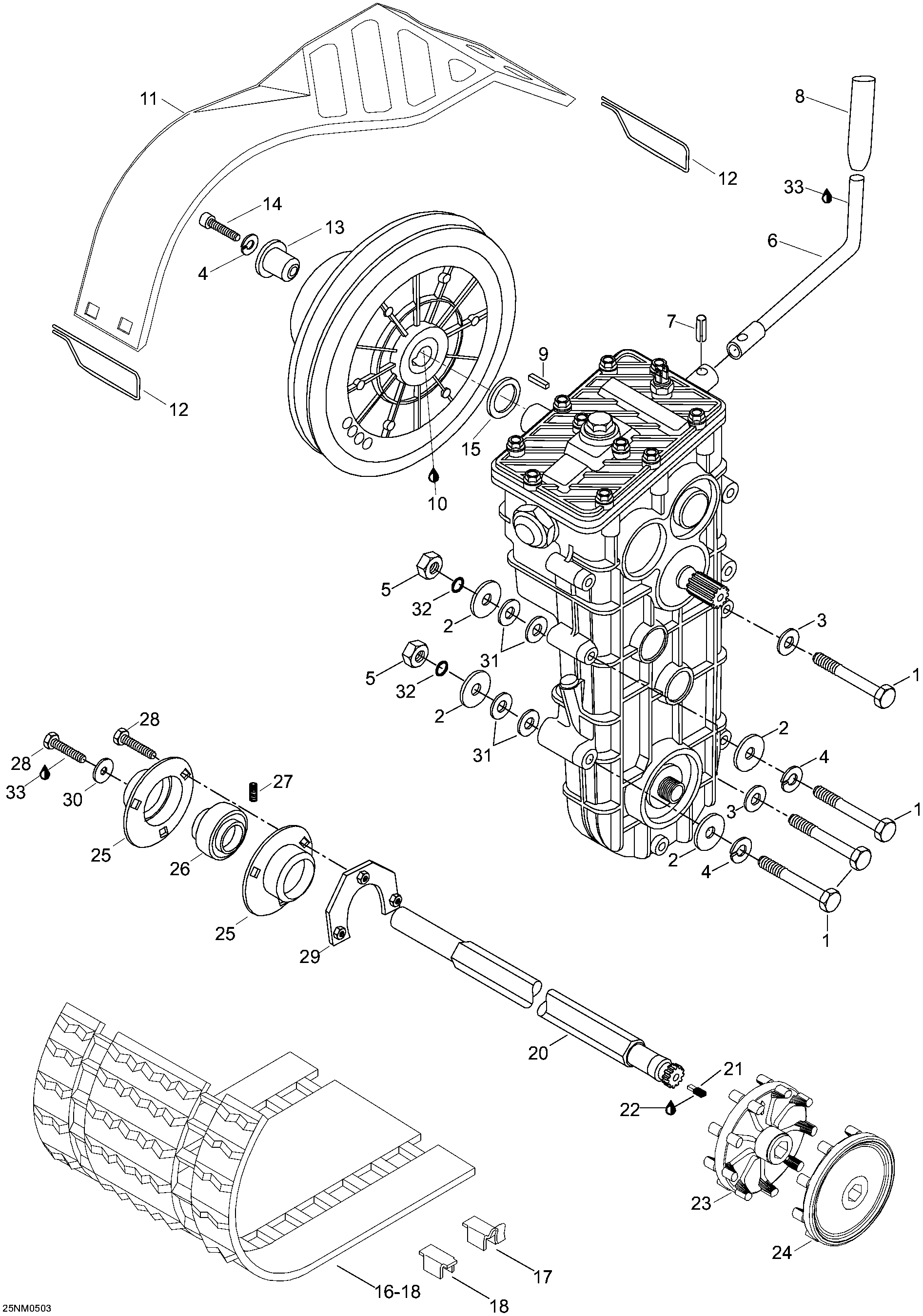

05- Drive System, 5900FCE для BRP Lynx Lynx 5900FCE - 2005
-
№АртикулНазвание
-
140012 Hex. Screw M8 x 80Hex. Screw M8 x 80
-
220010 Washer 8mmWasher 8mm
-
320004 Washer 8mmWasher 8mm
-
420014 Lock washer 8mmLock washer 8mm
-
533011 Elastic stop nut M8Elastic stop nut M8
-
65340902 Shift handleShift handle
-
741008 Spring keySpring key
-
828247 ButtonButton
-
9418763 KeyKey
-
10293800070 Loctite 767, 8 ozLoctite 767, 8 oz
-
115142660 Belt guardBelt guard
-
125442726 PinPin
-
135443201 Spacer. 5900FCESpacer. 5900FCE
-
1440286 Socket head screw M8 x 45. 5900FCESocket head screw M8 x 45. 5900FCE
-
1613055 Track. 5900FCETrack. 5900FCE
-
175318323 Cleat guideCleat guide
-
185318322 Slide guideSlide guide
-
195344384 Drive axle assy. 5900FCE, Includes 19 to 24Drive axle assy. 5900FCE, Includes 19 to 24
-
205341662 Drive axle. 5900FCEDrive axle. 5900FCE
-
21542013 Speedometer drive insertSpeedometer drive insert
-
22293800005 Loctite 271, 10mlLoctite 271, 10ml
-
23539750 Sprocket. 5900FCESprocket. 5900FCE
-
245342920 Sprocket. 5900FCESprocket. 5900FCE
-
25534430 Bearing housing setBearing housing set
-
2631UC205 Bearing. Includes 26 to 27Bearing. Includes 26 to 27
-
2710531 Lock screwLock screw
-
2840336 Hex. screw M8 x 20Hex. screw M8 x 20
-
29546421 Thrust ringThrust ring
-
30546336 WasherWasher
-
3120077 Washer 8mmWasher 8mm
-
32506151140 O-ringO-ring
-
33293800060 Loctite 243Loctite 243
