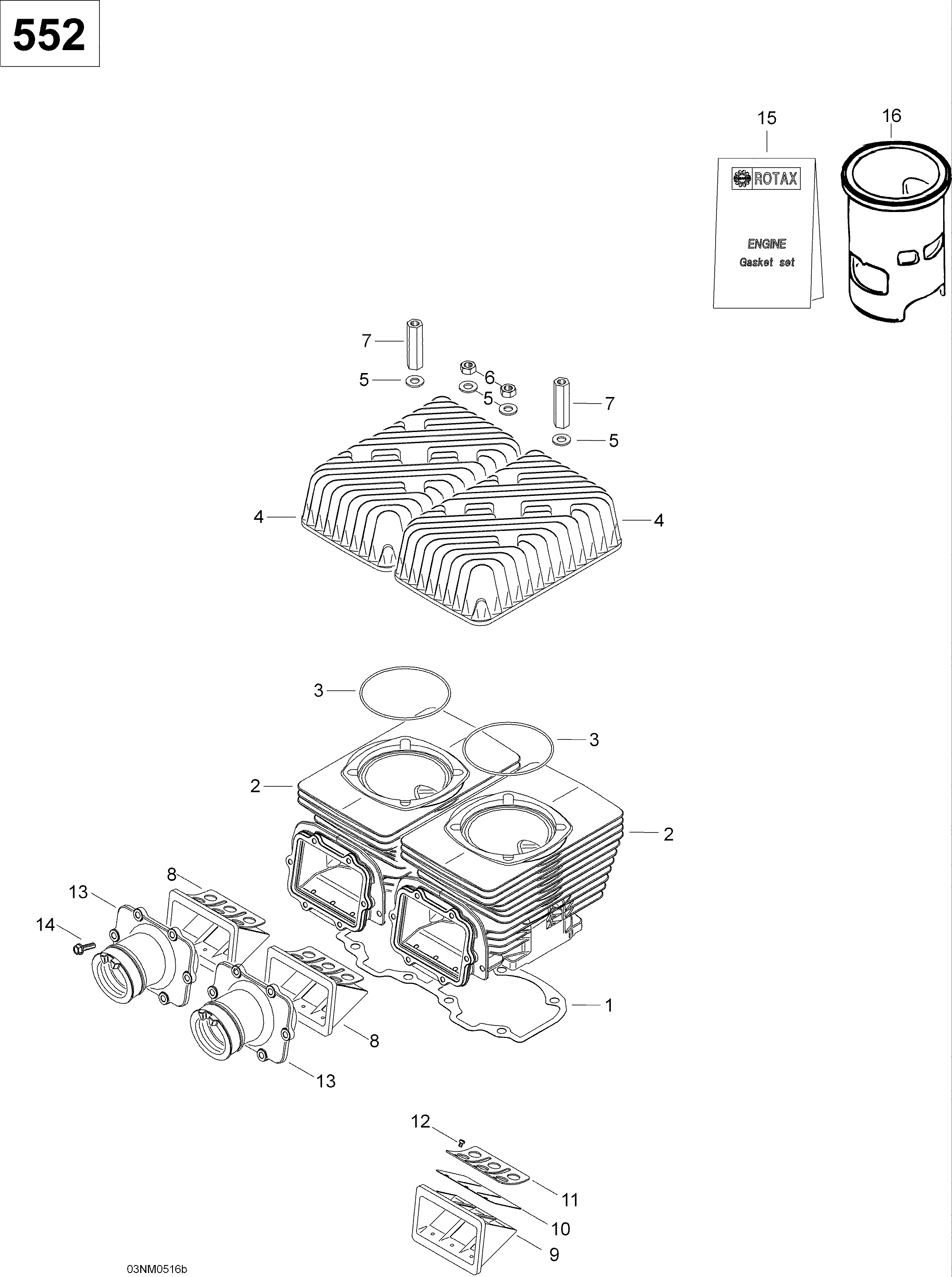

01- Cylinder And Cylinder Head, 552 для BRP Lynx Explorer 550 - 2005
-
№АртикулНазвание
-
1420950910 Gasket 0.3Gasket 0.3
-
1420950911 Gasket 0.4Gasket 0.4
-
1420950912 Gasket 0.6Gasket 0.6
-
2420623141 CylinderCylinder
-
3293300026 O-RingO-Ring
-
4420923595 Head CylinderHead Cylinder
-
520004 WasherWasher
-
6420242206 Nut M8Nut M8
-
7420842203 Distance Nut M8 X 47Distance Nut M8 X 47
-
8420924519 Reed Valve Ass’YReed Valve Ass’Y
-
10420924532 Reed PedalReed Pedal
-
11420924539 Reed Pedal StopReed Pedal Stop
-
12420941215 Phillips Screw M3 X 5Phillips Screw M3 X 5
-
13420867100 Carburetor socketCarburetor socket
-
14420941925 Tapping Screw M5 X 16Tapping Screw M5 X 16
-
15420889911 Gasket Set, EngineGasket Set, Engine
