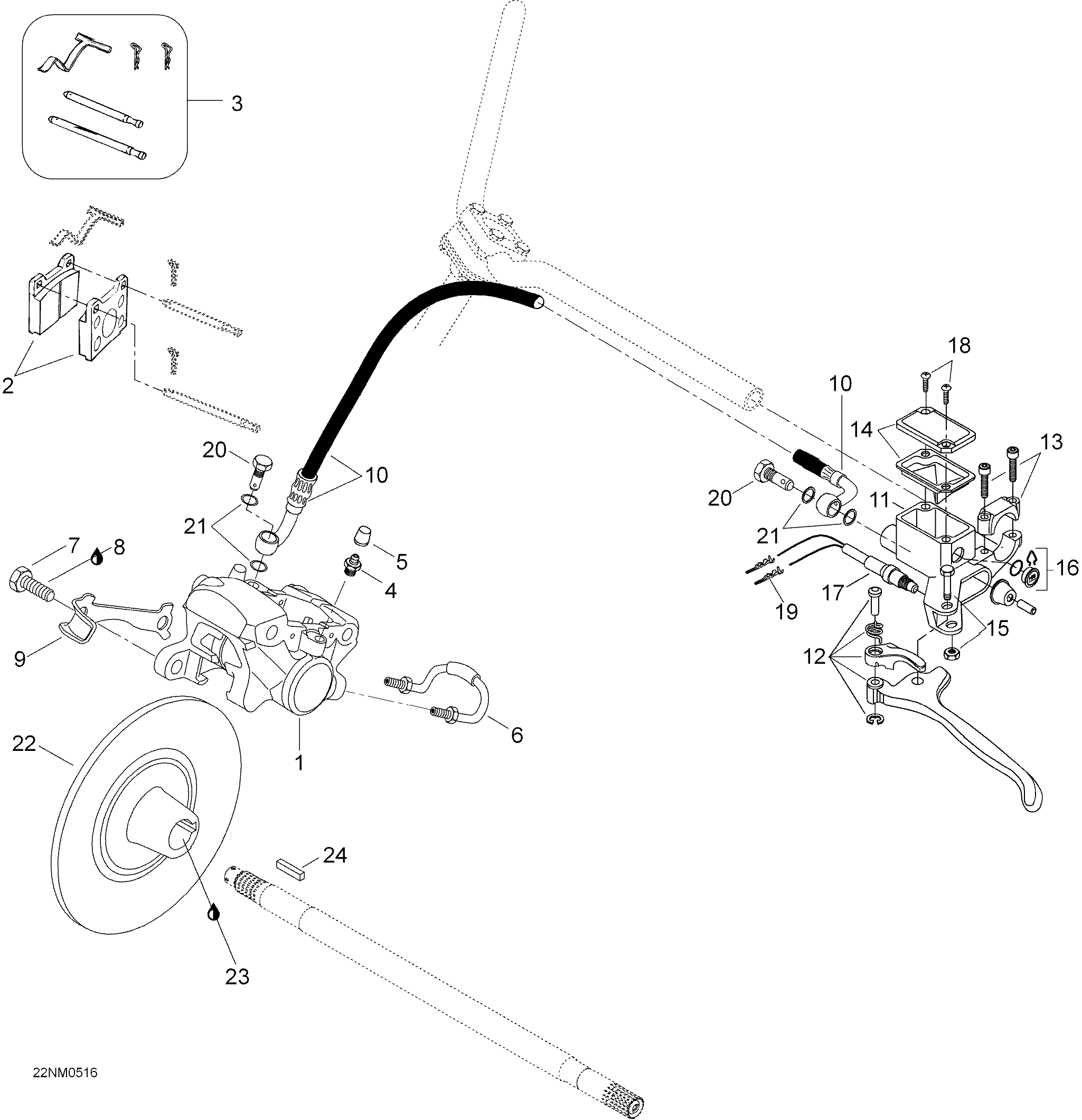

06- Brake для BRP Lynx Explorer 550 - 2005
-
№АртикулНазвание
-
1507032411 Caliber ass'y. Includes 1 to 6Caliber ass'y. Includes 1 to 6
-
2415053600 Brake Lining KitBrake Lining Kit
-
3415128865 Kit (pins, Retainers, Spring)Kit (pins, Retainers, Spring)
-
4414989800 Bleeder ScrewBleeder Screw
-
5414989700 BootBoot
-
6414989900 Rigid TubingRigid Tubing
-
740049 Hex. screw M10 x 35Hex. screw M10 x 35
-
8293800060 Loctite 243, 250 mlLoctite 243, 250 ml
-
9507032316 Locking TabLocking Tab
-
10507032237 HoseHose
-
11507032322 Master cylinder ass'y. Includes 11 to 18Master cylinder ass'y. Includes 11 to 18
-
12507032268 Brake Short Lever Ass’YBrake Short Lever Ass’Y
-
13415029800 Clamp Ass’YClamp Ass’Y
-
14415029900 CapCap
-
15415030000 Pin Ass’YPin Ass’Y
-
16414990600 WindowWindow
-
17507032334 MicroswitchMicroswitch
-
18216141260 Screw M4 X 12Screw M4 X 12
-
1942603 Male terminalMale terminal
-
20414920500 Banjo BoltBanjo Bolt
-
21414920600 WasherWasher
-
22507032203 Brake DiskBrake Disk
-
23293800070 Loctite 767, Antiseize Lubricant, 8 OzLoctite 767, Antiseize Lubricant, 8 Oz
-
24507021300 KeyKey
