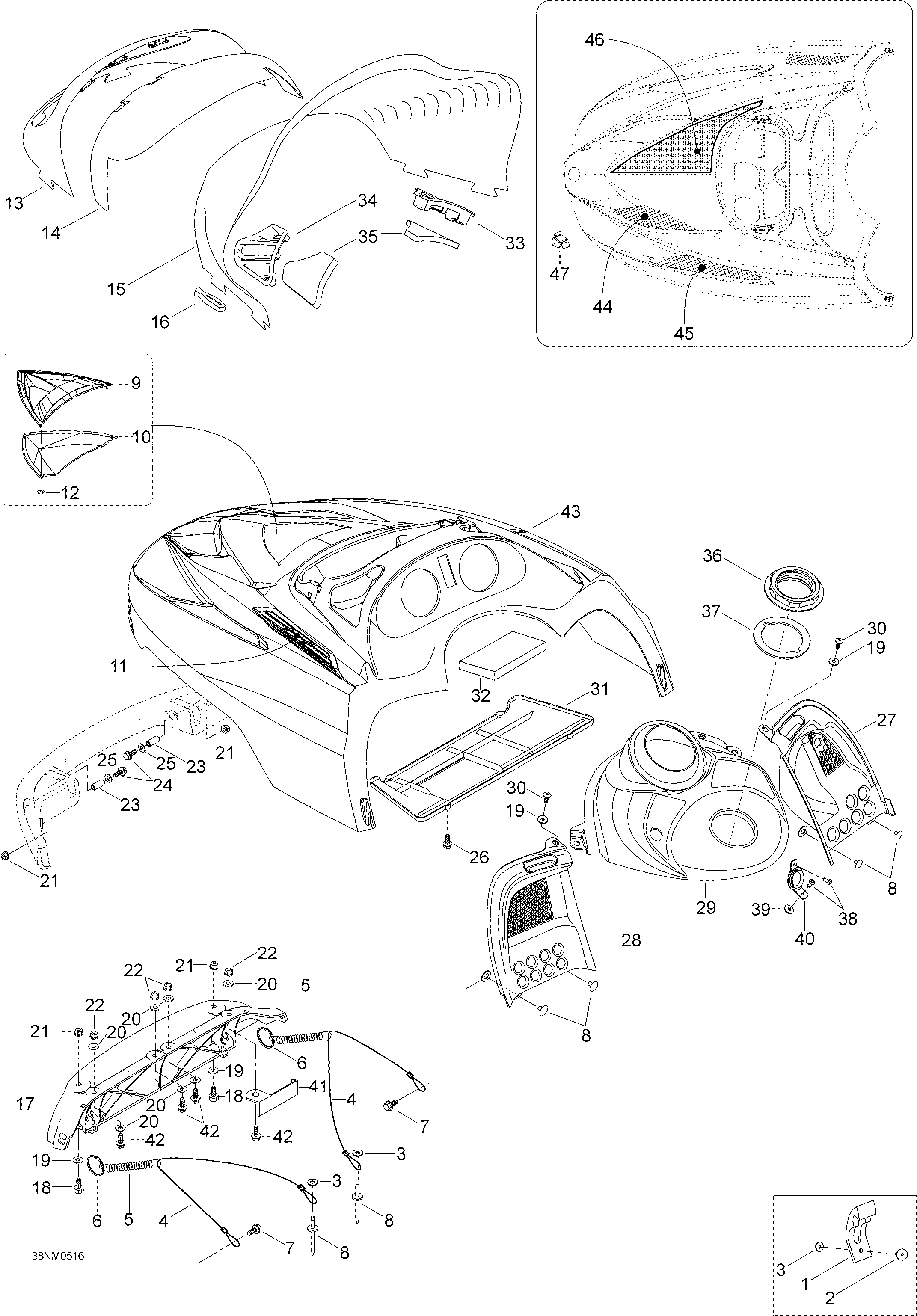

09- Hood, 550 для BRP Lynx Explorer 550 - 2005
-
№АртикулНазвание
-
1570027100 Hood LatchHood Latch
-
236037 RivetRivet
-
320008 Washer 5,3 mmWasher 5,3 mm
-
4549882 Retainer cableRetainer cable
-
5415043300 SpringSpring
-
6415058300 RingRing
-
740177 Screw M4.8 x 16Screw M4.8 x 16
-
836036 RivetRivet
-
95247486 GrillGrill
-
105247487 Inlet ductInlet duct
-
115247488 GrillGrill
-
1241034 CirclipCirclip
-
13517302158 Headlamp Moulding, Deep BlackHeadlamp Moulding, Deep Black
-
14517302003 Windshield SupportWindshield Support
-
15517302560 High WindshieldHigh Windshield
-
16570023800 Windshield LatchWindshield Latch
-
17517302631 HingeHinge
-
1840381 Socket head screw M6 x 20Socket head screw M6 x 20
-
1920117 WasherWasher
-
2020009 Washer A6,4Washer A6,4
-
2133200 Elastic flanged nut M6Elastic flanged nut M6
-
2233010 Elastic stop nut M6Elastic stop nut M6
-
23517302179 BushingBushing
-
2440003 Hex. screw M6 x 35Hex. screw M6 x 35
-
2520003 Washer A6,4Washer A6,4
-
26243141640 Hex Screw M4.8 X 16Hex Screw M4.8 X 16
-
27517302005 RH Console. Explorer 550RH Console. Explorer 550
-
28517302006 LH ConsoleLH Console
-
29605352305 Center console. Explorer 550Center console. Explorer 550
-
30732600030 ScrewScrew
-
31517302836 Air Intake PlateAir Intake Plate
-
32605350268 Air intake foamAir intake foam
-
33517302024 RH Air Intake GrillRH Air Intake Grill
-
34517302025 LH Air Intake GrillLH Air Intake Grill
-
35605450267 Air intake foamAir intake foam
-
36517302043 Console NutConsole Nut
-
375447116 GasketGasket
-
3836002 RivetRivet
-
39517302286 Rubber StopperRubber Stopper
-
40517302129 Rope GuideRope Guide
-
415448263 R.H. SupportR.H. Support
-
415448264 L.H. SupportL.H. Support
-
4240030 Hex. screw M6 x 20Hex. screw M6 x 20
-
43605151292 Hood, Blue Jay. Explorer 550Hood, Blue Jay. Explorer 550
-
445346887 L.H. Front grillL.H. Front grill
-
445346888 R.H. Front grillR.H. Front grill
-
455346889 L.H. Rear grillL.H. Rear grill
-
46414631900 Acoustic FoamAcoustic Foam
-
47517302785 ClipClip
