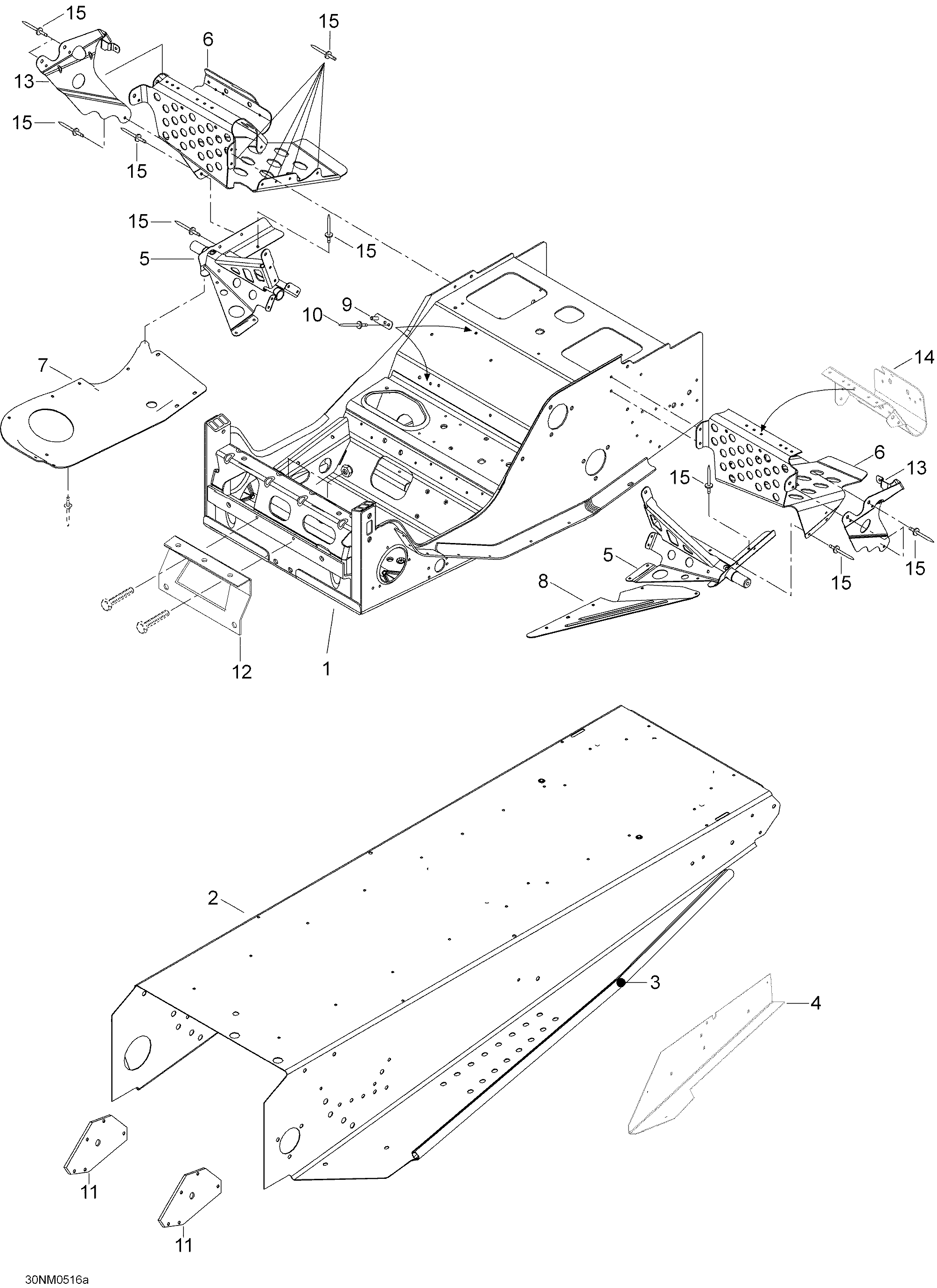

09- Frame, 550 для BRP Lynx Explorer 550 - 2005
-
№АртикулНазвание
-
1605151364 Frame ass'y. Innehaller delar 1-15, Explorer 550. Includes 1-15, Explorer 550Frame ass'y. Innehaller delar 1-15, Explorer 550. Includes 1-15, Explorer 550
-
35348046 Support. Explorer 550. Explorer 550Support. Explorer 550. Explorer 550
-
4605350430 L.H. Support. Explorer 550. Explorer 550L.H. Support. Explorer 550. Explorer 550
-
4605350431 R.H. Support. Explorer 550. Explorer 550R.H. Support. Explorer 550. Explorer 550
-
5605151358 R.H. supportR.H. support
-
5605151359 L.H. supportL.H. support
-
6605250239 R.H. front footrestR.H. front footrest
-
6605250240 L.H. front footrestL.H. front footrest
-
7518322636 RH Bottom Pan PlateRH Bottom Pan Plate
-
8518322119 LH Reinforcement PlateLH Reinforcement Plate
-
9518319728 Double bracketDouble bracket
-
1036489 RivetRivet
-
115348321 SupportSupport
-
125346111 Support plateSupport plate
-
135146912 R.H. footrest reinforcem.R.H. footrest reinforcem.
-
135146913 L.H. footrest reinforcem.L.H. footrest reinforcem.
-
145146917 R.H. toe holdR.H. toe hold
-
145146918 R.H. toe holdR.H. toe hold
-
1536108 RivetRivet
