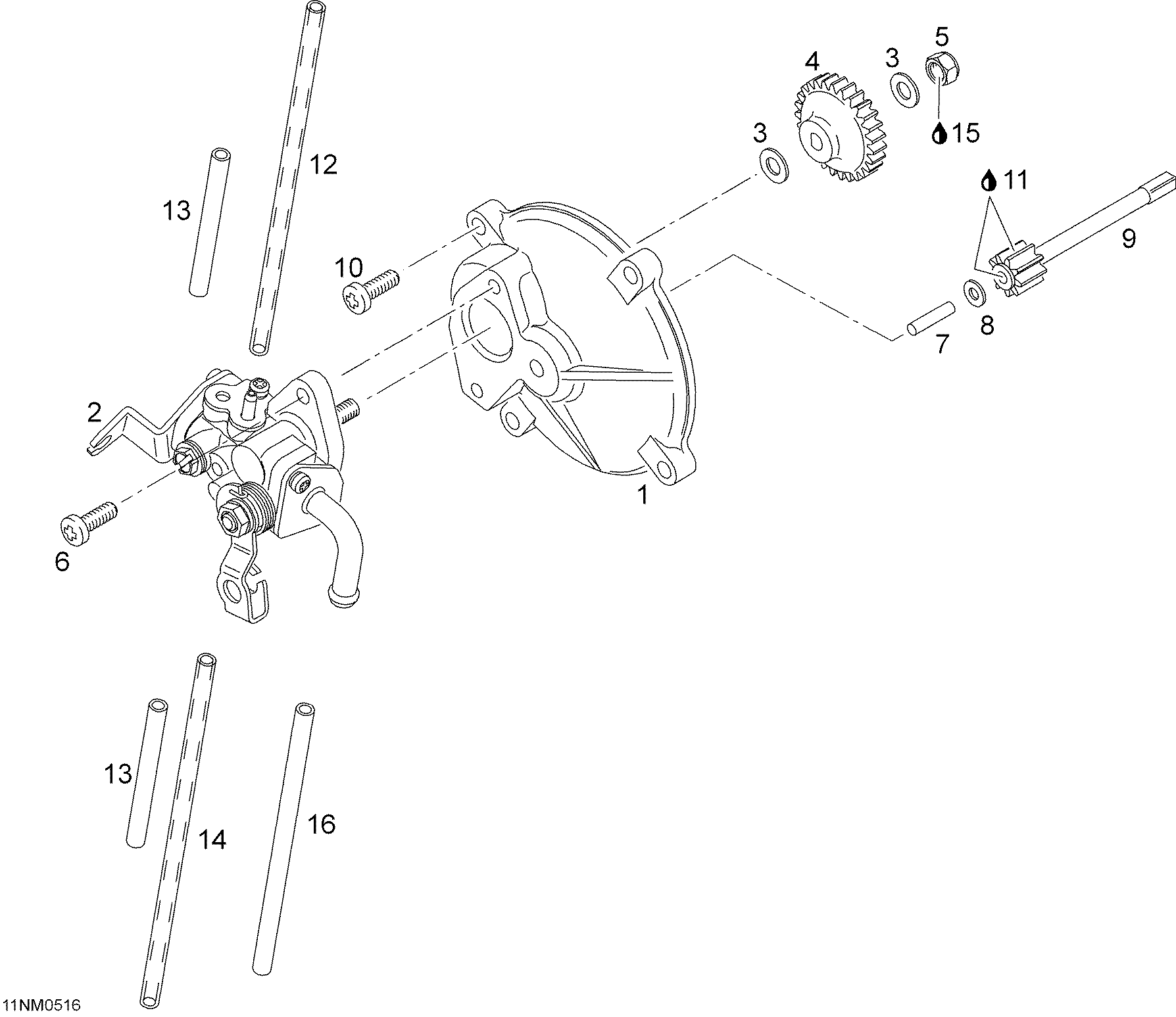

02- Oil Pump, 550 для BRP Lynx Explorer 550 - 2005
-
№АртикулНазвание
-
1420910160 Pump Mounting FlangePump Mounting Flange
-
3420927945 WasherWasher
-
4420935930 Gear, Z-27Gear, Z-27
-
5232561414 Lock nut, M6Lock nut, M6
-
6420841971 ScrewScrew
-
7420832260 PinPin
-
8420244073 WasherWasher
-
9420935970 Gear Z-9Gear Z-9
-
10420841976 Screw M5.5 x 20Screw M5.5 x 20
-
11413707000 Molykote 111Molykote 111
-
12420660491 Oil line, 270mmOil line, 270mm
-
13420960729 Isolation hose, 150mmIsolation hose, 150mm
-
14420660429 Oil line, 380mmOil line, 380mm
