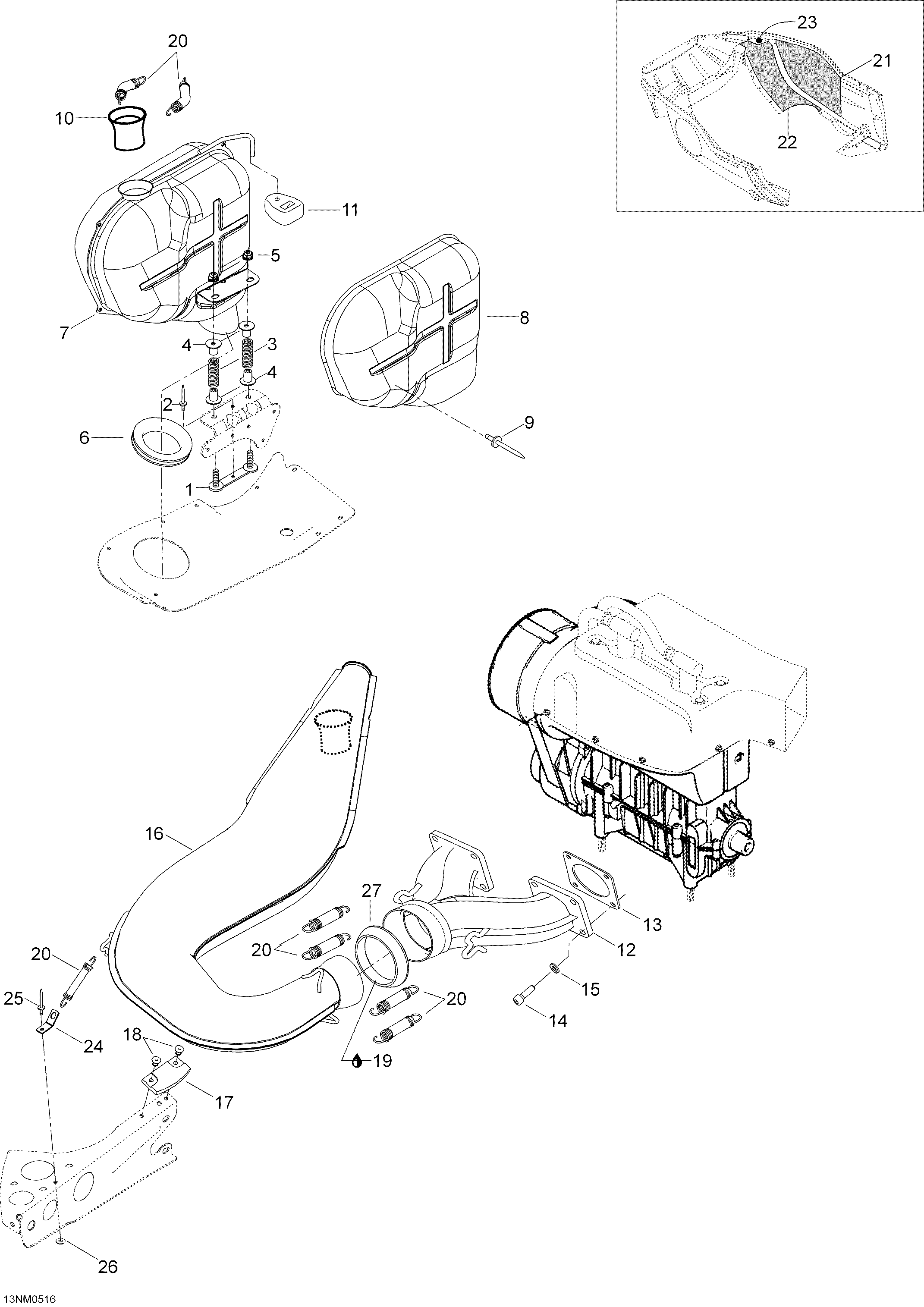

01- Exhaust System, 550 для BRP Lynx Explorer 550 - 2005
-
№АртикулНазвание
-
15447628 Bracket. Explorer 550Bracket. Explorer 550
-
236489 RivetRivet
-
3414913700 SpringSpring
-
4514053343 GuideGuide
-
533029 Elastic stop nut M8Elastic stop nut M8
-
6570039000 Exhaust GrommetExhaust Grommet
-
7514053648 Muffler Ass’Y. Includes 7 to 9, Explorer 550Muffler Ass’Y. Includes 7 to 9, Explorer 550
-
8514053389 Heat ShieldHeat Shield
-
9390910000 Pop Rivet 3/16”Pop Rivet 3/16”
-
11514052704 Rubber BumperRubber Bumper
-
12420673065 Exhaust Manifold. Explorer 550Exhaust Manifold. Explorer 550
-
13420831849 Gasket 1.0 mm. Explorer 550Gasket 1.0 mm. Explorer 550
-
1440135 Socket head screw M8 x 30Socket head screw M8 x 30
-
1520014 Lock washer A8Lock washer A8
-
16605150552 Tuned pipe. Explorer 550Tuned pipe. Explorer 550
-
17570044100 Rubber PadRubber Pad
-
1836037 RivetRivet
-
19293800090 Sealant, Loctite, 80 mlSealant, Loctite, 80 ml
-
20415107100 SpringSpring
-
21514053363 Reflective SheetReflective Sheet
-
22514052718 Reflective SheetReflective Sheet
-
23514053390 Reflective SheetReflective Sheet
-
245447086 Spring bracketSpring bracket
-
2536489 RivetRivet
-
2620008 Washer 5,3 mmWasher 5,3 mm
-
27514053644 Exhaust Gasket. Explorer 550Exhaust Gasket. Explorer 550
