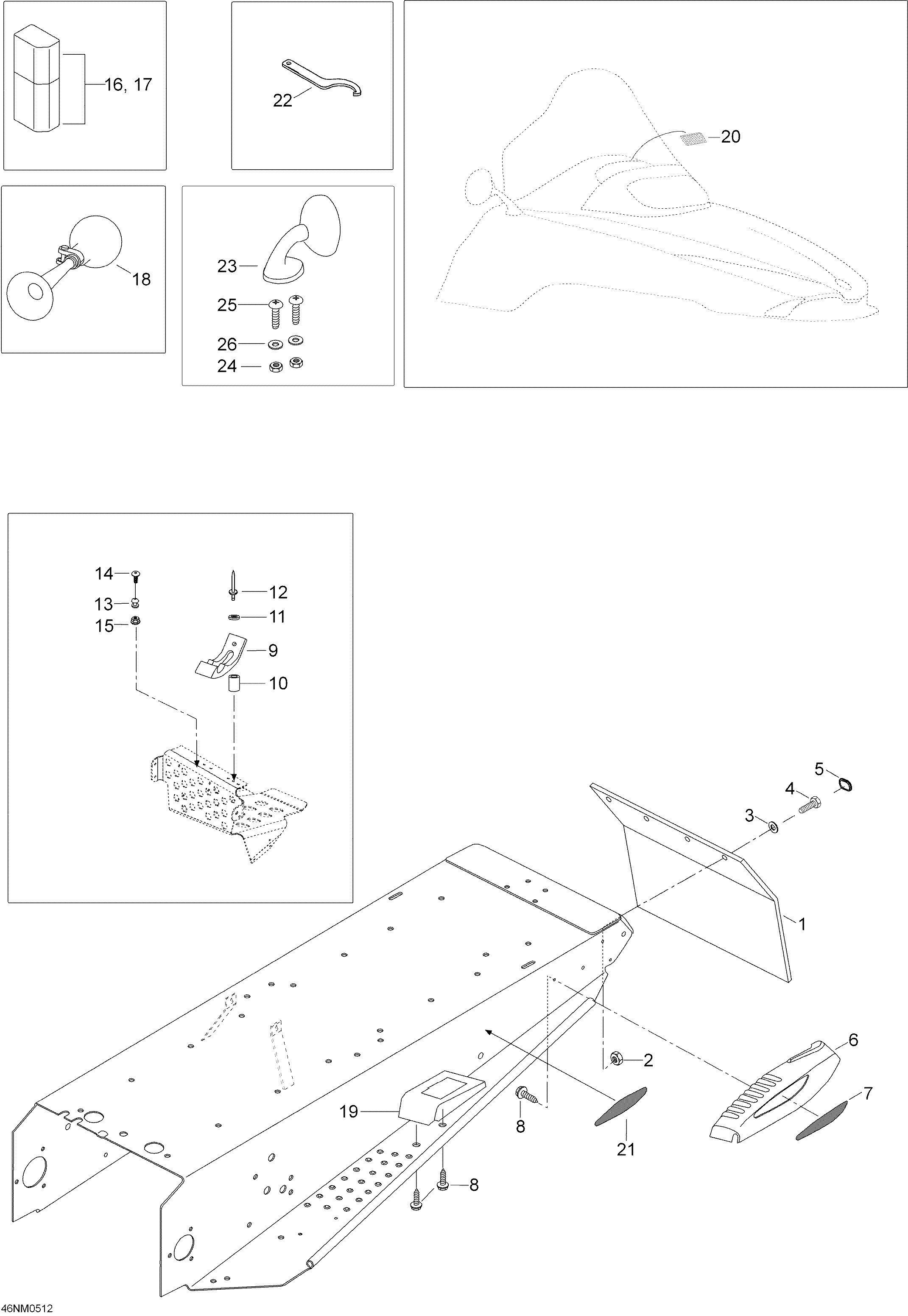

09- Utilities, 550 для BRP Lynx Explorer 550 - 2005
-
№АртикулНазвание
-
15246859 Snow quardSnow quard
-
233200 Elastic flanged nut M6Elastic flanged nut M6
-
320009 Washer A6,4Washer A6,4
-
440078 Screw M6 x 22Screw M6 x 22
-
5415073300 CapCap
-
6861777700 RH Moulding KitRH Moulding Kit
-
6861777800 LH Moulding KitLH Moulding Kit
-
7516000241 RH Reflector (Yellow) (Europe)RH Reflector (Yellow) (Europe)
-
7516000242 LH Reflector (Yellow) (Europe)LH Reflector (Yellow) (Europe)
-
840870 ScrewScrew
-
9531955 LatchLatch
-
10543417 SleeveSleeve
-
11543392 WasherWasher
-
1236072 RivetRivet
-
13605449087 Counter RollerCounter Roller
-
1440168 Screw M4 x 25Screw M4 x 25
-
1533008 Elastic stop nut M4Elastic stop nut M4
-
16605350524 Tool setTool set
-
17572036310 Tool Box Ass’Y.Tool Box Ass’Y.
-
1821003 HornHorn
-
19572088700 RH FootrestRH Footrest
-
19572088800 LH FootrestLH Footrest
-
2021060 Reflector, brightReflector, bright
-
2121135 Reflector, yellowReflector, yellow
-
22529032900 Adjustment WrenchAdjustment Wrench
-
23414971910 RH Mirror. Explorer 550RH Mirror. Explorer 550
-
23414972010 LH Mirror. Explorer 550LH Mirror. Explorer 550
-
2433008 Elastic stop nut M4. Explorer 550Elastic stop nut M4. Explorer 550
-
2540167 Screw M4 x 16. Explorer 550Screw M4 x 16. Explorer 550
-
2620001 Washer A4,3. Explorer 550Washer A4,3. Explorer 550
