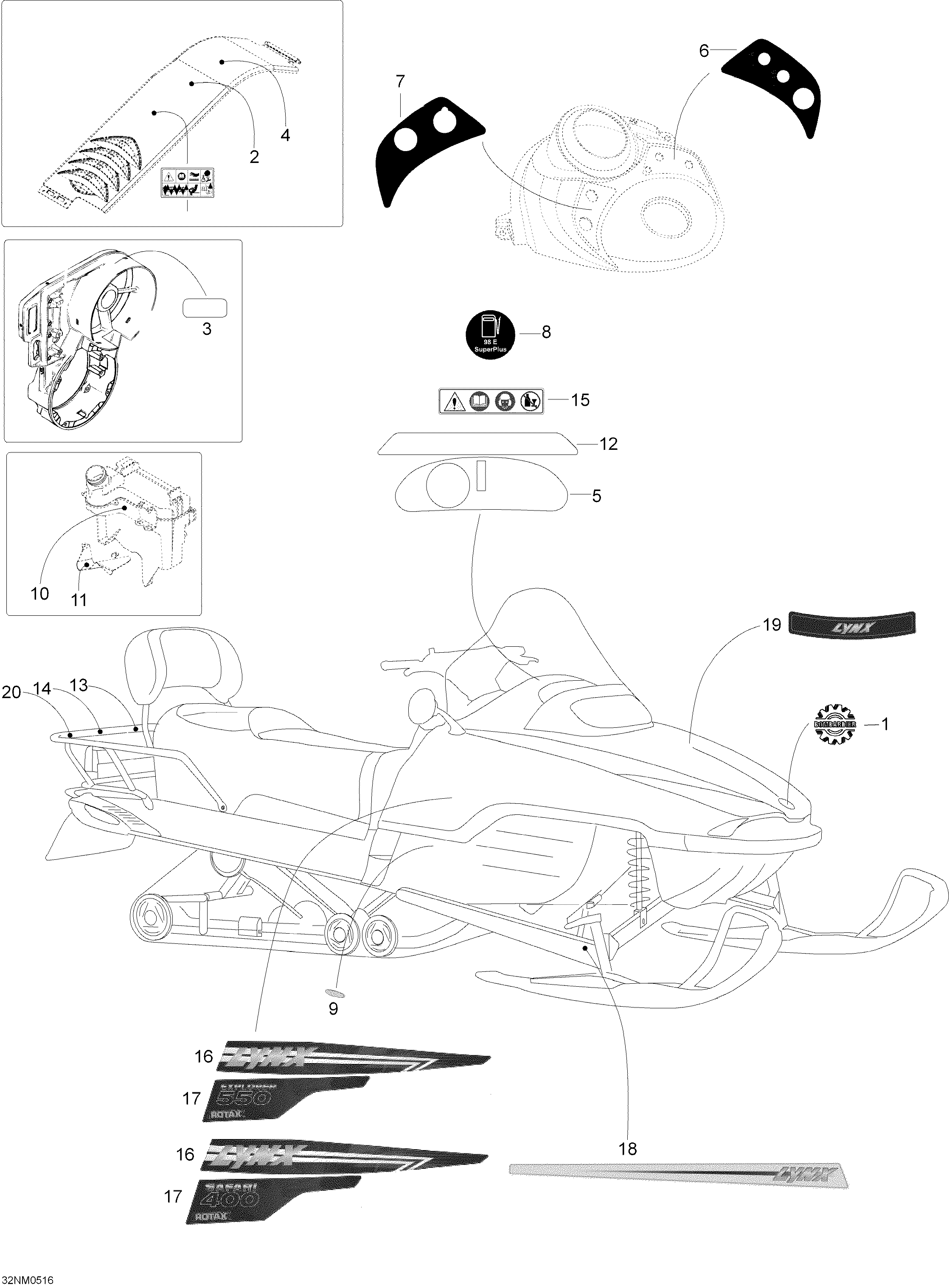

09- Decals, 550 для BRP Lynx Explorer 550 - 2005
-
№АртикулНазвание
-
1516002487 Bombardier LogoBombardier Logo
-
25447014 Pulley decalPulley decal
-
35447016 Instruction decalInstruction decal
-
45447012 Oil check decalOil check decal
-
55347662 Control panel decalControl panel decal
-
65447918 R.H. console decalR.H. console decal
-
75448062 L.H. Console decal. Explorer 550L.H. Console decal. Explorer 550
-
85447020 Fuel labelFuel label
-
9415064400 Decal - RH ReflectorDecal - RH Reflector
-
9415064401 Decal - LH ReflectorDecal - LH Reflector
-
10605449628 Label, oil levelLabel, oil level
-
11605449565 Instruction decalInstruction decal
-
125346800 Instruction decalInstruction decal
-
135447931 Instruction decalInstruction decal
-
14605448801 Caution DecalCaution Decal
-
155447124 Warning labelWarning label
-
16605351032 R.H. Hood decal, upper. Explorer 550R.H. Hood decal, upper. Explorer 550
-
16605351033 L.H. Hood decal, upper. Explorer 550L.H. Hood decal, upper. Explorer 550
-
17605351034 R.H. lower decal, hood. Explorer 550R.H. lower decal, hood. Explorer 550
-
17605351035 L.H. lower decal, hood. Explorer 550L.H. lower decal, hood. Explorer 550
-
18605351036 Decal, swing arm R.H.Decal, swing arm R.H.
-
18605351037 Decal, swing arm L.H.Decal, swing arm L.H.
-
19605351038 Hood decal, frontHood decal, front
-
20605448799 Pulling Bar Decal. Safari 400 E, Explorer 550Pulling Bar Decal. Safari 400 E, Explorer 550
