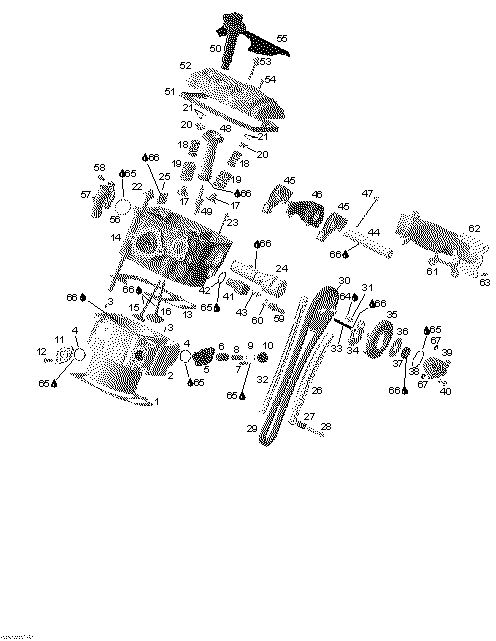

01- Cylinder and cylinder head для BRP Lynx 59 YETI - 2005
-
№АртикулНазвание
-
1420630080 GasketGasket
-
2420923948 Cylinder ass’y. Includes 2 to 3Cylinder ass’y. Includes 2 to 3
-
3420929650 Drive pin 5 x 10Drive pin 5 x 10
-
4420430370 O-ringO-ring
-
5420236510 Chain tensioner housingChain tensioner housing
-
6420236520 Chain tensioner plungerChain tensioner plunger
-
7420440232 Screw M6 x 25Screw M6 x 25
-
8420238120 SpringSpring
-
9420250890 O-ringO-ring
-
10420641150 Plug screwPlug screw
-
11420960810 Connecting coverConnecting cover
-
12420440232 Screw M6x25Screw M6x25
-
13420950660 GasketGasket
-
14420613475 Cylinder head ass’yCylinder head ass’y
-
15420254027 Exhaust valve 31 mmExhaust valve 31 mm
-
16420254290 Intake valve 38 mmIntake valve 38 mm
-
17420630200 Valve stem sealValve stem seal
-
18420838280 Valve spring insideValve spring inside
-
19420238180 Valve springValve spring
-
20420254280 Valve spring retainerValve spring retainer
-
21420253645 Valve cotterValve cotter
-
22420641020 Screw M11 x 215Screw M11 x 215
-
23420440612 Screw M6 x 105Screw M6 x 105
-
24420837456 Camshaft (rear)Camshaft (rear)
-
25420851692 Camshaft guideCamshaft guide
-
26420236540 Chain tension guideChain tension guide
-
27420247100 Distance sleeveDistance sleeve
-
28420440272 Screw M6 x 35Screw M6 x 35
-
29420297957 Camshaft chainCamshaft chain
-
30420254307 Timing gear (38 teeth)Timing gear (38 teeth)
-
31420841339 Screw M6 x 12Screw M6 x 12
-
32420236500 Chain guideChain guide
-
33420220790 Deko shaftDeko shaft
-
34420231064 Centrifugal weight assyCentrifugal weight assy
-
35420660034 CoverCover
-
36420627494 Thrust washerThrust washer
-
37420630125 V-ringV-ring
-
38420950870 O-ringO-ring
-
39420610272 Camshaft coverCamshaft cover
-
40420440162 Screw M6 x 16Screw M6 x 16
-
41420664040 Camshaft sensor assy. Includes 41 to 42Camshaft sensor assy. Includes 41 to 42
-
43420440162 Screw M6 x 16Screw M6 x 16
-
44420854599 Rockerarmshaft assyRockerarmshaft assy
-
45420254326 Rockerarm assy, exhaustRockerarm assy, exhaust
-
46420254315 Rockerarm assy, inletRockerarm assy, inlet
-
47420641080 Screw M8 x 72Screw M8 x 72
-
48420851750 Spark plug pipeSpark plug pipe
-
49707000246 Spark plug, DCP-R8ESpark plug, DCP-R8E
-
50420664020 Stick coilStick coil
-
51420630071 Profile sealing ringProfile sealing ring
-
52420610185 Valve coverValve cover
-
53420440307 Screw M6 x 30Screw M6 x 30
-
54420641488 Screw M6 x 10Screw M6 x 10
-
55420660201 Valve coverValve cover
-
56420950890 O-ringO-ring
-
57420811700 Connecting coverConnecting cover
-
58420440232 Screw M6 x 25Screw M6 x 25
-
59420440960 Hose nippleHose nipple
-
60420250640 GasketGasket
-
61420950680 GasketGasket
-
62420973781 Exhaust manifold ass’yExhaust manifold ass’y
-
63420440162 Screw M6 x 16Screw M6 x 16
-
64293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
65293550014 Grease, super lubeGrease, super lube
-
66293600054 Oil, 0 W 40, 12 x 1 literOil, 0 W 40, 12 x 1 liter
-
67420230415 Gasket ringGasket ring
