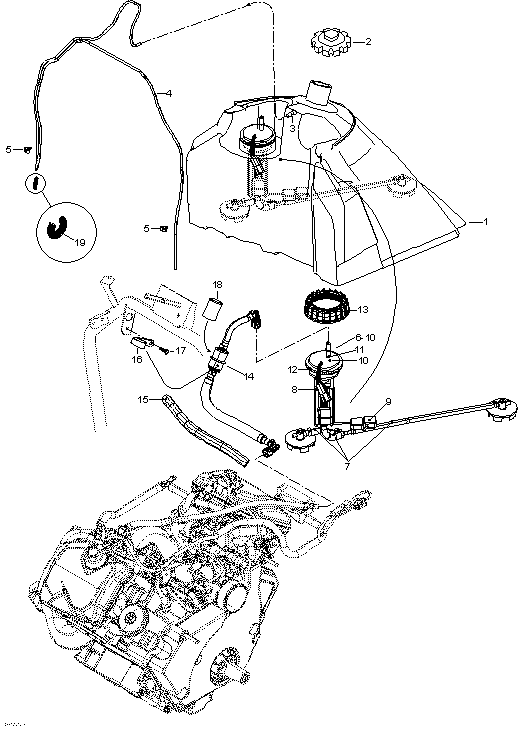

02- Fuel System для BRP Lynx 59 YETI - 2005
-
№АртикулНазвание
-
1605150515 Fuel tankFuel tank
-
2605450901 CapCap
-
319051 Straight fittingStraight fitting
-
439035 HoseHose
-
5513032923 Tube clampTube clamp
-
6513033101 Fuel pump assy. Includes 6 to 11Fuel pump assy. Includes 6 to 11
-
7861301700 Fuel hose kitFuel hose kit
-
8861301800 Resistor card kitResistor card kit
-
9861301900 Float lever kitFloat lever kit
-
10861302000 Pump kitPump kit
-
11861302100 Regulator kitRegulator kit
-
1219186 GasketGasket
-
13513033040 CoverCover
-
14513033106 Fuel filter + lineFuel filter + line
-
1527127 TubingTubing
-
16513033047 BracketBracket
-
1740327 Hex. screw M6 x 12Hex. screw M6 x 12
-
1839065 TubingTubing
-
1925003 SpringSpring
-
2031035 CirclipCirclip
