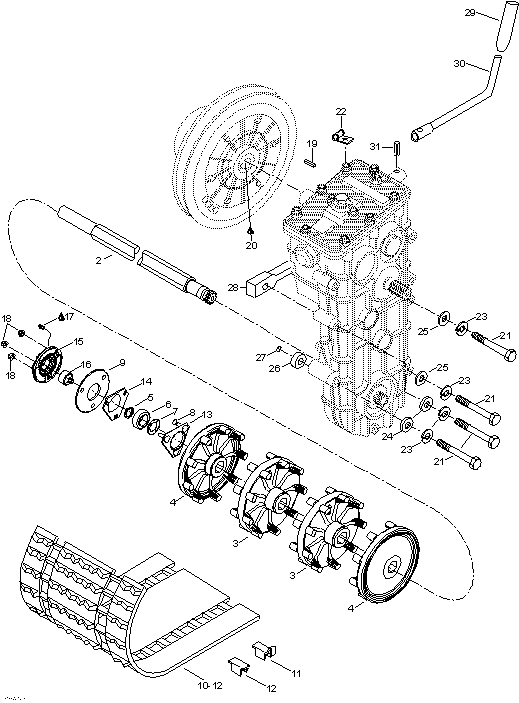

05- Drive System для BRP Lynx 59 YETI - 2005
-
№АртикулНазвание
-
1605250539 Drive axle assy. Includes 1 to 4Drive axle assy. Includes 1 to 4
-
2605249455 Drive axleDrive axle
-
3414931800 Sprocket 8-teethSprocket 8-teeth
-
4415067400 Sprocket 8-teethSprocket 8-teeth
-
5371910200 CirclipCirclip
-
6504152009 Ball bearingBall bearing
-
7501017400 Ball bearing protectorBall bearing protector
-
8414484400 O-ringO-ring
-
95446641 PlatePlate
-
1013070 Track (31.8). Includes 10 to 12Track (31.8). Includes 10 to 12
-
115318323 Cleat guideCleat guide
-
125318322 Slide guideSlide guide
-
13504151860 Bearing housingBearing housing
-
14501025000 FlangeFlange
-
15504152173 FlangeFlange
-
16504152040 Magnetic adaptorMagnetic adaptor
-
17293550033 Synthetic grease, 400gSynthetic grease, 400g
-
1833201 Elastic flanged nut M8Elastic flanged nut M8
-
19418763 KeyKey
-
20293800070 Loctite 767, 8ozLoctite 767, 8oz
-
2140299 Hex. screw M8 x 100Hex. screw M8 x 100
-
225443134 ClampClamp
-
2320014 Lock washer A8Lock washer A8
-
2420077 Washer A8.4Washer A8.4
-
2520104 Washer, hardened M8Washer, hardened M8
-
26605450155 SleeveSleeve
-
27506151140 O-ringO-ring
-
28605351366 Connecting barConnecting bar
-
2928247 ButtonButton
-
30605350153 Shift handleShift handle
-
3141007 Spring keySpring key
