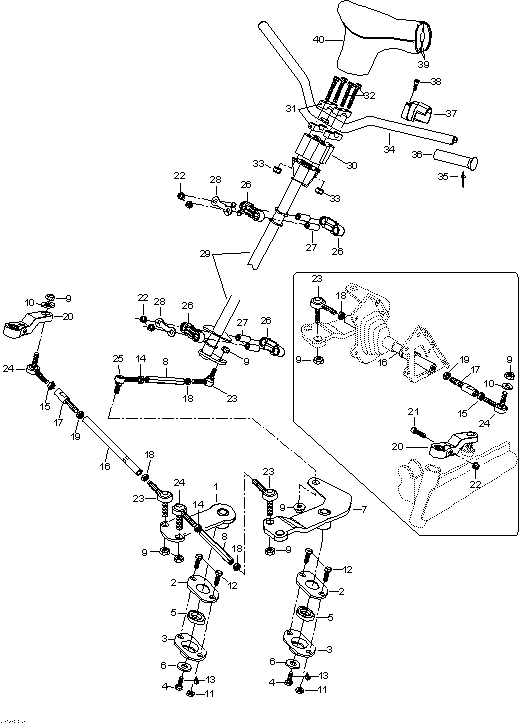

07- Steering System для BRP Lynx 59 YETI - 2005
![](/wa-data/public/shop/sheme/bombardier/lynx/32802515-a406-4973-b65f-41521f9373ce.png)
-
№АртикулНазвание
-
1605352300 R.H. Lever weldR.H. Lever weld
-
25345380 PlatePlate
-
3605350644 Bearing SupportBearing Support
-
440337 Screw M8 x 16Screw M8 x 16
-
531032 BearingBearing
-
65446279 WasherWasher
-
7605352299 L.H. Lever weldL.H. Lever weld
-
8605448308 Tie rodTie rod
-
933023 Nut elastic M10Nut elastic M10
-
1020105 Washer, hardened M10Washer, hardened M10
-
1133011 Elastic stop nut M8Elastic stop nut M8
-
1240336 Screw M8 x 20Screw M8 x 20
-
13293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
1433019 Nut M10Nut M10
-
15732610010 R.H. Mutter M10R.H. Mutter M10
-
16605450794 Tie rodTie rod
-
17605450793 AdjusterAdjuster
-
1833017 Nut M10 L.H.Nut M10 L.H.
-
19732610011 Nut M10 L.H.Nut M10 L.H.
-
205348261 Steering ArmSteering Arm
-
2140828 Socket head screw M8 x 35Socket head screw M8 x 35
-
2233201 Elastic flanged nut M8Elastic flanged nut M8
-
23506151495 Ball joint, leftBall joint, left
-
24506151492 R.H. Ball jointR.H. Ball joint
-
25605450895 R.H. Ball jointR.H. Ball joint
-
26506150400 Half-housingHalf-housing
-
27506150500 Bushing-housingBushing-housing
-
28506150600 Plate stopperPlate stopper
-
29605150632 Steering paleSteering pale
-
30605351275 Extension, 90 mmExtension, 90 mm
-
31548448 FasteningFastening
-
3240209 Socket head screw M8 x 130Socket head screw M8 x 130
-
3333027 Elastic stop nut M8Elastic stop nut M8
-
34605251368 Steering handle barSteering handle bar
-
3536005 RivetRivet
-
365340464 HandleHandle
-
37506151566 AdaptorAdaptor
-
3840390 Socket head screw M8 x 20Socket head screw M8 x 20
-
39605250567 Foam, front partFoam, front part
-
39605250568 Foam, rear partFoam, rear part
-
40605250569 CoverCover
