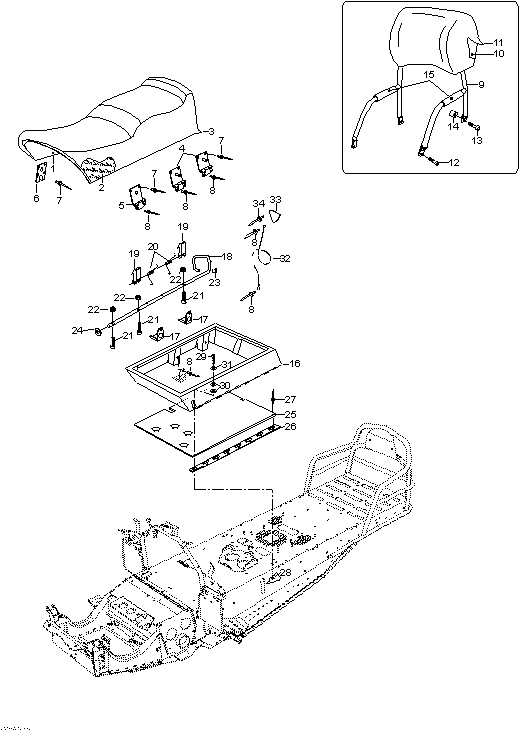

09- Seat для BRP Lynx 59 YETI - 2005
-
№АртикулНазвание
-
1519394 Seat baseSeat base
-
2605150323 FoamFoam
-
3605150324 CoverCover
-
4549874 HingeHinge
-
55440581 HingeHinge
-
6549732 Lock plateLock plate
-
736071 RivetRivet
-
836489 RivetRivet
-
95245664 BackrestBackrest
-
10539399 FoamFoam
-
11605352237 CoverCover
-
1240388 Socket head screw M8 x 20Socket head screw M8 x 20
-
1340389 Socket head screw M8 x 30Socket head screw M8 x 30
-
145440665 SleeveSleeve
-
15415050300 GripGrip
-
16605150634 Seat boxSeat box
-
175443661 SupportSupport
-
185344987 Locking rodLocking rod
-
19605451589 Lock armLock arm
-
205444439 SpringSpring
-
2140144 Socket head screw M4 x 16Socket head screw M4 x 16
-
2233008 Elastic stop nut M4Elastic stop nut M4
-
2328019 CapCap
-
2420004 Washer A8,4Washer A8,4
-
25605352514 FoamFoam
-
265144028 L.H. Clip plateL.H. Clip plate
-
265144029 L.H. Clip plateL.H. Clip plate
-
2736083 RivetRivet
-
2833066 Nut M6Nut M6
-
2940052 Socket head screw M6 x 20Socket head screw M6 x 20
-
3020009 Washer A6.4Washer A6.4
-
3120052 Lock washer A6Lock washer A6
-
325447746 Retainer cableRetainer cable
-
33605452535 BracketBracket
-
3436071 RivetRivet
