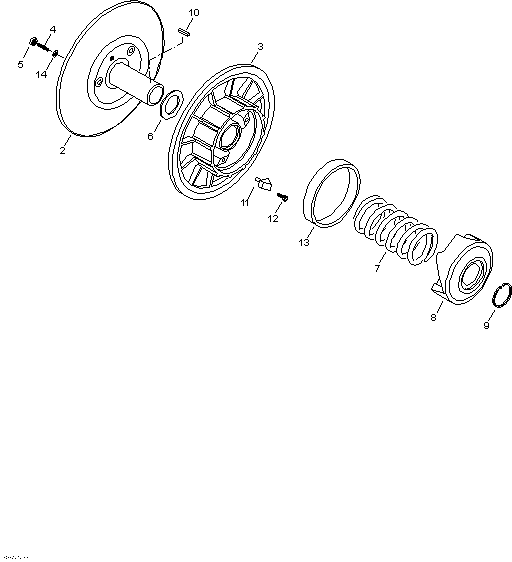

05- Pulley System 3 для BRP Lynx 59 YETI - 2005
-
№АртикулНазвание
-
2140065 Fixed flangeFixed flange
-
3140066 Sliding flangeSliding flange
-
5232061414 NutNut
-
6504099600 WasherWasher
-
7140069 Release spring, blackRelease spring, black
-
8140067 Cam 40/30 degr.Cam 40/30 degr.
-
9371903100 CirclipCirclip
-
10417119400 KeyKey
-
11140068 Shoe cam sliderShoe cam slider
-
13140053 BushingBushing
-
14420245370 WasherWasher
