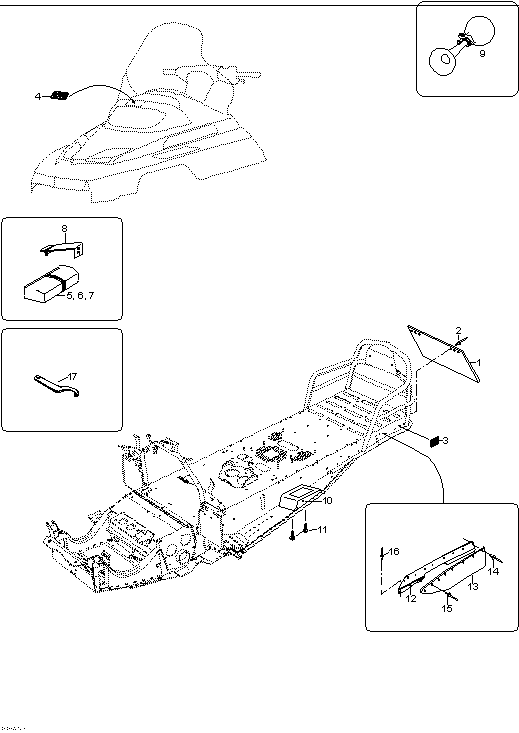

09- Utilities для BRP Lynx 59 YETI - 2005
-
№АртикулНазвание
-
1535437 SnowquardSnowquard
-
236036 RivetRivet
-
321121 Reflector, yellowReflector, yellow
-
421060 Reflector, vitReflector, vit
-
5605352219 ToolsetToolset
-
6708200041 Tool boxTool box
-
7572036400 Cover, tool boxCover, tool box
-
85344443 Spring plateSpring plate
-
921003 HornHorn
-
10414975300 R.H. FootrestR.H. Footrest
-
10414975400 L.H. FootrestL.H. Footrest
-
1140870 ScrewScrew
-
12605251248 L.H. BracketL.H. Bracket
-
12605251249 R.H. BracketR.H. Bracket
-
135142828 Side snowquardSide snowquard
-
1436097 RivetRivet
-
1536891 RivetRivet
-
1636005 RivetRivet
-
17529035582 ToolTool
