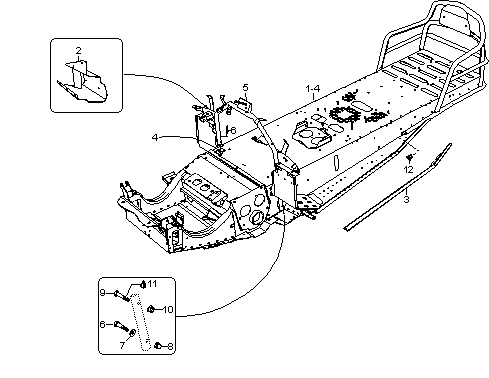

09- Frame для BRP Lynx 59 YETI - 2005
-
№АртикулНазвание
-
1605151978 Frame ass'y. Includes 1 to 5Frame ass'y. Includes 1 to 5
-
2605350839 R.H. FootrestR.H. Footrest
-
2605350840 L.H. FootrestL.H. Footrest
-
3605250773 L.H. SupportL.H. Support
-
3605250774 R.H. SupportR.H. Support
-
4605351505 BracketBracket
-
5605150605 Steering supportSteering support
-
640003 Hex. screw M6 x 35Hex. screw M6 x 35
-
720003 Washer A6,4Washer A6,4
-
833051 Nut M6Nut M6
-
940002 Hex. screw M6 x 40Hex. screw M6 x 40
-
1033200 Elastic flanged nut M6Elastic flanged nut M6
-
11293800060 Loctite 243 10mlLoctite 243 10ml
-
1228210 PlugPlug
