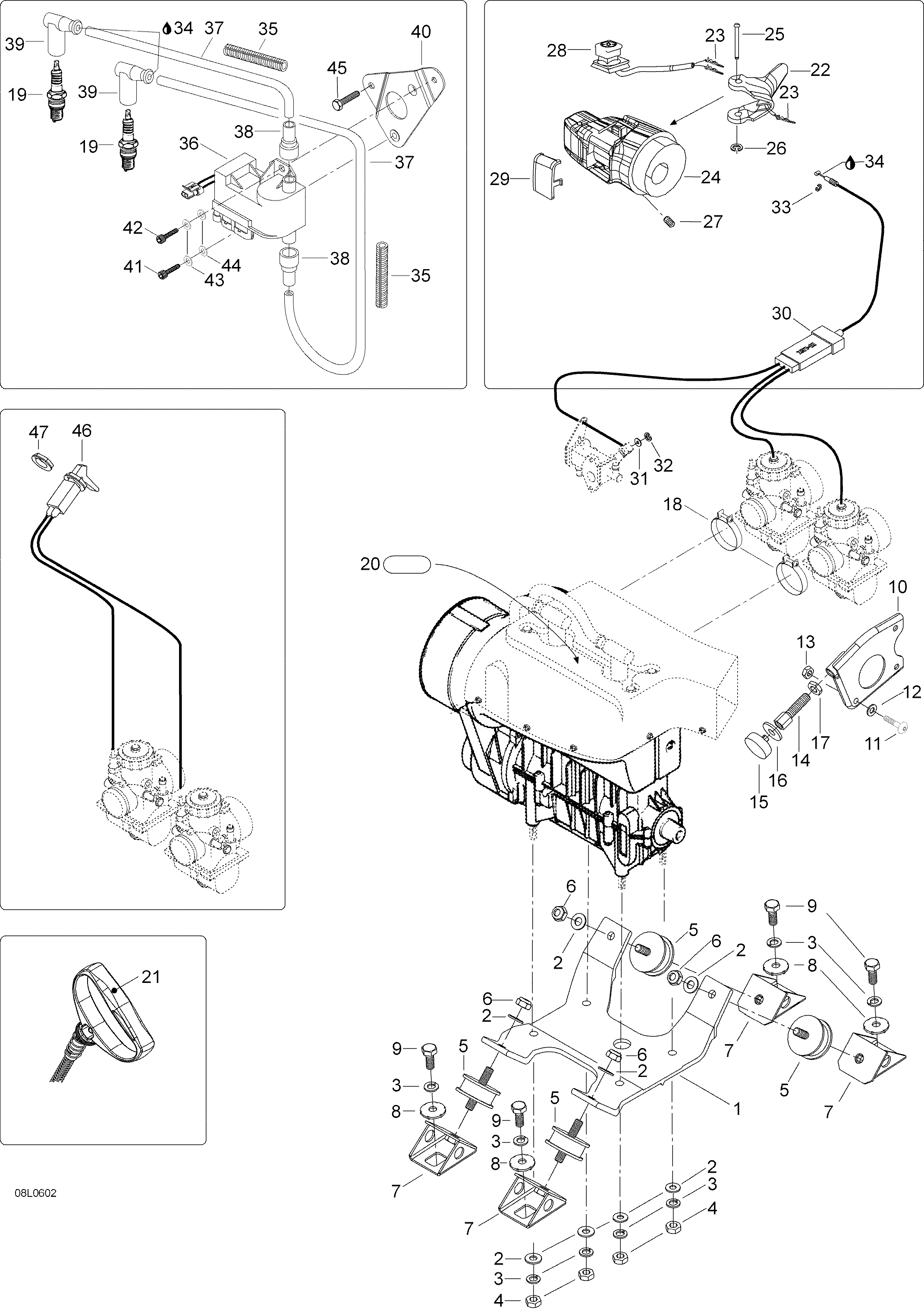

01- Engine And Engine Support для BRP Lynx Ranger 550 - 2006
-
№АртикулНазвание
-
1512059397 Engine supportEngine support
-
220005 Washer A10,5Washer A10,5
-
320113 Spring washer M10Spring washer M10
-
433004 Nut M10Nut M10
-
5570128700 RubberRubber
-
633082 Elastic stop nut M10Elastic stop nut M10
-
7512050900 Engine supportEngine support
-
8512056700 Lock washerLock washer
-
940040 Hex. screw M10 x 25Hex. screw M10 x 25
-
10512059446 Support plateSupport plate
-
1140344 Socket head screw M8 x 25Socket head screw M8 x 25
-
1220004 Washer A8,4Washer A8,4
-
1333011 Elastic stop nut M8Elastic stop nut M8
-
14512058800 Stopper screwStopper screw
-
15512059056 StopperStopper
-
165147306 WasherWasher
-
1733218 Jam nut M12Jam nut M12
-
18512059834 ClampClamp
-
19414961100 Spark plug , BR 9 ESSpark plug , BR 9 ES
-
20516000986 Decal, spark plugDecal, spark plug
-
21572084400 GripGrip
-
22512059624 Throttle handleThrottle handle
-
2342603 ConnectorConnector
-
24572100900 Throttle handle housingThrottle handle housing
-
25414438700 PinPin
-
26414439000 CirclipCirclip
-
27414440800 Screw M8 x 10Screw M8 x 10
-
28515175410 Switch killSwitch kill
-
29572100901 CoverCover
-
30512059625 Throttle cableThrottle cable
-
31414753300 WasherWasher
-
3231035 CirclipCirclip
-
3331038 CirclipCirclip
-
34293550004 Dielectric-rasva, 150gDielectric-rasva, 150g
-
3528012 TubingTubing
-
36512059626 Electronic box ass'y. Includes 36 to 39Electronic box ass'y. Includes 36 to 39
-
37278001268 Ignition cableIgnition cable
-
38515174900 Protection capProtection cap
-
39278000237 Spark plug connectorSpark plug connector
-
40512059494 BracketBracket
-
4140364 Socket head screw M6 x 16Socket head screw M6 x 16
-
4240052 Socket head screw M6 x 20Socket head screw M6 x 20
-
4320052 Lock washer A6Lock washer A6
-
4420003 Washer A6,4Washer A6,4
-
45209561640 Self tapping screw 6.3 x 16Self tapping screw 6.3 x 16
-
46512059441 Choke cable. Includes 46 to 47Choke cable. Includes 46 to 47
-
47512059094 Plastic nutPlastic nut
