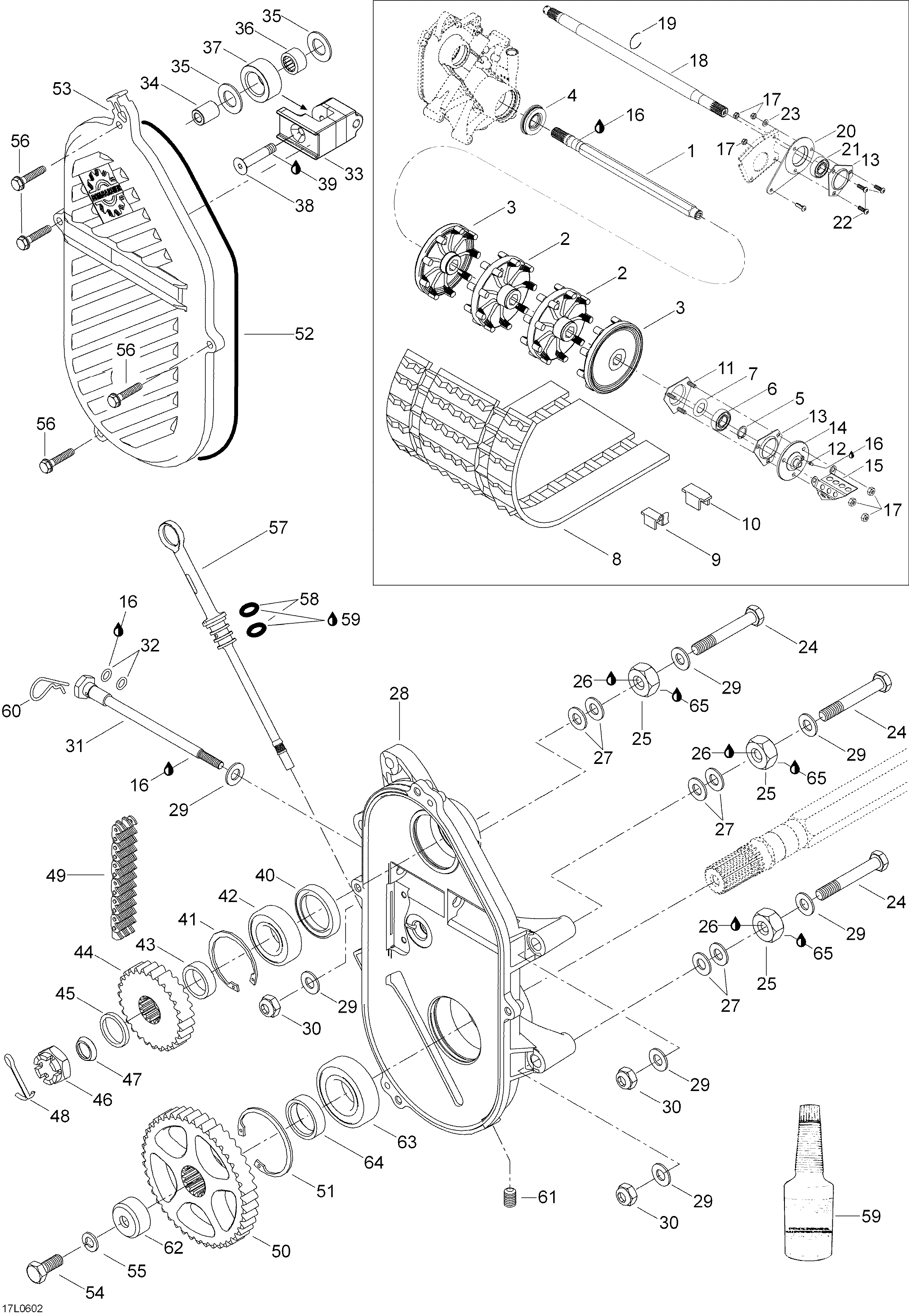

05- Drive System для BRP Lynx Ranger 550 - 2006
-
№АртикулНазвание
-
1605253641 Drive axleDrive axle
-
2414663900 Sprocket 9 teethSprocket 9 teeth
-
3414990800 Half sprocket 9 teethHalf sprocket 9 teeth
-
4504151918 Oil sealOil seal
-
531001 CirclipCirclip
-
6504152009 Ball bearingBall bearing
-
7501017400 ProtectorProtector
-
813057 Track ass'y. Includes 8 to 10Track ass'y. Includes 8 to 10
-
95318330 Guide cleatGuide cleat
-
105318329 CleatCleat
-
11504151860 Bearing housingBearing housing
-
1234011 Grease fittingGrease fitting
-
13501025000 FlangeFlange
-
14504151836 FlangeFlange
-
15517290100 Cable protectorCable protector
-
16293550033 Synthetic greaseSynthetic grease
-
1733011 Elastic stop nut M8Elastic stop nut M8
-
18504151858 CountershaftCountershaft
-
19371910000 CirclipCirclip
-
20080044200 Casting SpacerCasting Spacer
-
21504152008 Ball bearingBall bearing
-
2240344 Socket head screw M8 x 25Socket head screw M8 x 25
-
2320004 Washer A8,4Washer A8,4
-
2440190 Hex, screw M10 x 80Hex, screw M10 x 80
-
25504083800 SpacerSpacer
-
26293800060 Loctite 243, 10mlLoctite 243, 10ml
-
27504073700 ShimShim
-
28504152064 ChaincaseChaincase
-
2920005 Washer A10,5Washer A10,5
-
3033012 Elastic stop nut M10Elastic stop nut M10
-
31732601314 Screw adjustingScrew adjusting
-
32414484400 O-ringO-ring
-
33504151951 Chain tensionerChain tensioner
-
34504080200 SleeveSleeve
-
35504080300 WasherWasher
-
36405403000 Needle bearingNeedle bearing
-
37414531300 RollerRoller
-
38732601144 ScrewScrew
-
39293800005 Loctite 271, 10mlLoctite 271, 10ml
-
40504151927 SealSeal
-
41371901700 CirclipCirclip
-
42504152006 Ball bearingBall bearing
-
43504147200 ShimShim
-
44504152031 Sprocket Z19Sprocket Z19
-
45605449796 SpacerSpacer
-
46232210414 Nut M16Nut M16
-
47417000900 WasherWasher
-
4841003 PinPin
-
49504151830 Chain 72/13Chain 72/13
-
50504148500 Sprocket Z43/13Sprocket Z43/13
-
51415064300 CirclipCirclip
-
52415046400 SealSeal
-
53504152027 CoverCover
-
5440040 Hex. screw M10 x 25Hex. screw M10 x 25
-
5520068 Lock washerLock washer
-
5640340 Socket head screw M6 x 30Socket head screw M6 x 30
-
57504151703 Filler cap ass'yFiller cap ass'y
-
58414969400 O-ringO-ring
-
59413803300 Synt. chaincase oil (12 x 355ml)Synt. chaincase oil (12 x 355ml)
-
60414575600 PinPin
-
61504151921 PlugPlug
-
62501022400 SleeveSleeve
-
63504152005 Ball bearingBall bearing
-
64501021800 SleeveSleeve
-
65293800070 Loctite 767, 8 ozLoctite 767, 8 oz
