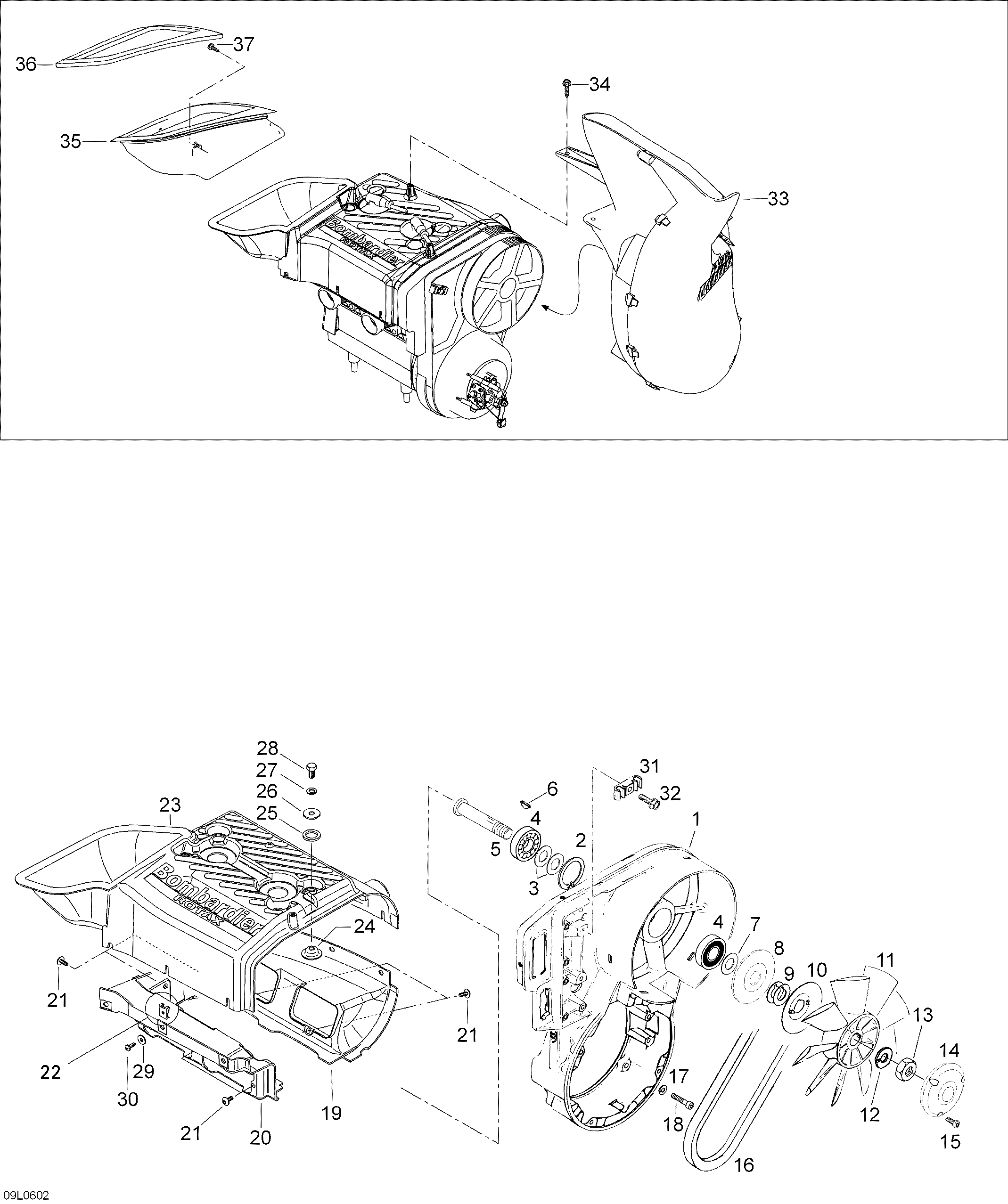

01- Fan для BRP Lynx Ranger 550 - 2006
-
№АртикулНазвание
-
1420912203 Fan housingFan housing
-
2420945880 Retaining ringRetaining ring
-
3420244585 ShimShim
-
4420832161 BearingBearing
-
5420937940 ShaftShaft
-
6420246015 KeyKey
-
7420827650 Distance sleeveDistance sleeve
-
8420980496 Belt diskBelt disk
-
9420827080 Adj.washer 0.5Adj.washer 0.5
-
9420827082 Adj.washer 0.2Adj.washer 0.2
-
10420980523 Protection washerProtection washer
-
11420866294 FanFan
-
12420945756 Spring washerSpring washer
-
13420942285 NutNut
-
14420975900 Fan coverFan cover
-
15420841971 Screw 5.5 x 16Screw 5.5 x 16
-
16420980550 V-beltV-belt
-
17420945751 Spring washerSpring washer
-
18420440642 Torx-screw M6 x 30Torx-screw M6 x 30
-
19420811392 Lower cowl (exhaust)Lower cowl (exhaust)
-
20420811830 Lower cowlLower cowl
-
21420640321 Taptite screw M6 x 16Taptite screw M6 x 16
-
22417300005 Sping nutSping nut
-
23420811820 Upper caseUpper case
-
24420827817 Cup washerCup washer
-
25420960865 Rubber washerRubber washer
-
26420227935 WasherWasher
-
27420945752 Lock washerLock washer
-
28420440852 Screw M8 x 16Screw M8 x 16
-
29420926180 WasherWasher
-
30417300006 Selftapping screwSelftapping screw
-
31420860945 Wire clampWire clamp
-
32420841555 Taptite screw M5 x 20Taptite screw M5 x 20
-
33509000218 Inlet ductInlet duct
-
34243141640 Plastite-screw M4.8 x 16Plastite-screw M4.8 x 16
-
355247489 Outlet DuctOutlet Duct
-
365247592 SealSeal
-
3740177 Screw B4,8 x 16Screw B4,8 x 16
