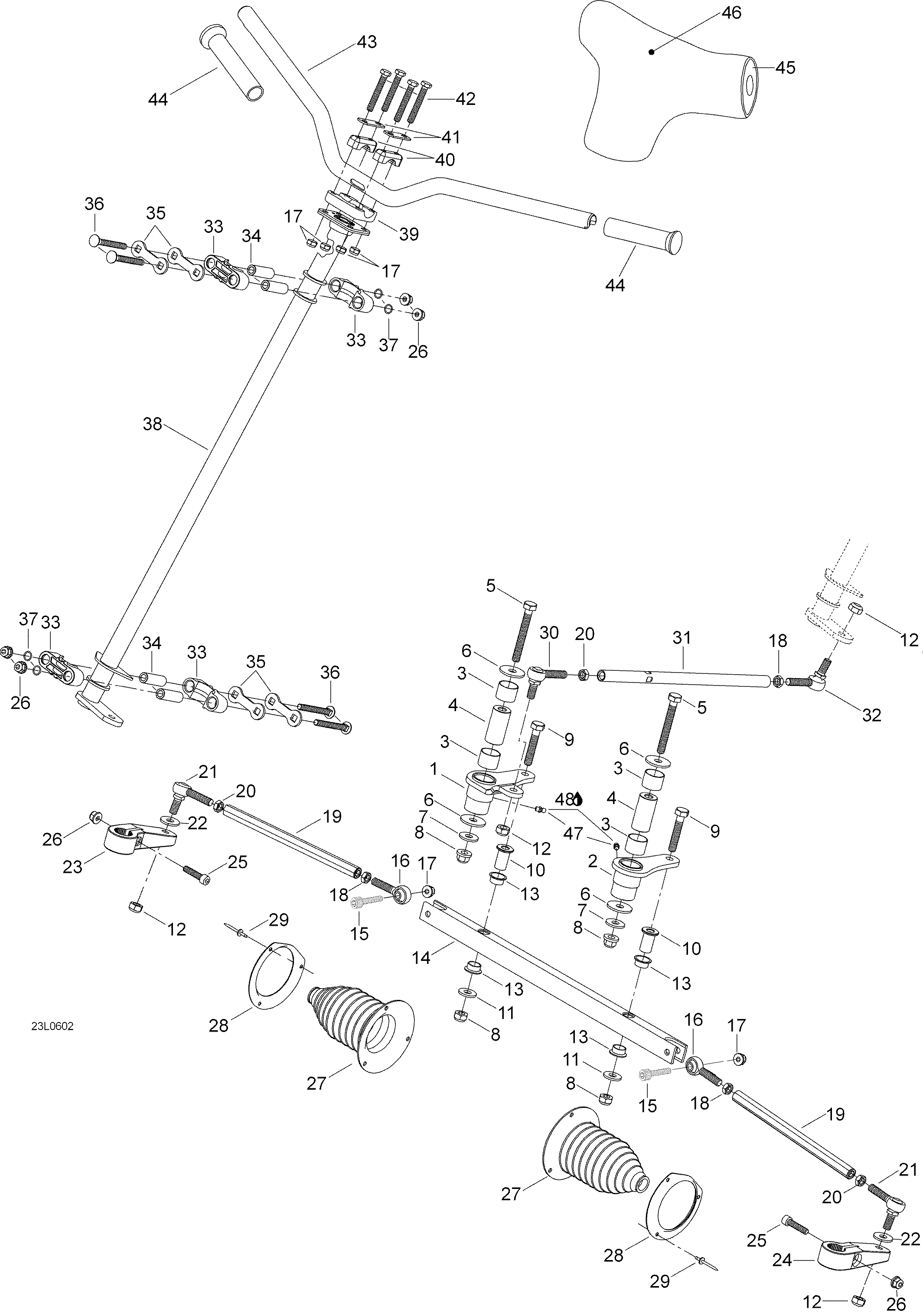

07- Steering System для BRP Lynx Ranger 550 - 2006
-
№АртикулНазвание
-
1506151506 R.H. swivel armR.H. swivel arm
-
2506151623 L.H. swivel armL.H. swivel arm
-
3506149900 Swivel bushingSwivel bushing
-
4506150100 Swivel-pivotSwivel-pivot
-
540229 Hex. screw M10 x 80Hex. screw M10 x 80
-
620080 WasherWasher
-
720101 Washer, hardened M10Washer, hardened M10
-
833012 Elastic stop nut M10Elastic stop nut M10
-
940018 Hex. screw M10 x 55Hex. screw M10 x 55
-
10506147300 CushionCushion
-
1120028 WasherWasher
-
1233023 Nut elastic M10Nut elastic M10
-
13506150200 Swivel-bushingSwivel-bushing
-
14605348756 Bar-swivelBar-swivel
-
1540395 Allen screw M8 x 35Allen screw M8 x 35
-
16506151496 Joint ball L.H.Joint ball L.H.
-
1733011 Elastic stop nut M8Elastic stop nut M8
-
18732610011 L.H. jam nut M10L.H. jam nut M10
-
19605448812 Tie RodTie Rod
-
20732610010 R.H. jam nut M10R.H. jam nut M10
-
21506151491 R.H. Joint ballR.H. Joint ball
-
2220105 Washer hardened M10Washer hardened M10
-
23506145800 R.H. steering armR.H. steering arm
-
24506145900 L.H. steering armL.H. steering arm
-
2540843 Socket head screw M8 x 35Socket head screw M8 x 35
-
2633201 Elastic flanged nut M8Elastic flanged nut M8
-
27570070500 Tie-rod capTie-rod cap
-
285347006 Retainer ringRetainer ring
-
2936009 RivetRivet
-
30506151492 Joint ball, R.H.Joint ball, R.H.
-
31506150300 Inside tie-rodInside tie-rod
-
32506151495 Joint ball L.H.Joint ball L.H.
-
33506150400 Half housingHalf housing
-
34506150500 Housing bushingHousing bushing
-
35506150600 Stopper plateStopper plate
-
36207787044 Carriage bolt M8 x 70Carriage bolt M8 x 70
-
37506151140 O-ringO-ring
-
38506147100 Main tubeMain tube
-
39277000142 Steering clampSteering clamp
-
40506151622 Steering clampSteering clamp
-
41506151196 ReinforcementReinforcement
-
4240010 Hex. screw M8 x 55Hex. screw M8 x 55
-
43605249302 Handle barHandle bar
-
445340464 GripGrip
-
45506151262 FoamFoam
-
465248010 CoverCover
-
4734011 Grease fittingGrease fitting
-
48413711500 Synthetic greaseSynthetic grease
