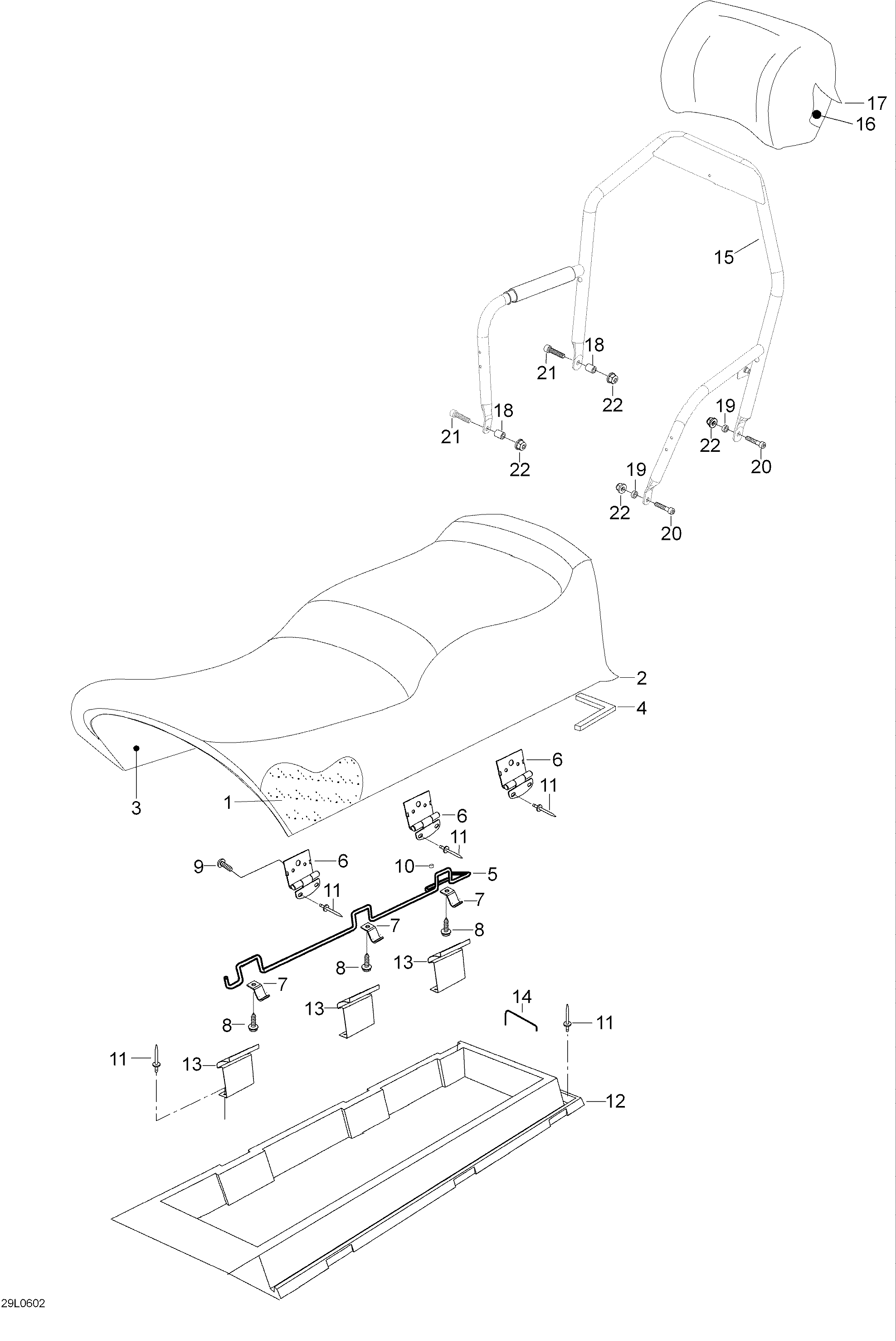

09- Seat для BRP Lynx Ranger 550 - 2006
-
№АртикулНазвание
-
1605150630 Seat foamSeat foam
-
2605153095 Seat coverSeat cover
-
35144962 Seat bottomSeat bottom
-
45440059 SealSeal
-
55245337 Locking rodLocking rod
-
65346518 HingeHinge
-
75446102 Locking plateLocking plate
-
840888 Wronic-screw 4,2 x 19Wronic-screw 4,2 x 19
-
940887 Wronic-screw 4,2 x 9,5Wronic-screw 4,2 x 9,5
-
1028019 PlugPlug
-
1136489 RivetRivet
-
12605350823 Seat boxSeat box
-
135345195 Lock camLock cam
-
145441849 Stopper hookStopper hook
-
15605250296 BackrestBackrest
-
16605349172 FoamFoam
-
17605350799 CoverCover
-
185446380 SleeveSleeve
-
195446381 SleeveSleeve
-
2040135 Socket head screw M8 x 30Socket head screw M8 x 30
-
2140286 Socket head screw M8 x 45Socket head screw M8 x 45
-
2233201 Elastic flanged nut M8Elastic flanged nut M8
