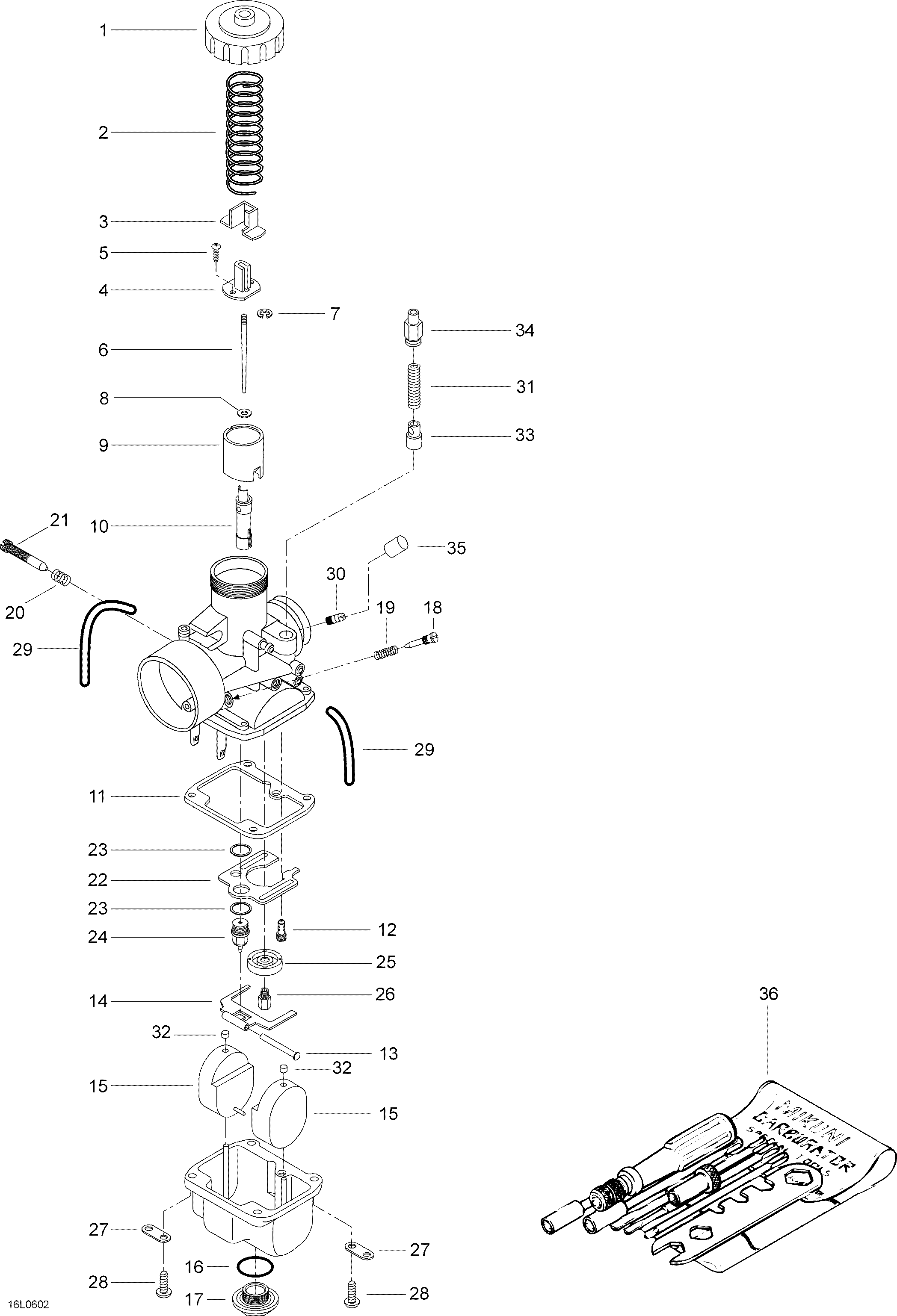

02- Carburetor для BRP Lynx Ranger 550 - 2006
-
№АртикулНазвание
-
1404103700 CoverCover
-
2404154800 Throttle vale springThrottle vale spring
-
3404122100 CoverCover
-
4404161987 PackingPacking
-
5404121300 Screw + washerScrew + washer
-
6404162032 Jet needle 6CDY1-4Jet needle 6CDY1-4
-
7404152400 E-ringE-ring
-
8404117000 O-ringO-ring
-
9404128600 Throttle valve 2.0Throttle valve 2.0
-
10404110800 Needle jet 159Q-2Needle jet 159Q-2
-
11404104200 GasketGasket
-
12404109100 Pilot jet 40Pilot jet 40
-
13404103300 Float arm pinFloat arm pin
-
14404107600 Float armFloat arm
-
15404107100 FloatFloat
-
16404107300 WasherWasher
-
17404107400 Plug screwPlug screw
-
18404149000 Air screwAir screw
-
19404139800 SpringSpring
-
20404101700 SpringSpring
-
21404125200 Throttle stop screwThrottle stop screw
-
22404109600 Baffle plateBaffle plate
-
23404101600 GasketGasket
-
24404147500 Needle valve 1,2VNeedle valve 1,2V
-
25404110900 Baffle ringBaffle ring
-
26404119400 Main jet 195Main jet 195
-
27404103000 Tube retainer plateTube retainer plate
-
28404102000 Screw + lock washerScrew + lock washer
-
29404161851 Vent tubeVent tube
-
30404153400 NippleNipple
-
31404127400 SpringSpring
-
32404105800 CapCap
-
33404161986 Plunger assyPlunger assy
-
34404161100 Support guideSupport guide
-
35404156600 CapCap
-
36404112000 Tool kitTool kit
