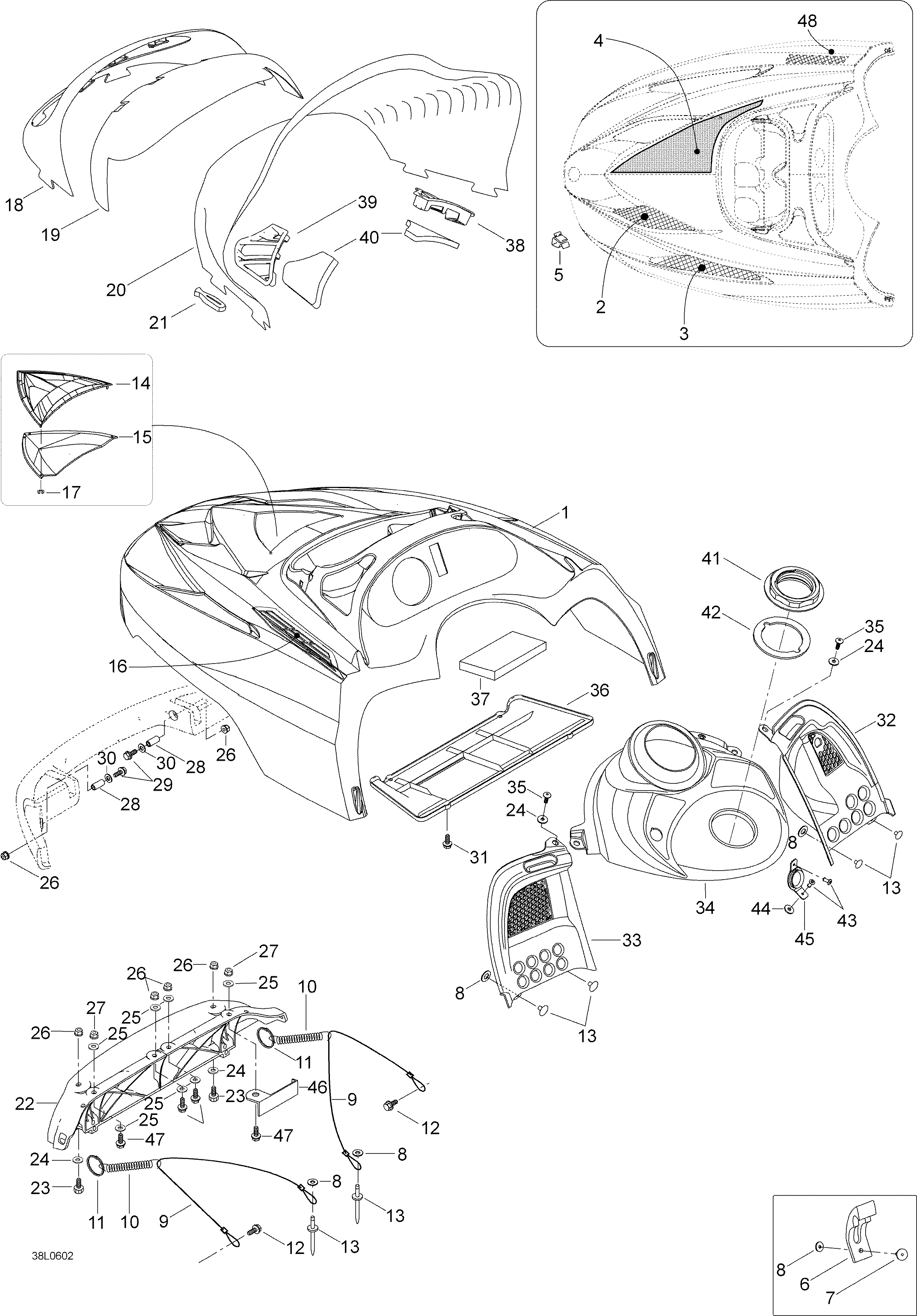

09- Hood для BRP Lynx Ranger 550 - 2006
-
№АртикулНазвание
-
1605152628 Hood, pre ass'y, Velvet Blue. Includes 1 to 3Hood, pre ass'y, Velvet Blue. Includes 1 to 3
-
25346887 L.H. Front grillL.H. Front grill
-
25346888 R.H. Front grillR.H. Front grill
-
35346889 L.H. Rear grillL.H. Rear grill
-
35346890 R.H. Rear grillR.H. Rear grill
-
4414631900 Heat protectorHeat protector
-
5517302785 ClampClamp
-
6570027100 LatchLatch
-
736037 RivetRivet
-
820008 Washer A5,3Washer A5,3
-
9549882 Retainer cableRetainer cable
-
10415043300 SpringSpring
-
11415058300 RingRing
-
1240177 Screw B4,8 x 16Screw B4,8 x 16
-
1336036 RivetRivet
-
145247486 Grill, middleGrill, middle
-
155247487 Inlet ductInlet duct
-
165247488 Side grillSide grill
-
1741034 CirclipCirclip
-
18517302158 Moulding Head LampMoulding Head Lamp
-
19517302003 Windshield supportWindshield support
-
20605151153 Windshield, extra highWindshield, extra high
-
21570023800 LatchLatch
-
22517302631 Hinge halfHinge half
-
2340381 Socket head screw M6 x 20Socket head screw M6 x 20
-
2420117 WasherWasher
-
2520009 Washer A6,4Washer A6,4
-
2633200 Elastic flanged nut M6Elastic flanged nut M6
-
2733010 Elastic stop nut M6Elastic stop nut M6
-
28517302179 BushingBushing
-
2940003 Hex. screw M6 x 35Hex. screw M6 x 35
-
3020003 Washer A6,4Washer A6,4
-
31243141640 Screw, Plastite M4.8 x 16Screw, Plastite M4.8 x 16
-
32517302005 R.H. ConsolR.H. Consol
-
33517302006 L.H. ConsolL.H. Consol
-
34605352055 ConsolConsol
-
35732600030 ScrewScrew
-
36517302836 Air intake plateAir intake plate
-
37605350268 FilterFilter
-
38517302024 R.H. Grill-air intakeR.H. Grill-air intake
-
39517302025 L.H. Grill-air intakeL.H. Grill-air intake
-
40605450267 FilterFilter
-
41517302043 NutNut
-
425447116 GasketGasket
-
4336002 RivetRivet
-
44517302286 Rubber stopperRubber stopper
-
45517302129 Rope guideRope guide
-
465448263 R.H. Support plateR.H. Support plate
-
465448264 L.H. Support plateL.H. Support plate
-
4740030 Hex. screw M6 x 20Hex. screw M6 x 20
-
48605349179 Heat protectorHeat protector
