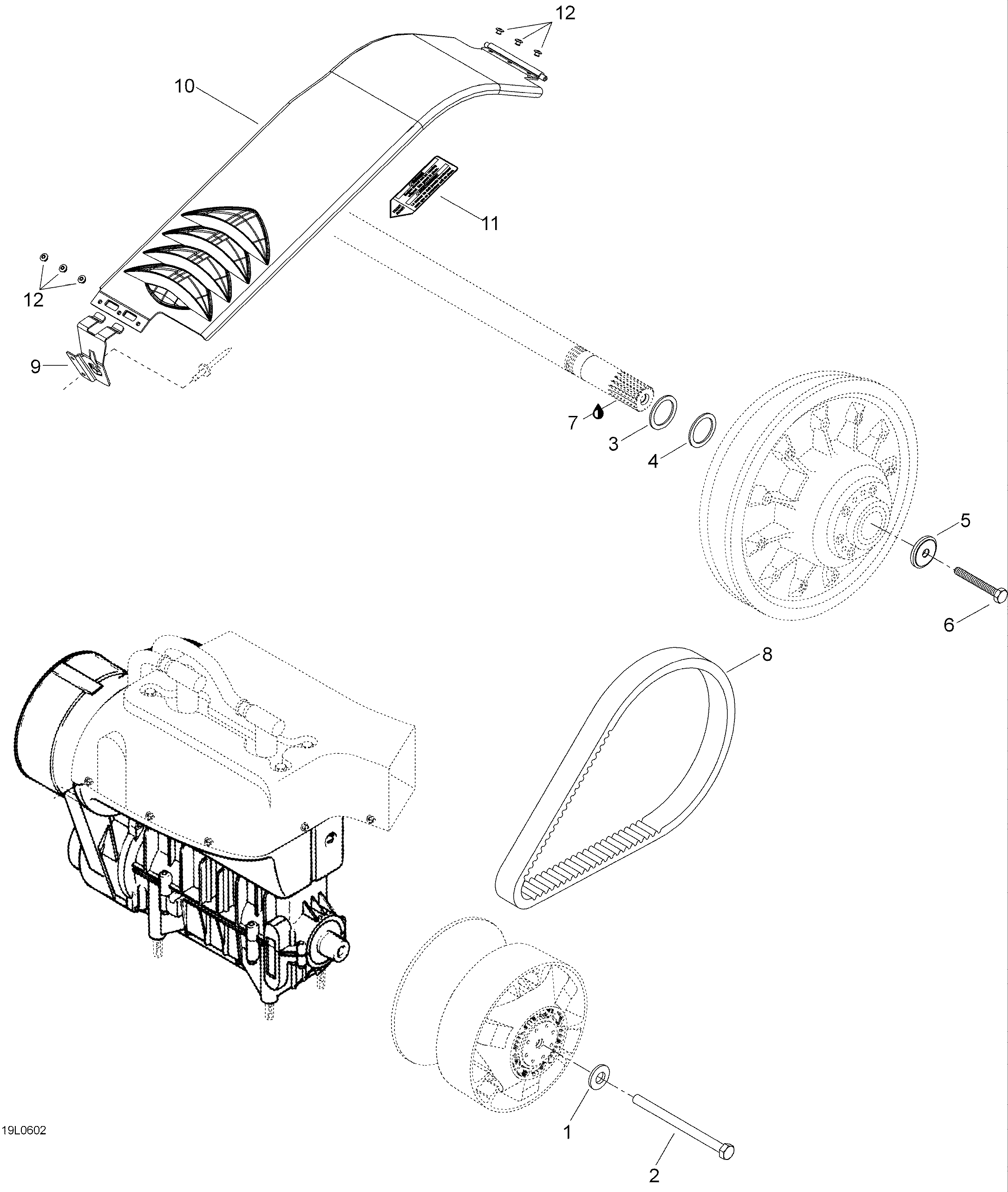

05- Pulley System для BRP Lynx Ranger 550 - 2006
-
№АртикулНазвание
-
120090 WasherWasher
-
2417113800 BoltBolt
-
3417300054 ShimShim
-
4417300055 ShimShim
-
5517302322 WasherWasher
-
640089 Hex. screw M8 x 75Hex. screw M8 x 75
-
7293800070 Loctite 767, 8ozLoctite 767, 8oz
-
8415060600 Drive beltDrive belt
-
9417300172 BracketBracket
-
10417300173 Belt quard ass'y. Includes 10 to 12Belt quard ass'y. Includes 10 to 12
-
11516001190 Warning labelWarning label
-
12390402200 RivetRivet
