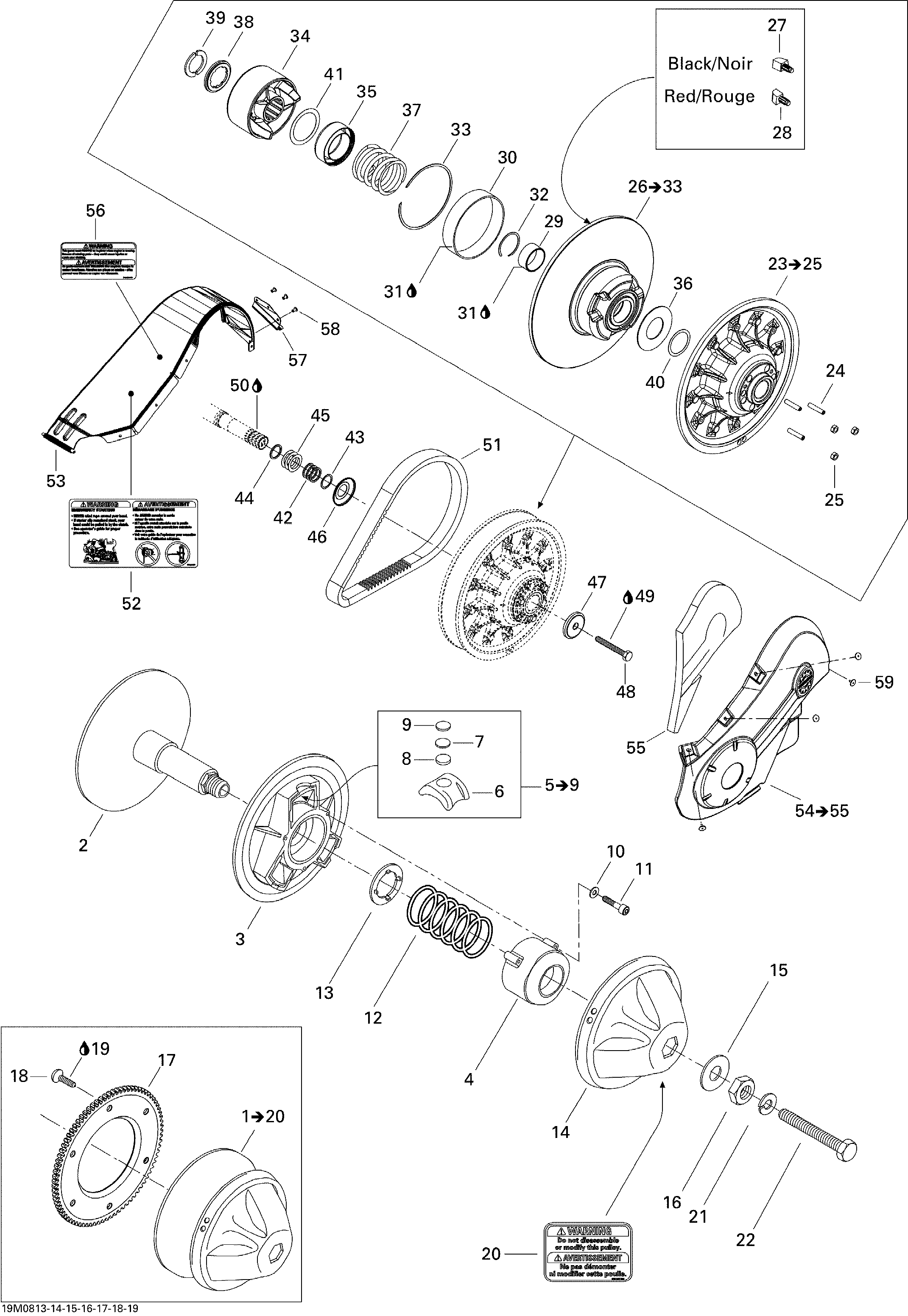

05- Pulley System для BRP Lynx Adventure LU Ranger 550 - 2008
-
№АртикулНазвание
-
2415128975 Inner FlangeInner Flange
-
3417126692 Sliding FlangeSliding Flange
-
4415128602 Spring CoverSpring Cover
-
5415129294 Unit. Includes 5 to 9Unit. Includes 5 to 9
-
10420245370 WasherWasher
-
11415128606 Socket Head Screw M6 X 35Socket Head Screw M6 X 35
-
12415129220 Spring, Violet-Yellow-GreenSpring, Violet-Yellow-Green
-
13417126694 Spring SeatSpring Seat
-
14415128609 CapCap
-
15415128610 WasherWasher
-
16417118300 NutNut
-
17417222833 Ring GearRing Gear
-
18236281684 Hex. Screw M8 X 16Hex. Screw M8 X 16
-
19293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
20516001726 Security LabelSecurity Label
-
21392002800 Lock Spring WasherLock Spring Washer
-
22417113800 BoltBolt
-
23417127024 Fixed Flanged Ass'y. Includes 23 to 25Fixed Flanged Ass'y. Includes 23 to 25
-
24206262599 Socket Set ScrewSocket Set Screw
-
25233061414 Hex. Flanged Nut M6Hex. Flanged Nut M6
-
26417127026 Sliding Flange Ass'y. Includes 26 to 33Sliding Flange Ass'y. Includes 26 to 33
-
27417126373 Rear Cam Slider Shoe, RedRear Cam Slider Shoe, Red
-
28417126374 Front Cam Slider Shoe, BlackFront Cam Slider Shoe, Black
-
29417126901 BushingBushing
-
30417126902 BushingBushing
-
31413408300 Loctite, Black Max, 3 mlLoctite, Black Max, 3 ml
-
32371911200 CirclipCirclip
-
33417126878 CirclipCirclip
-
34417126574 Cam Ass'yCam Ass'y
-
35417126381 GuardGuard
-
36504099600 Stopper WasherStopper Washer
-
37417127061 SpringSpring
-
38417126733 SpacerSpacer
-
39417126734 Half KeyHalf Key
-
40504112300 ShimShim
-
41417126322 Swivel AbutmentSwivel Abutment
-
42417300252 SpacerSpacer
-
43417300265 SpacerSpacer
-
44417300252 SpacerSpacer
-
45504112000 ShimShim
-
46417300238 ProtectorProtector
-
47517302322 Strength WasherStrength Washer
-
48207087544 Hex. Screw M8 X 75Hex. Screw M8 X 75
-
49293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
50293800070 Loctite 767, Antiseize Lubricant, 8 OzLoctite 767, Antiseize Lubricant, 8 Oz
-
51415060600 Drive BeltDrive Belt
-
52516002674 Emergency Starting LabelEmergency Starting Label
-
53417300269 Belt GuardBelt Guard
-
54417300301 Side Protector Ass'y. Includes 54 to 55Side Protector Ass'y. Includes 54 to 55
-
55417300246 FoamFoam
-
56516002670 Security Label, Belt GuardSecurity Label, Belt Guard
-
57417300216 Belt Guard BracketBelt Guard Bracket
-
58390909200 Avex RivetAvex Rivet
-
59293150103 Pop RivetPop Rivet
