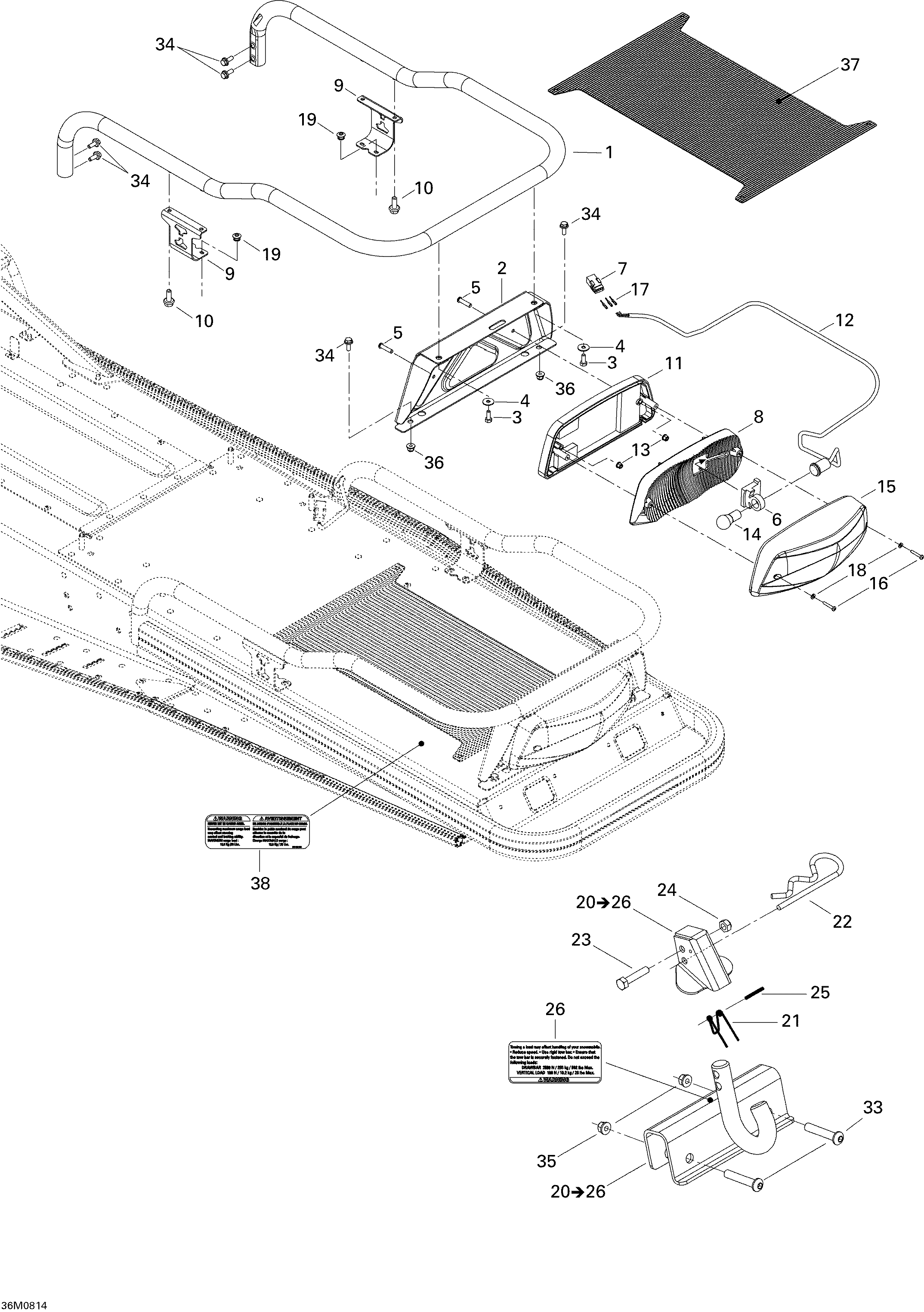

09- Luggage Rack для BRP Lynx Adventure LU Ranger 550 - 2008
-
№АртикулНазвание
-
1511000567 Luggage RackLuggage Rack
-
2511000187 Rear Light SupportRear Light Support
-
3207161644 Hex. Screw M6 X 16Hex. Screw M6 X 16
-
4391302000 Flat WasherFlat Washer
-
5205452560 Socket Screw M5 X 25Socket Screw M5 X 25
-
6511000431 Bulb SupportBulb Support
-
7515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
8510004442 ReflectorReflector
-
9511000517 RenfortRenfort
-
10207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
11515176272 Rear Light HousingRear Light Housing
-
12511000494 Bulb SocketBulb Socket
-
13233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
14410504100 Tail Light BulbTail Light Bulb
-
15511000315 LensLens
-
16209632580 Phillips Tapping Screw 3.9 X 25Phillips Tapping Screw 3.9 X 25
-
17515175232 Male TerminalMale Terminal
-
18414516400 WasherWasher
-
19390909200 Avex RivetAvex Rivet
-
20511000509 Hitch Ass'y. Includes 20 to 26Hitch Ass'y. Includes 20 to 26
-
21517152800 SpringSpring
-
22114045200 Hair PinHair Pin
-
23207063544 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
24232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
25732804000 Spring Pin M3 X 24Spring Pin M3 X 24
-
26516003037 Security LabelSecurity Label
-
33205484546 Socket Head Screw M8 X 45Socket Head Screw M8 X 45
-
34207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
35233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
36233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
37511000496 CarpetCarpet
-
38516003039 Maximum Cargo Load LabelMaximum Cargo Load Label
