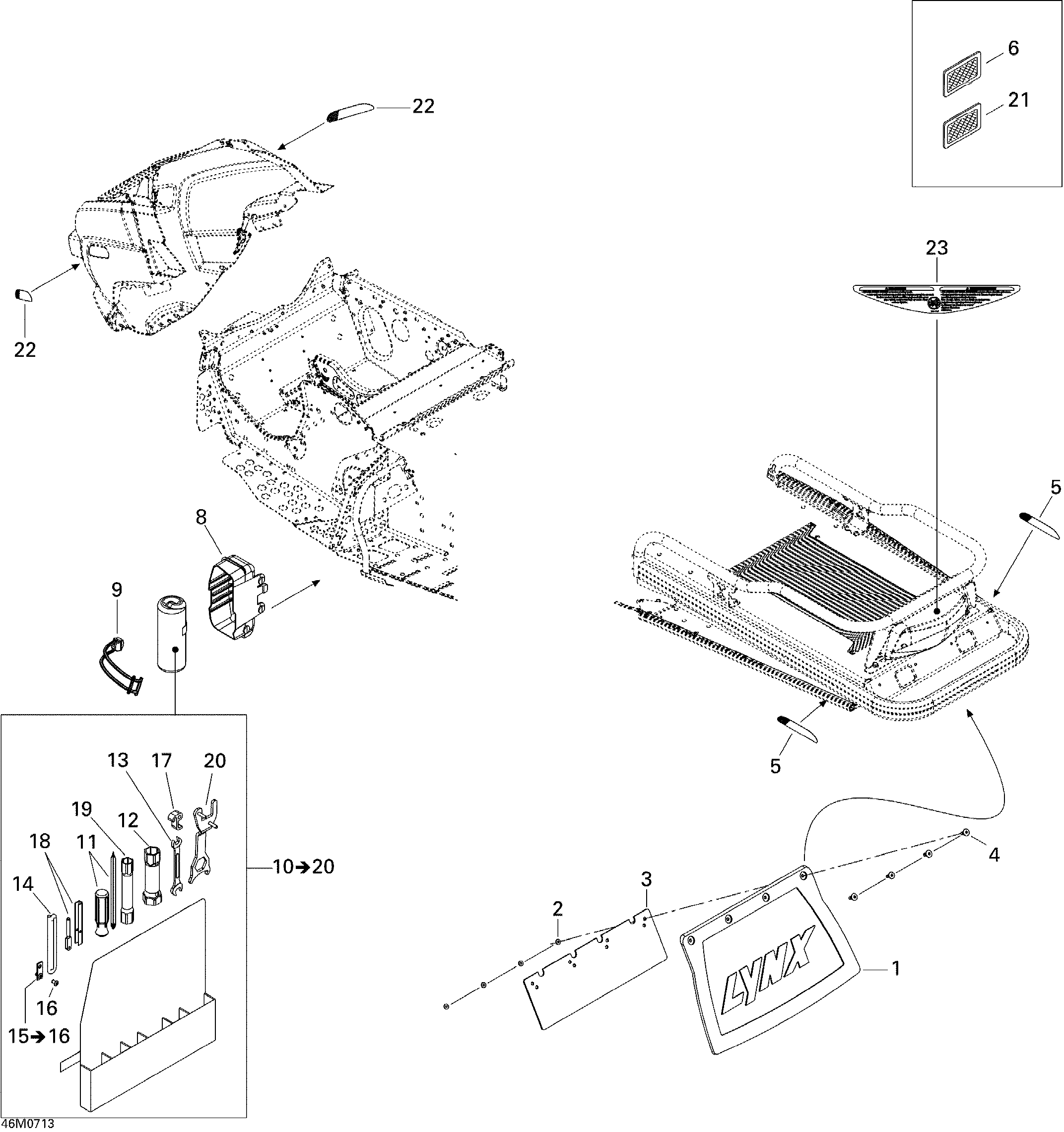

09- Utilities для BRP Lynx Adventure LU Ranger 550 - 2008
-
№АртикулНазвание
-
1520000600 Snow GuardSnow Guard
-
2517225900 Flat WasherFlat Washer
-
3572108200 ReinforcementReinforcement
-
4293150100 Pop Rivet 3/16''Pop Rivet 3/16''
-
5520000525 ReflectorReflector
-
6520000271 Reflector, AmberReflector, Amber
-
8520000322 TrunkTrunk
-
9520000528 LatchLatch
-
10529000036 Tool Kit. Includes 10 to 20Tool Kit. Includes 10 to 20
-
11529000004 Driver ScrewDriver Screw
-
12529014800 Socket Wrench 21/26 mmSocket Wrench 21/26 mm
-
13529000002 Fork Wrench 10/13 mmFork Wrench 10/13 mm
-
14412500200 Starter Rope 2200 mm, MeterStarter Rope 2200 mm, Meter
-
15529024400 Rope Adaptor. Includes 15 to 16Rope Adaptor. Includes 15 to 16
-
16390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
17529019400 Starter GripStarter Grip
-
18529035501 Spacing ToolSpacing Tool
-
19295000175 Socket Wrench 16/18 mmSocket Wrench 16/18 mm
-
20520000721 WrenchWrench
-
21415037900 Reflector, WhiteReflector, White
-
22520000525 ReflectorReflector
-
23520000611 Security LabelSecurity Label
