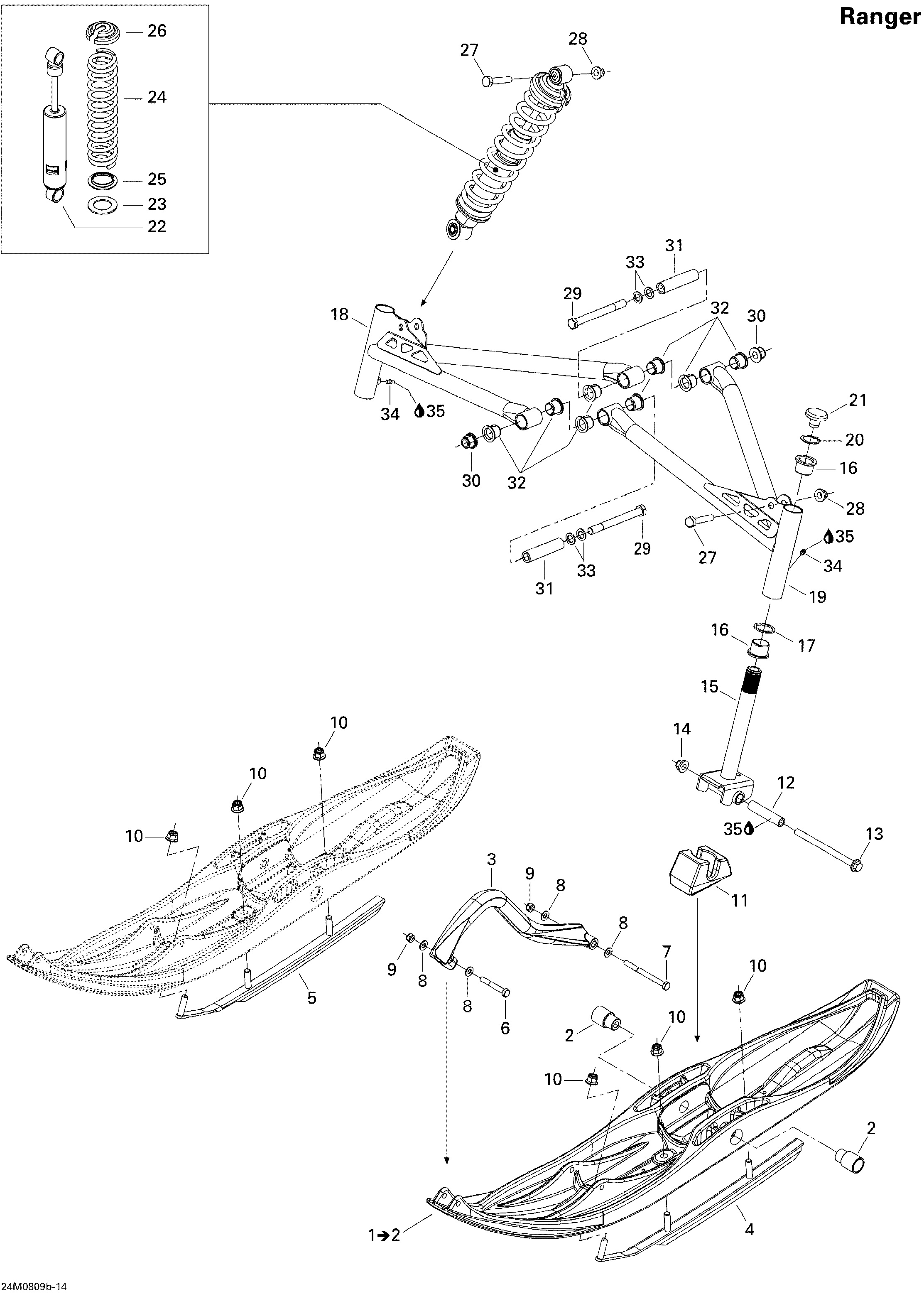

07- Front Suspension And Ski для BRP Lynx Adventure LU Ranger 550 - 2008
-
№АртикулНазвание
-
1605153775 Plastic Ski Ass'y. Includes 1 to 2Plastic Ski Ass'y. Includes 1 to 2
-
2605348392 BushingBushing
-
3505070963 Handle, BlackHandle, Black
-
4605253714 LH Carbide Ski RunnerLH Carbide Ski Runner
-
5605253715 RH Carbide Ski RunnerRH Carbide Ski Runner
-
6207085044 Hex. Screw M8 X 50Hex. Screw M8 X 50
-
7207089044 Hex. Screw M8 X 90Hex. Screw M8 X 90
-
8234081410 Flat Washer 8 mmFlat Washer 8 mm
-
9232581414 Hex. Elastic Nut M8Hex. Elastic Nut M8
-
10233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
11605348458 Ski StopperSki Stopper
-
12506133300 SpacerSpacer
-
13230604046 Hex. Flanged Screw M10 x 140Hex. Flanged Screw M10 x 140
-
14233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
15505072001 Ski LegSki Leg
-
16505070003 CushionCushion
-
17505070004 WasherWasher
-
18505072193 RH Lower ArmRH Lower Arm
-
19505072194 LH Lower ArmLH Lower Arm
-
20371910400 CirclipCirclip
-
21572091300 CapCap
-
22505072190 Front ShockFront Shock
-
23503184400 WasherWasher
-
24505072219 SpringSpring
-
25505071954 Spring GuideSpring Guide
-
26503140600 Spring StopperSpring Stopper
-
27207005544 Hex. Screw M10 X 55Hex. Screw M10 X 55
-
28233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
29230022044 Hex. Screw M12 X 120Hex. Screw M12 X 120
-
30233221414 Hex. Flanged Elastic Nut M12Hex. Flanged Elastic Nut M12
-
31505071366 BushingBushing
-
32505072094 BushingBushing
-
33503189276 WasherWasher
-
34408200700 Grease FittingGrease Fitting
-
35219700417 Synthetic Grease, 400 gSynthetic Grease, 400 g
