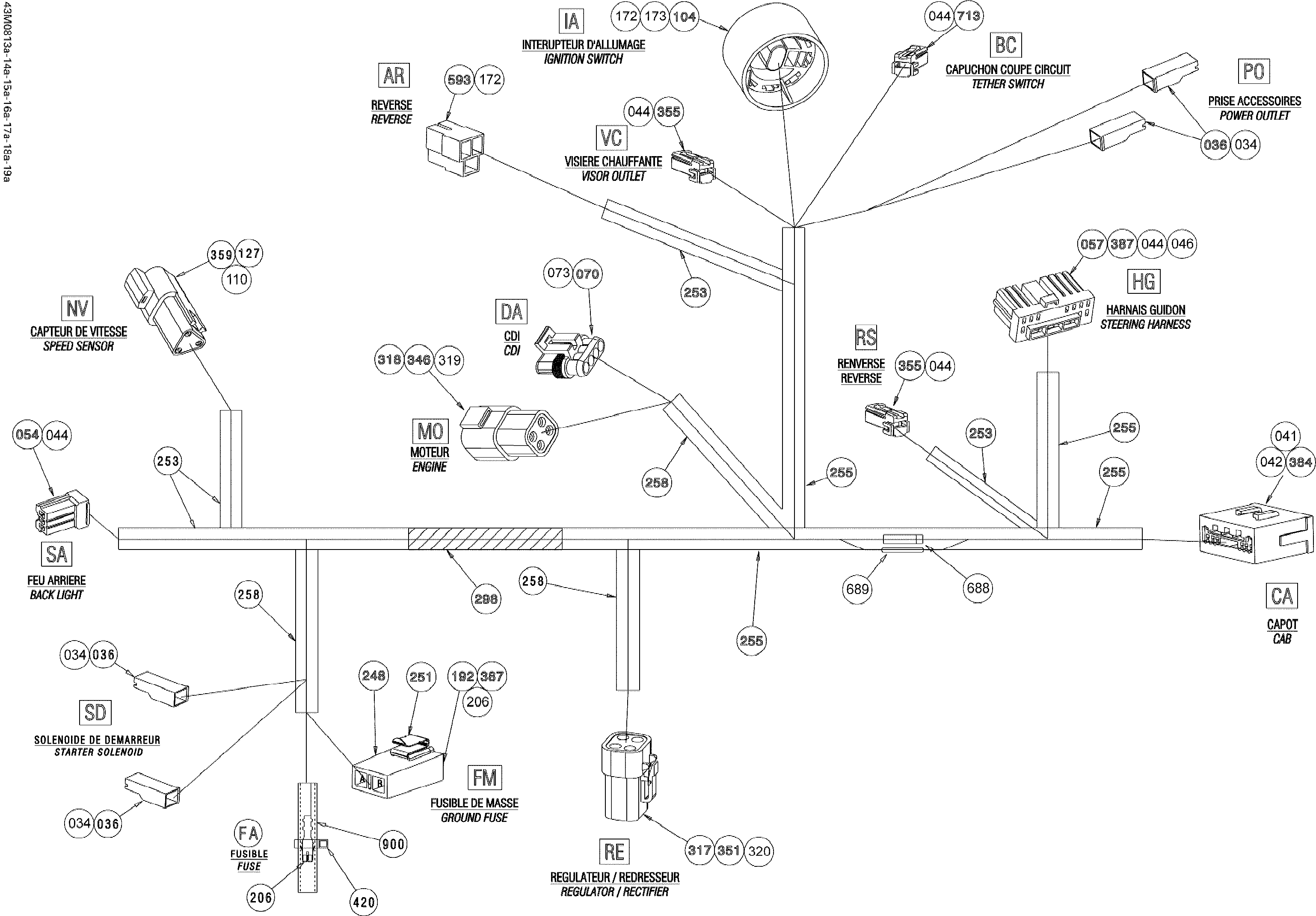

10- Electrical Harness для BRP Lynx Adventure LU Ranger 550 - 2008
-
№АртикулНазвание
-
1515176360 Frame Harness. Includes 1 to 900Frame Harness. Includes 1 to 900
-
34409010100 Female TerminalFemale Terminal
-
36409010400 Female Terminal Housing, 1 CircuitFemale Terminal Housing, 1 Circuit
-
41515175232 Male TerminalMale Terminal
-
42515175273 Male TerminalMale Terminal
-
44515175231 Female TerminalFemale Terminal
-
46515175282 Female TerminalFemale Terminal
-
54515175495 Female Housing, 3 CircuitsFemale Housing, 3 Circuits
-
57515175350 Female Terminal Housing, 13 CircuitsFemale Terminal Housing, 13 Circuits
-
70409209700 Female Housing, 4 CircuitsFemale Housing, 4 Circuits
-
73278001013 Wire SealWire Seal
-
104572150700 Female Terminal Housing, 9 CircuitsFemale Terminal Housing, 9 Circuits
-
110278000631 Male TerminalMale Terminal
-
127409207600 Male Lock, 3 CircuitsMale Lock, 3 Circuits
-
172561503100 Female TerminalFemale Terminal
-
173561503100 Female TerminalFemale Terminal
-
192409003900 Fuse, 20 AmperesFuse, 20 Amperes
-
206409004200 Female TerminalFemale Terminal
-
248409004000 Fuse HolderFuse Holder
-
251409014200 ClipClip
-
253515175442 Tubing 6 mmTubing 6 mm
-
255409901800 Tubing 13 mmTubing 13 mm
-
258415079900 Tubing 10 mmTubing 10 mm
-
298293740005 Vinyl Tape 3/4'', BlackVinyl Tape 3/4'', Black
-
317278001473 Female Terminal Housing, 4 CircuitsFemale Terminal Housing, 4 Circuits
-
318278001477 Female Housing, 4 CircuitsFemale Housing, 4 Circuits
-
319515175568 Male TerminalMale Terminal
-
320515175567 Female TerminalFemale Terminal
-
346278001478 Male Wedge, 4 CircuitsMale Wedge, 4 Circuits
-
351278001474 Female Lock, 4 CircuitsFemale Lock, 4 Circuits
-
355515175658 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
359515175666 Male HousingMale Housing
-
384515175720 Male Terminal Housing, 11 CircuitsMale Terminal Housing, 11 Circuits
-
387293550004 Dielectric Grease, 150 GDielectric Grease, 150 G
-
420414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
593515176069 Male Terminal Housing, 3 CircuitsMale Terminal Housing, 3 Circuits
-
688515176279 CapacitorCapacitor
-
689515176280 ResistanceResistance
-
713515176296 Female Terminal Housing, 2 CircuitsFemale Terminal Housing, 2 Circuits
-
900415079200 HoseHose
