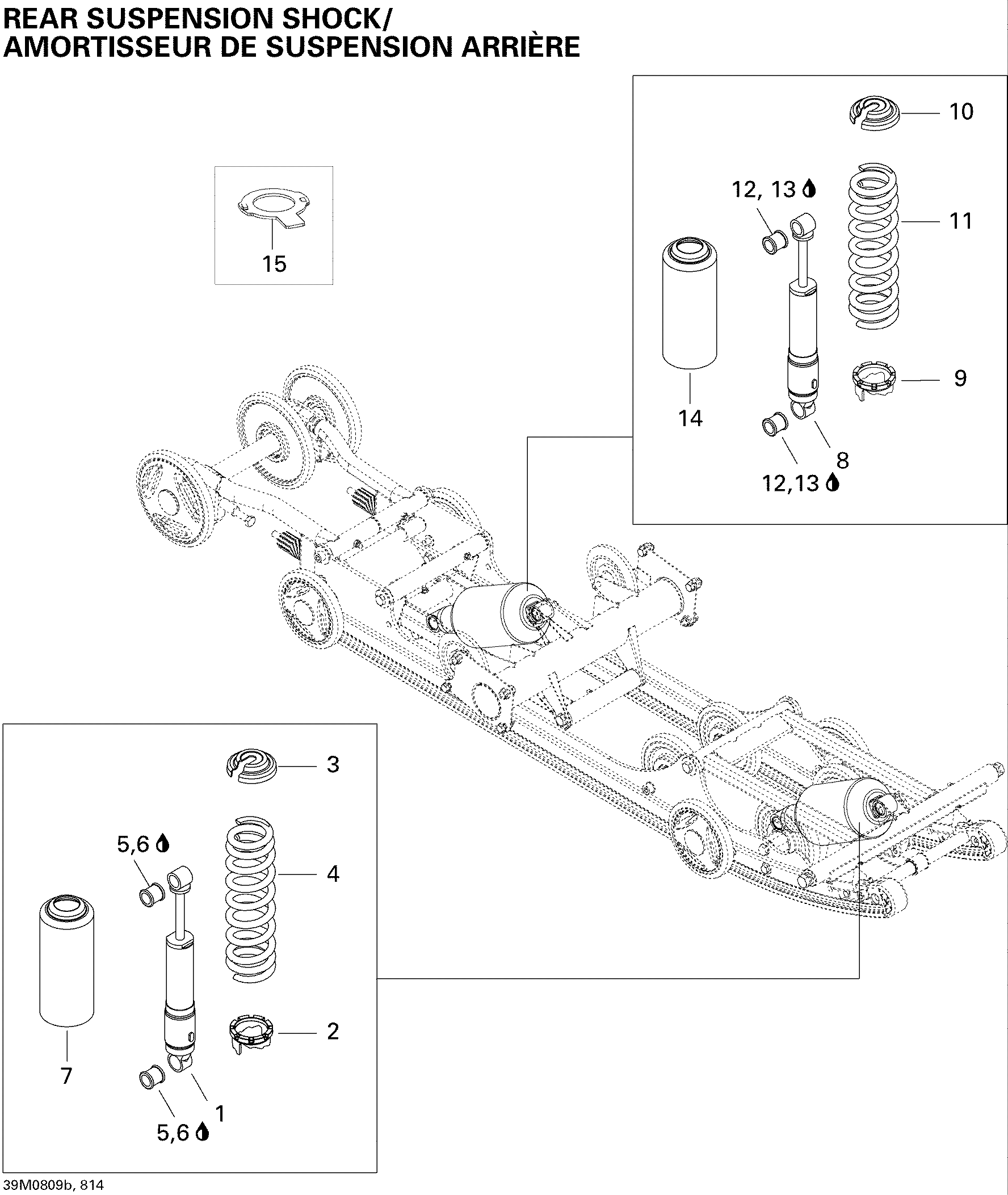

08- Rear Suspension Shocks V-156 для BRP Lynx Adventure LU Ranger 550 - 2008
-
№АртикулНазвание
-
1605623015 Front Shock Ass'yFront Shock Ass'y
-
2M230078 CamCam
-
3M230076 Spring StopperSpring Stopper
-
4605625007 Center SpringCenter Spring
-
5M31094 SleeveSleeve
-
6M32161 Glue Loctite 641/ 50mlGlue Loctite 641/ 50ml
-
7M5346754 Shock ProtectorShock Protector
-
8605623016 Rear Shock Ass'yRear Shock Ass'y
-
9M230078 CamCam
-
10M230076 Spring StopperSpring Stopper
-
11605625008 Rear SpringRear Spring
-
12M31094 SleeveSleeve
-
13M32161 Glue Loctite 641/ 50mlGlue Loctite 641/ 50ml
-
14605348748 Arm Adjusting Ass'yArm Adjusting Ass'y
-
15M5346754 Shock ProtectorShock Protector
