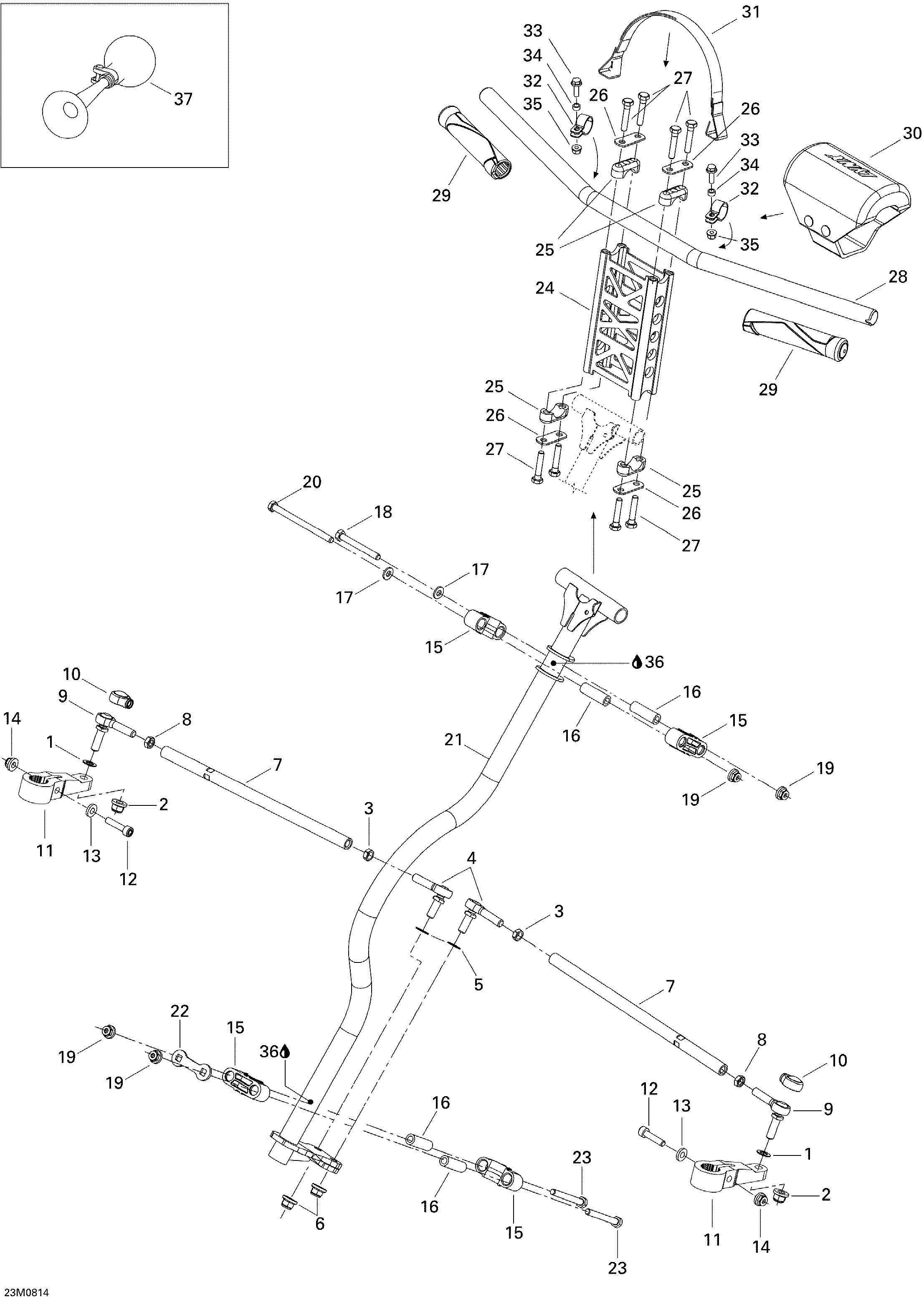

07- Steering для BRP Lynx Adventure LU Ranger 550 - 2008
-
№АртикулНазвание
-
1503175800 WasherWasher
-
2250100088 Hex. Elastic Hex. Nut M10Hex. Elastic Hex. Nut M10
-
3250100016 LH Hex. Jam Nut M10LH Hex. Jam Nut M10
-
4506151845 LH Joint BallLH Joint Ball
-
5503175800 WasherWasher
-
6250100088 Hex. Elastic Hex. Nut M10Hex. Elastic Hex. Nut M10
-
7506151556 Tie RodTie Rod
-
8732610010 RH Hex. Jam Nut M10RH Hex. Jam Nut M10
-
9506152212 Ball JointBall Joint
-
10506151650 Protection CapProtection Cap
-
11506152030 Swivel ArmSwivel Arm
-
12207084544 Hex. Screw M8 X 45Hex. Screw M8 X 45
-
13234081410 Flat Washer 8 mmFlat Washer 8 mm
-
14233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
15506150400 Housing HalfHousing Half
-
16506150500 Housing BushingHousing Bushing
-
17503189157 WasherWasher
-
18207087044 Hex. Screw M8 X 70Hex. Screw M8 X 70
-
19233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
20230081044 Hex. Screw M8 X 110Hex. Screw M8 X 110
-
21506152074 Steering Main TubeSteering Main Tube
-
22506150600 Stopper PlateStopper Plate
-
23207087044 Hex. Screw M8 X 70Hex. Screw M8 X 70
-
24506152107 ExtensionExtension
-
25506151622 Steering SupportSteering Support
-
26506151196 ReinforcementReinforcement
-
27250000074 Hex. Screw With Nylon M8 X 40Hex. Screw With Nylon M8 X 40
-
28506152203 Handle BarHandle Bar
-
29506152211 Handle GripHandle Grip
-
30506152299 Steering Padding Ass'ySteering Padding Ass'y
-
31506152115 Strap Ass'yStrap Ass'y
-
32506151792 Support Plate, BlackSupport Plate, Black
-
33207662084 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
34506152156 BushingBushing
-
35233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
36219700417 Synthetic Grease, 400 gSynthetic Grease, 400 g
-
37549011291 Horn. EuropeHorn. Europe
